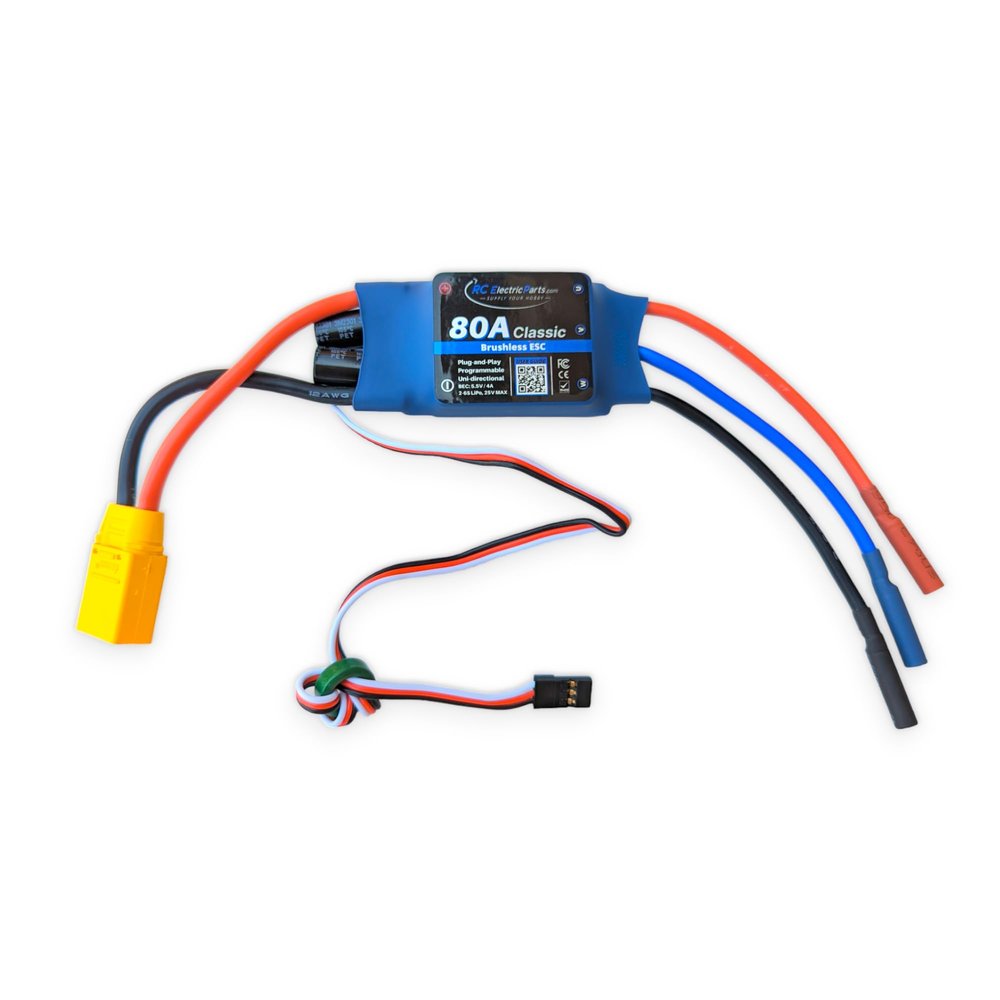

80A RC Electric Speed Controller ESC for Brushless Motors 5.5v 4A UBEC with XT90 & 4.0mm Bullet Plugs

Description

• Comes Pre-soldered with XT90 Connector and 4.0mm bullet plugs
• 5.5v/4A UBEC (Very Efficient)- ESC can power receiver and servos
• LiPo 2 - 6s (Cells), NiCd/NiMH: 5 - 18 Cells, 6.4v - 25.2v
• Low Battery Protection, Overheat Protection, Startup Throttle Protection, Signal Loss Protection, and Abnormal Voltage Protection
• Programmable - Programming card or using Transmitter

The RC Electric Parts 80A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn't run hot like other ESCs! The ESC comes pre-soldered with 4.0mm Bullet Plugs and an XT90 Plug, eliminating the need for you to solder your own plugs on! The ESC can be programmed via the transmitter as explained in the instructions or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it'll properly program the ESC. Benefits: Programmable either using a programming card or transmitter Super smooth and accurate linear throttle adjustment Supports high RPM motors. Utilizes smaller MOSFETs to minimize weight. Minimal heat loss Specs: Continuous Output: 80A Bursts Output: 100A for 15 seconds UBEC: 5.5V/4A Lipo Battery: 2 - 6s (cells) NiCd/NiMH: 5 - 18 cells Voltage Input: 6.4v - 25.5v Size: 66mm x 35mm x 18mm Weight: 90g Motor Type: Brushless Motor Max RPM: 240,000 rpm for a 2 pole, 80,000 rpm for a 6 pole, or 40,000 rpm for a 12 pole brushless motor ESC Manual Link https://www.rcelectricparts.com/esc-user-guide.html
