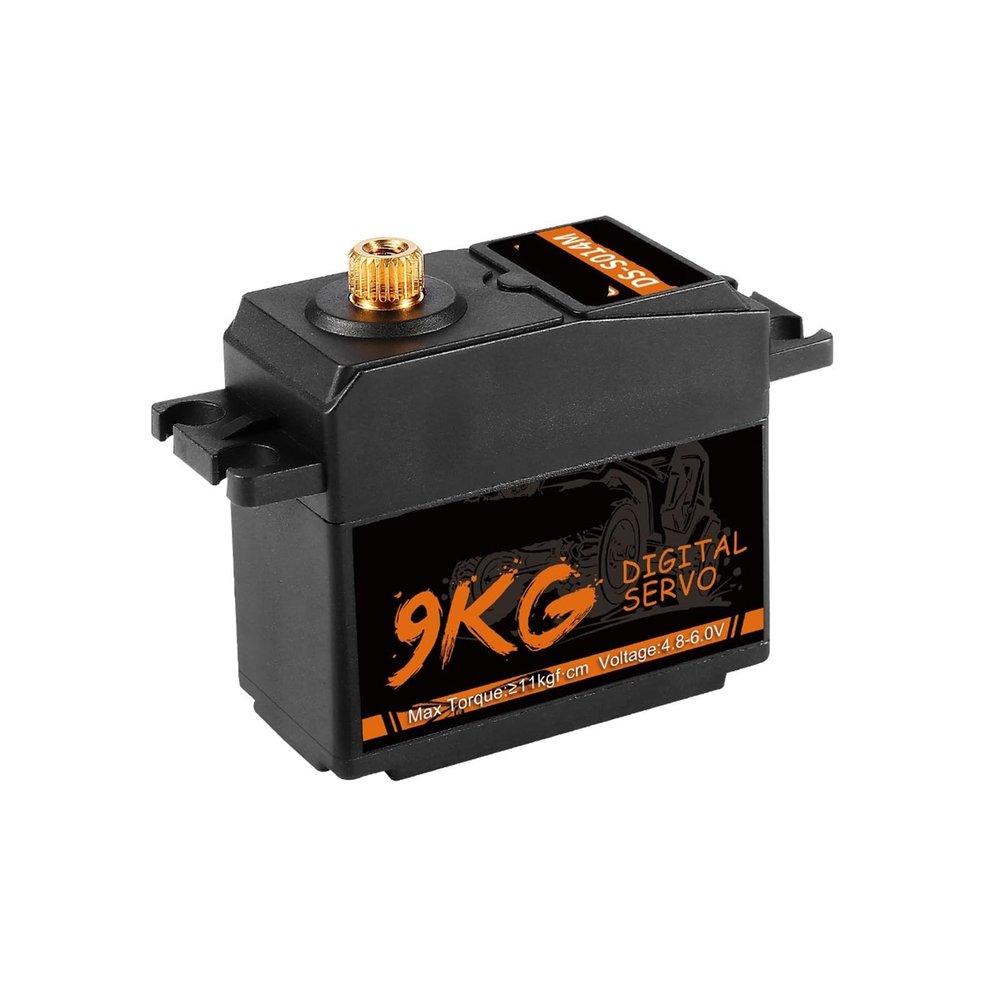

9KG Digital Servo Metal Gear Waterproof Servo Suitable for 1/8 1/10 104001 TRX4 SCX10 Yk4102 Mn99s Mn86 12428

Description

• Servo Gears

Servo Gears
High performance digital standard
Low noise, long life
Small size, high torque

Specification:
Product Name: S014M
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V9.0kgf.cm ; 6.0V11kgf.cm
No-load speed: 4.8V0.29s/60; 6.0V0.26s/60
Stalled rotor current: 4.8V 1800mA; 6.0V 2100mA
Current consumption* (no load): 4.8V 180mA; 6.0V 200mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 6us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 52 g
Dimensions: 49.520.236.64mm
Cable length: JR 250MM5mm
Package Included:
1 * 9KG digital servo
1 * Servo Arm Accessories
