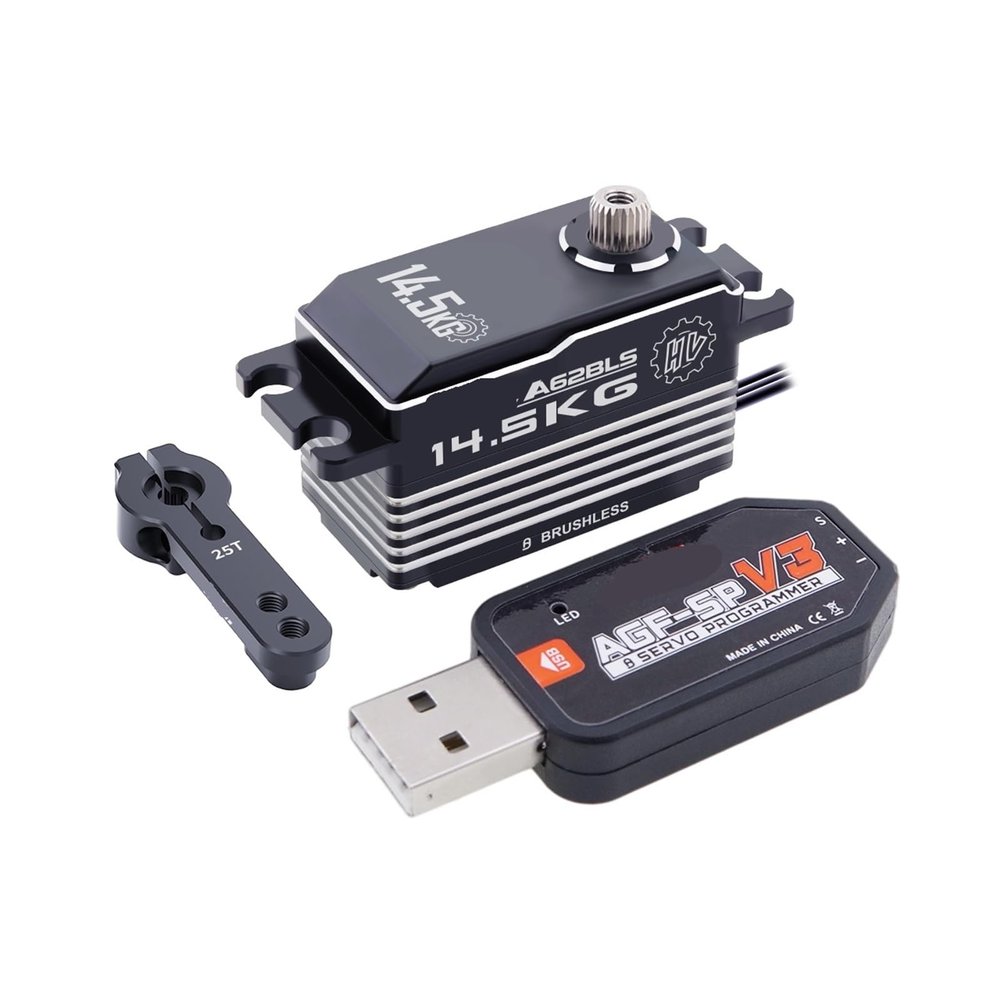

A62BLS Radiator Housing 0.062 sec Ultra High Speed 14.5 kg Short Range Programmable Brushless Digital Servo(A62BLS 14.5kg Set)

Description

• Servo Gears

Servo Gears
Specification
ProductA62BLS
Operating voltage: 4.8-8.4 V
Operation speed: 0.074 sec/60@6.0V
Operation speed: 0.068 sec/60@7.4V
Operation speed: 0.062 sec/60@8.4V
Stall Torque: 12.0 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 13.5 kg-cm (187 oz-in) @ 7.4V
Stall Torque: 14.5 kg-cm (201 oz-in) @ 8.4V
Equipment: Steel
Motor: BLS
Dimensions: 40.8*20.2*26.5 mm (1.60 x 0.79 x 1.04 in)
Weight: 57.2 g
Connecting wire: JR 180 mm
Product Name: A62CLS
Operating voltage: 4.8-8.4 V
Working speed: 0.105 seconds/60@4.8V
Operation speed: 0.093 seconds/60@6.0V
Working speed: 0.082 seconds/60@7.4V
Working speed: 0.074 seconds/60@8.4V
Stall Torque: 10 kg-cm (139 oz-in) @ 4.8V
Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 13 kg-cm (180 oz-in) @ 7.4V
Stall Torque: 14 kg-cm (194 oz-in) @ 8.4V
Gear: Stainless steel
Engine: CLS
Dimensions: 40.8*20.2*26.5 mm (1.60 x 0.79 x 1.04 in)
Weight: 57.5 g
Connection wire: TYU 200mm 22AWG
Product number: A62BHM
Operating voltage: 4.8-8.4 V
Operation speed: 0.085 sec/60@6.0V
Operation speed: 0.075 sec/60@7.4V
Operation speed: 0.068 sec/60@8.4V
Stall Torque: 13.0 kg-cm (181 oz-in) @ 6.0V
Stall Torque: 14.5 kg-cm (202 oz-in) @ 7.4V
Stall Torque: 16.0 kg-cm (223 oz-in) @ 8.4V
Equipment: Steel
Motor: BLS
Dimensions: 40.8*20.2*26.5 mm (1.60 x 0.79 x 1.04 in)
Weight: 57.2 g
Connection wire: TYU 200mm 22AWG
