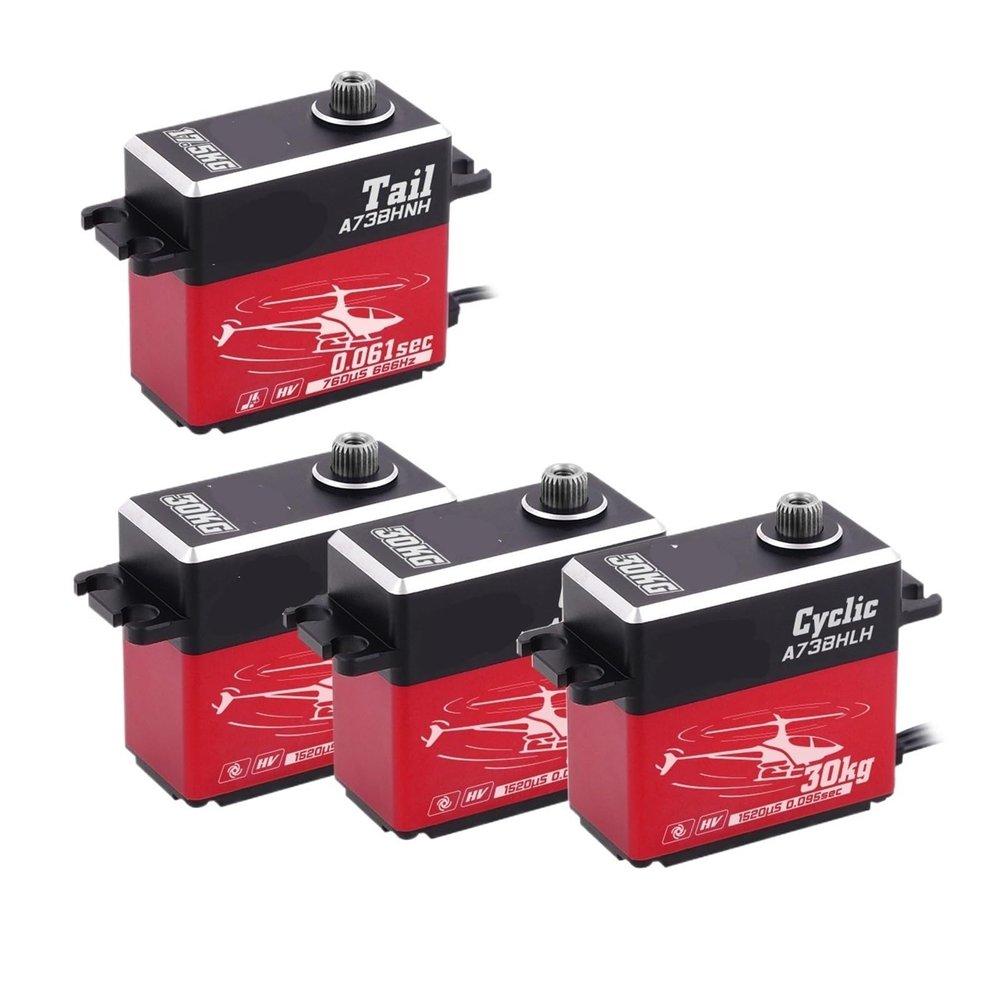

A73BHN-H Tail 17.5KG A73BHL-H Cycle 30KG HV high Torque brushless Digital Motor servo Suitable for 450-700 Class(Combo Set)

Description

• Servo Gears

Servo Gears
Specification
A73BHNH tail
Operating voltage: 4.8-8.4 V
Operation speed: 0.085 sec/60@4.8V
Operation speed: 0.075 sec/60@6.0V
Operation speed: 0.068 sec/60@7.4V
Operation speed: 0.061 sec/60@8.4V
Stall Torque: 14.0 kg-cm (194 oz-in) @ 4.8V
Stall Torque: 15.0 kg-cm (208 oz-in) @ 6.0V
Stall Torque: 16.5 kg-cm (229 oz-in) @ 7.4V
Stall Torque: 17.5 kg-cm (243 oz-in) @ 8.4V
Equipment: Strong steel +
Motor: Brushless
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.46 in)
- Weight: 72.5 g
Connection wire: JR 300mm / 22AWG
A73BHLH Cycle
Operating voltage: 4.8-8.4 V
Operation speed: 0.150 sec/60@4.8V
Operation speed: 0.130 sec/60@6.0V
Operation speed: 0.110 sec/60@7.4V
Operation speed: 0.095 sec/60@8.4V
Stall Torque: 22 kg-cm (305 oz-in) @ 4.8V
Stall Torque: 24 kg-cm (333 oz-in) @ 6.0V
Stall Torque: 27 kg-cm (375 oz-in) @ 7.4V
Stall Torque: 30 kg-cm (417 oz-in) @ 8.4V
Equipment: Strong steel +
Motor: Brushless
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.46 in)
- Weight: 72.0 g
Connection wire: JR 300mm / 22AWG
