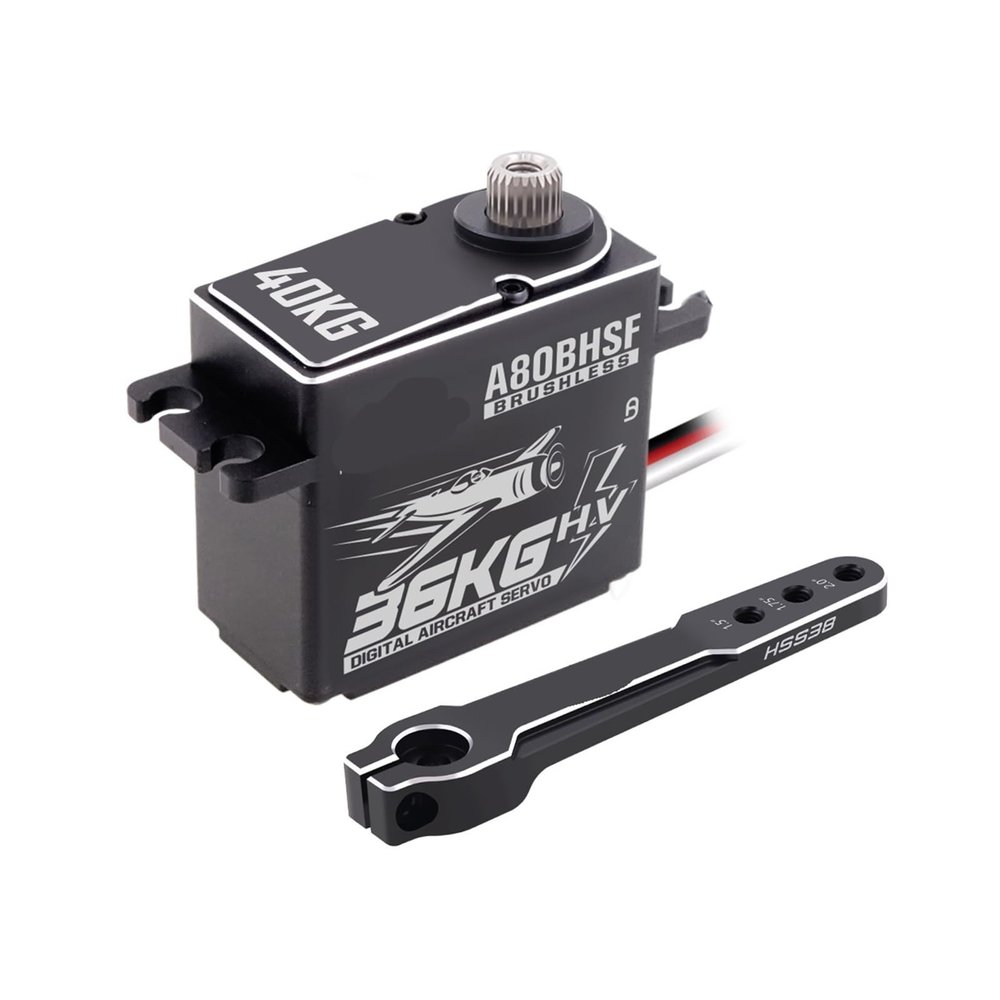

A80BHSF HV 36KG High Torque High Torque Digital Brushless Standard Programmable Servo Suitable for 30-200CC(A80BHSF 36kg Set2)

Description

• Servo Gears

Servo Gears
Specification
A80BHSF
Working voltage: 4.8-8.4V
Operation speed: 0.120 sec/60@4.8V
Operation speed: 0.110 sec/60@6.0V
Operation speed: 0.083 seconds/60@7.4V
Operation speed: 0.071 sec/60@8.4V
Stall Torque: 23 kg-cm (319 oz-in) @ 4.8V
Stall Torque: 28 kg-cm (389 oz-in) @ 6.0V
Stall Torque: 33 kg-cm (458 oz-in) @ 7.4V
Stall Torque: 36 kg-cm (500 oz-in) @ 8.4V
Control system: PWM, 1520uS/333hz
Deadband: 2 microseconds
Mechanical angle: 220
Operating range: 18010 (500 to 2500uSec)
Speaker gear spline: 25T-5.92mm
Bearings: Three ball bearings
Case material: AL6061T6
Equipment: Strong steel +
Motor: Brushless
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.46 in)
- Weight: 79 g
Connection wire: TYU 300mm / 22AWG
