A85CHM A77BHM A77BHL 41KG 18KG 24KG High Torque Digital Coreless Brushless Standard Servo(A77BHL 24kg Servo)

Description

• Servo Gears

Servo Gears
feature
Product Name: A85CHM
Working voltage: 4.8-8.4V
Operation speed: 0.200 sec/60@4.8V
Operation speed: 0.173 seconds/60@6.0V
Operation speed: 0.150 sec/60@7.4V
Operation speed: 0.140 sec/60@8.4V
Stall torque: 27 kg-cm @ 4.8V
Stall torque: 31 kg-cm @ 6.0V
Stall torque: 37 kg-cm @ 7.4V
Stall torque: 41 kg-cm @ 8.4V
Equipment: Strong Steel
Motor: Coreless motor
Dimensions: 40*20*41.5 mm (1.57 x 0.78 x 1.60 in)
- Weight: 82.0 g
Connecting wire: JR 300 mm/22 AWG

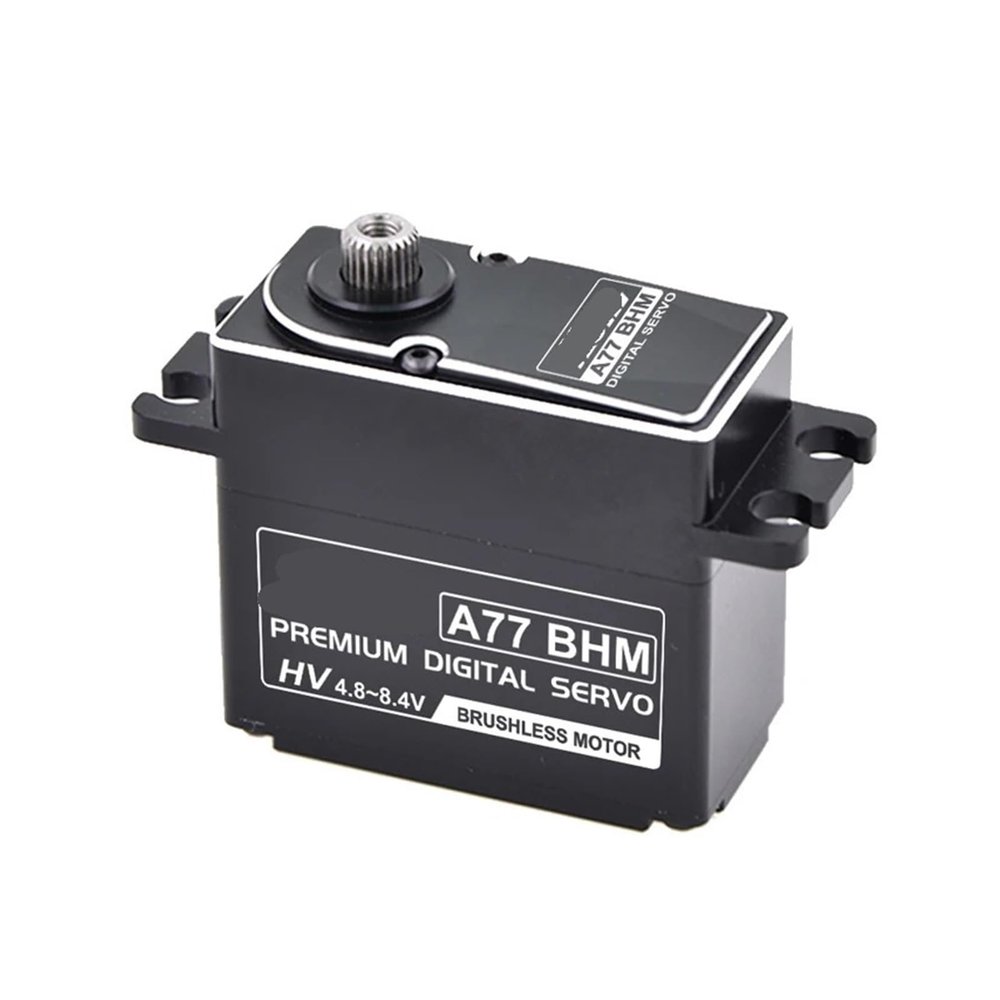

A77BHM
Operating voltage: 4.8-8.4 V
Operation speed: 0.085 sec/60@6.0V
Operation speed: 0.070 sec/60@7.4V
Operation speed: 0.055 sec/60@8.4V
Stall Torque: 12 kg-cm (166.65 oz-in) @ 6.0V
Stall Torque: 15 kg-cm (208.31 oz-in) @ 7.4V
Stall Torque: 18 kg-cm (249.97 oz-in) @ 8.4V
Equipment: Steel
Motor: BLS
Dimensions: 40*20*37.2 mm (1.57 x 0.78 x 1.46 in)
Weight: 77 g
Connecting wire: JR 300 mm
A77BHL
Working voltage: 6.0-8.4V
Operation speed: 0.124 sec/60@6.0V
Operation speed: 0.110 sec/60@7.4V
Operation speed: 0.100 sec/60@8.4V
Stall Torque: 18 kg-cm (249.97 oz-in) @ 6.0V
Stall Torque: 22 kg-cm (305.52 oz-in) @ 7.4V
Stall Torque: 24 kg-cm (333.30 oz-in) @ 8.4V
Equipment: Steel
Motor: Brushless
Dimensions: 40*20*37.2 mm (1.57 x 0.78 x 1.46 in)
Weight: 77 g
Connecting wire: JR 300 mm
