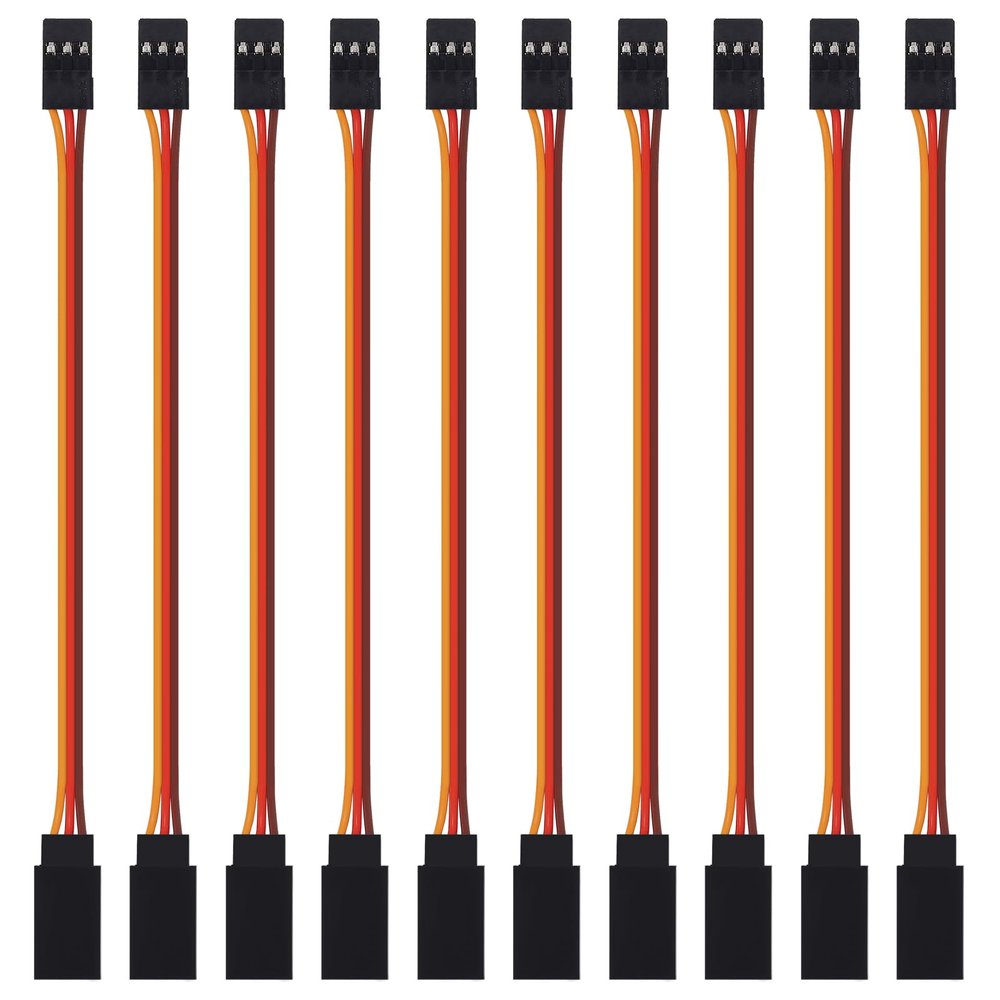

ACEIRMC 10pcs 3-Pin 30cm Servo Extension Cable Cord Female to Male Lead Wire Connector JR for RC Car Airplanes Remote Control

Description

• 3-Pin extension cable: The servo extension lead wires featured with 3 pins, and each has an angle, in case you will install incorrectly, convenient use design.
• Application: these servo extension leads are compatible with Futaba and JR servo, plane and helicopter servo connection or receiver connection, remote control car, RC Car
• Female to male servo extension cable: featured with female connector on one side and male connector on the other side, can be connected to the receiving set and steering engine
• Made from high quality materials and designed for long lasting performance.
• 10pcs 3-Pin Extension Cable Cord Male to Female Lead Wire Connectors for Servo Extension Connection Control Board Remote Control Parts

Specification:

Number of copper wire cores: 30 cores

Copper wire diameter: 0.08mm

Cable type: 0.08TS wire

Wire outer diameter: 1.5mm

Color: JR color (orange red brown)

Connector: Female to Male

Application:
Used to extend the long-distance connection between the steering gear or the ESC and the receiver, so that the position of the ESC or the steering gear is more reasonable.

How to choose the servo extension cable:

1. Select the color of the servo line:

JR-orange red brown; Futaba-white red black.

2. Select the type of steering gear:

If it is a high-torque and high-current standard servo, such as Futaba BLS351, Futaba S9254, Align DS610, etc., a high-current 60-core servo cable.

If it is a medium-sized servo, such as Futaba S9257, Align DS520, etc., you can choose a standard 30-core servo cable.

If it is a miniature steering gear, such as the 9 grams of Fraser, Hi-Tech 65MG, etc., you can choose a lightweight 20-core steering gear line.

3. For additional options, if it is a standard application, you can choose a parallel wire (that is, three wires are combined). If you need to use it in a place with serious interference, you can choose a twisted wire with stronger anti-interference ability.

Package includes:

10 x Extension Cables
