Description

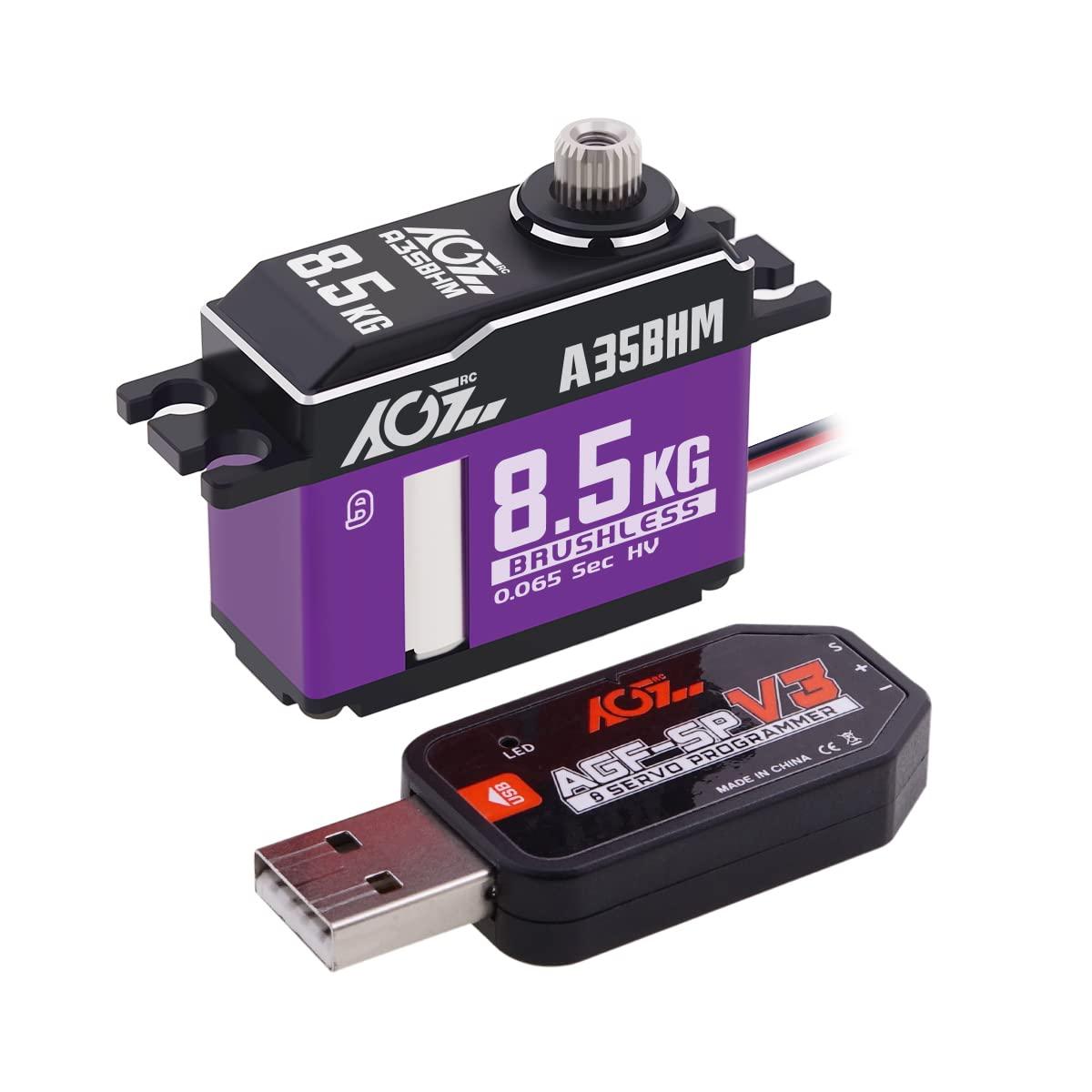

- This combo included 1pcs AGFRC A35BHM 8.5kg / 0.065Sec @8.4V brushless high torque programmable rc steering servo + 1 pcs AGF-SPV3 servo programmer
- Advanced linearity and accuracy, stable, low noise, dust-proof.
- High torque, high speed, high performance and high precision.
- Ideal for 1/12 scale RC cars, large cars/ trucks, 500-600 size helicopter, 3D helicopters, jet aircraft, airplanes glider, robot etc.
- Great bang for the buck! Save more super value combo!
Feature
Middle Compact Size Design
High Performance Digital Servo
High Precision Titanium Gear
Longer Lifespan Brushless Motor
Fast Response
Smooth Dual Ball Bearing
Full CNC Aluminium Housing
Ideal for 1/12 Scale RC Cars, Large Cars/ trucks, 500-600 Size Helicopter, 3D helicopters, Jet Aircraft, Airplanes Glider, Robot etc.
Specification
A35BHM
Operating Voltage: 4.8-8.4 V
Operating speed: 0.080sec/60 @ 6.0V
Operating speed: 0.072sec/60 @ 7.4V
Operating speed: 0.065sec/60 @ 8.4V
Stall Torque: 6.5 kg-cm (90 oz-in) @ 6.0V
Stall Torque: 7.5 kg-cm (104 oz-in) @ 7.4V
Stall Torque: 8.5 kg-cm (118 oz-in) @ 8.4V
Gear: Titanium
Motor: BLS

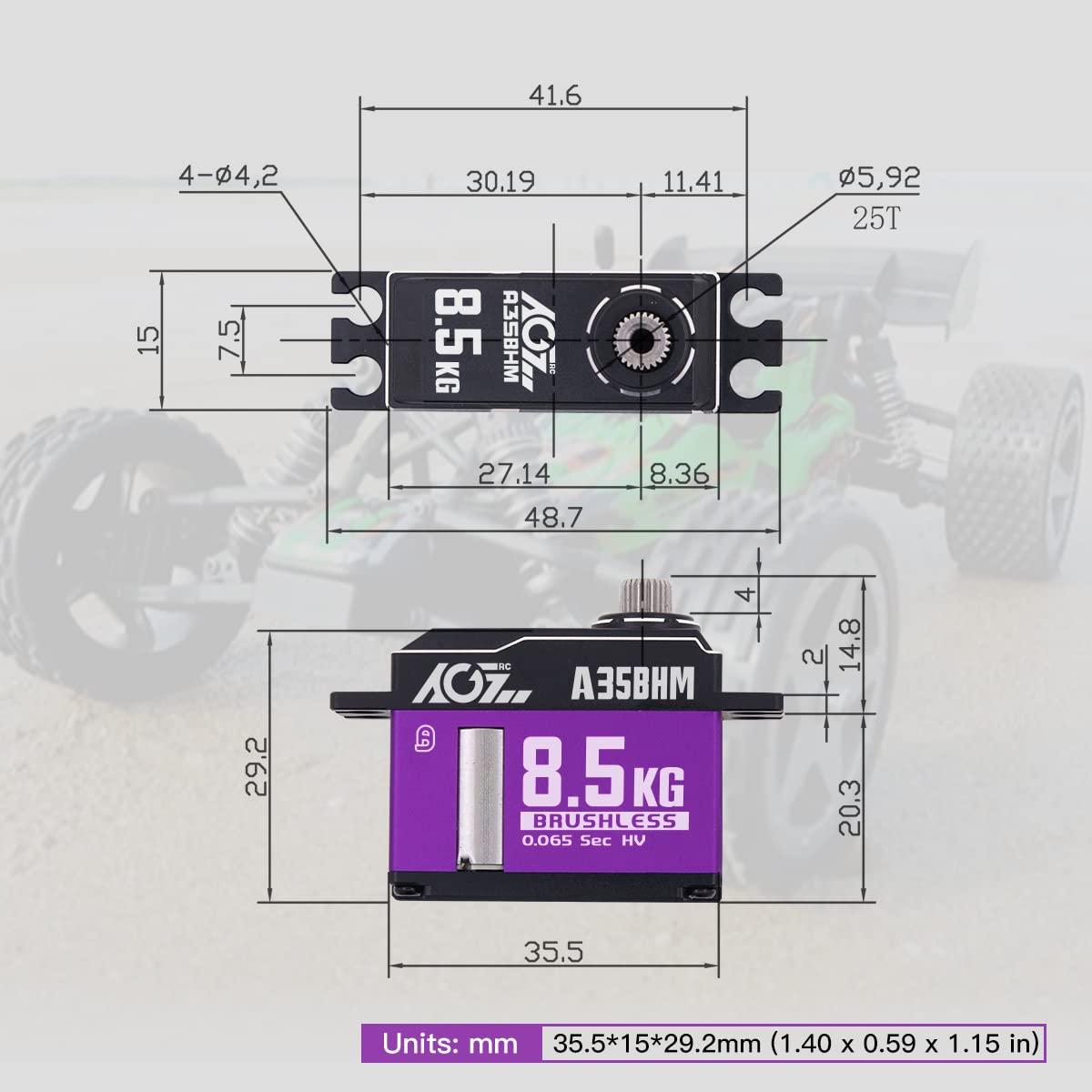

Size: 35.5*15*29.2mm (1.39 x 0.59 x 1.14 in)
Weight: 46g
Connector Wire: TYU 180 mm

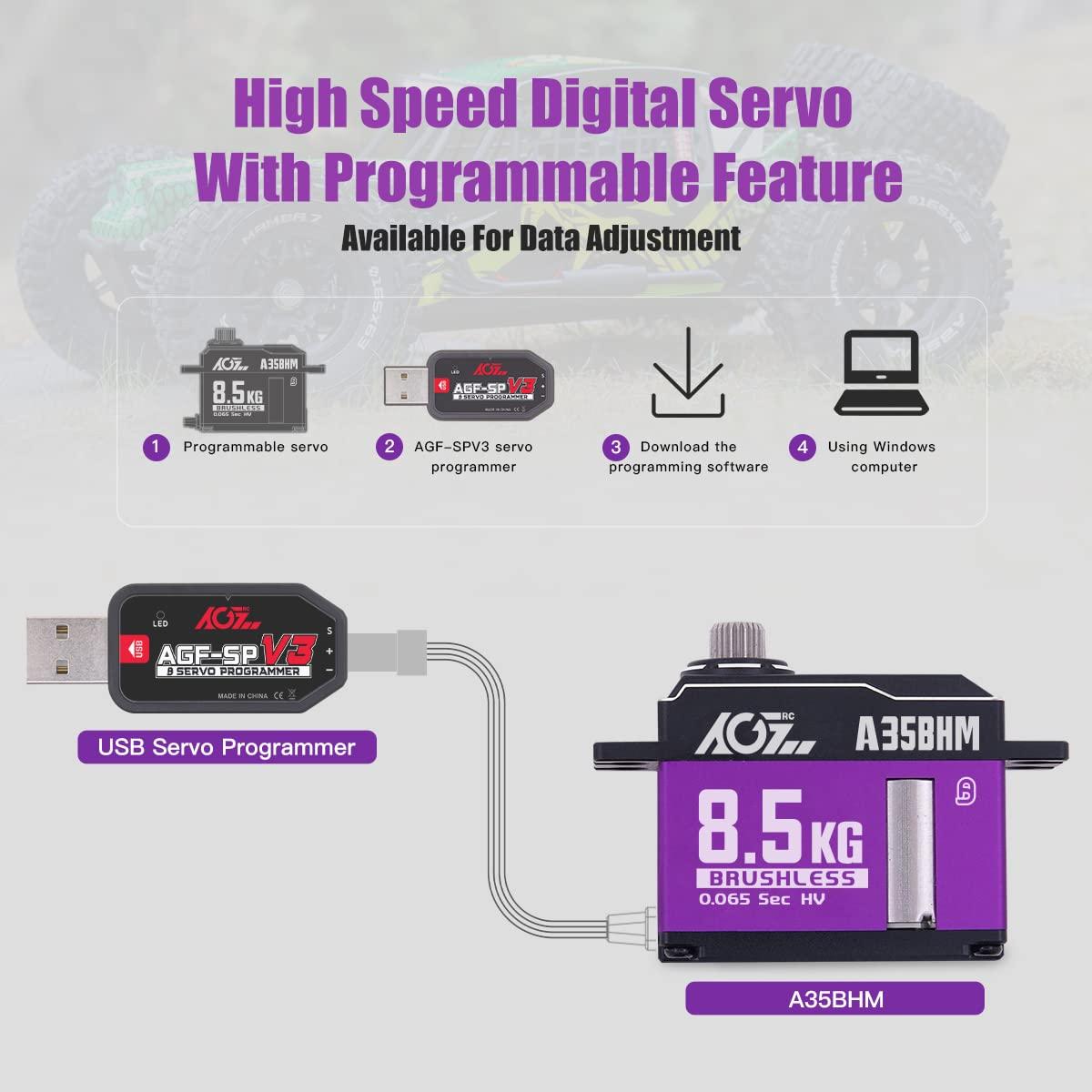

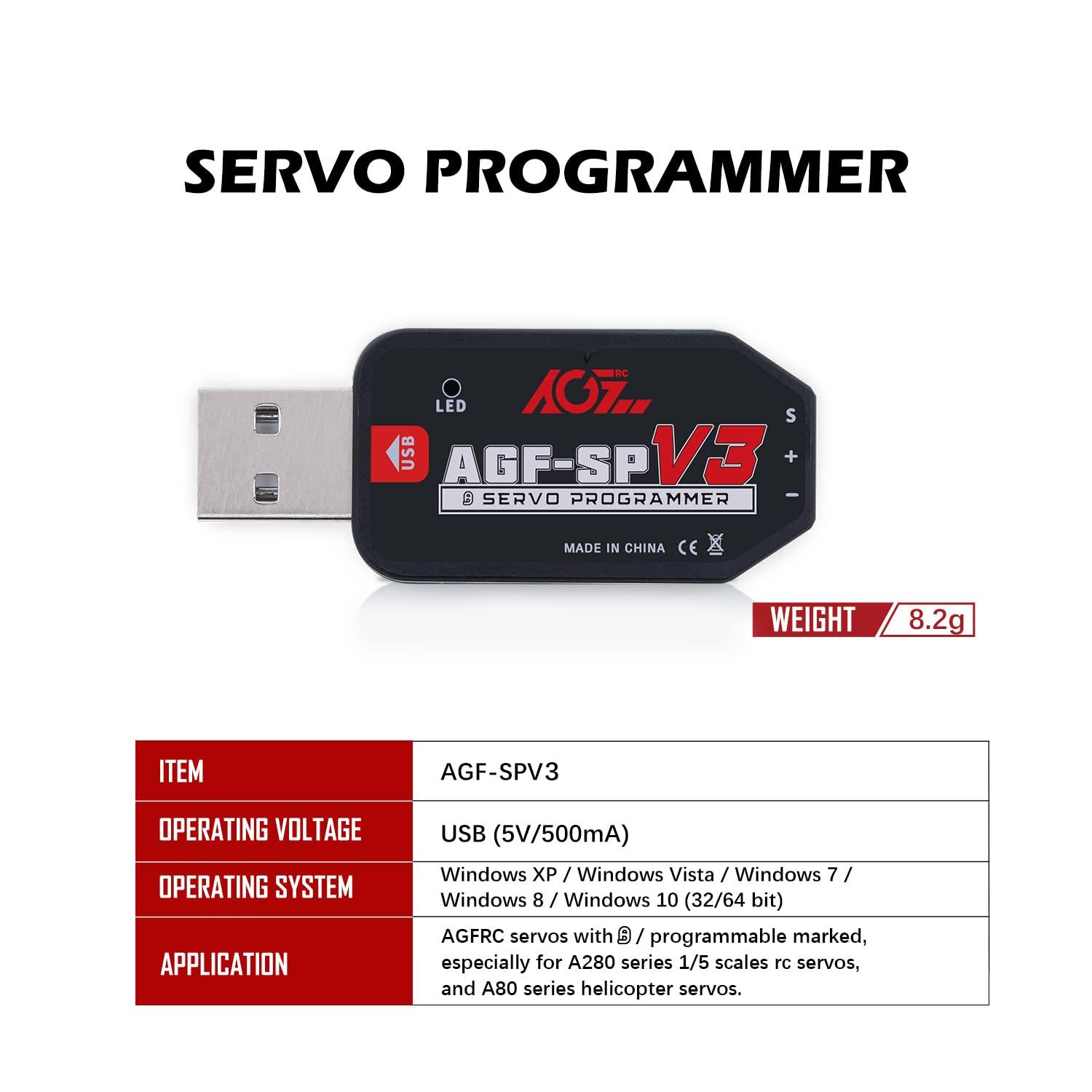

AGF-SPV3 System Requirement 1. Operating Voltage: USB5V/500mA 2. Operating System: Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit).

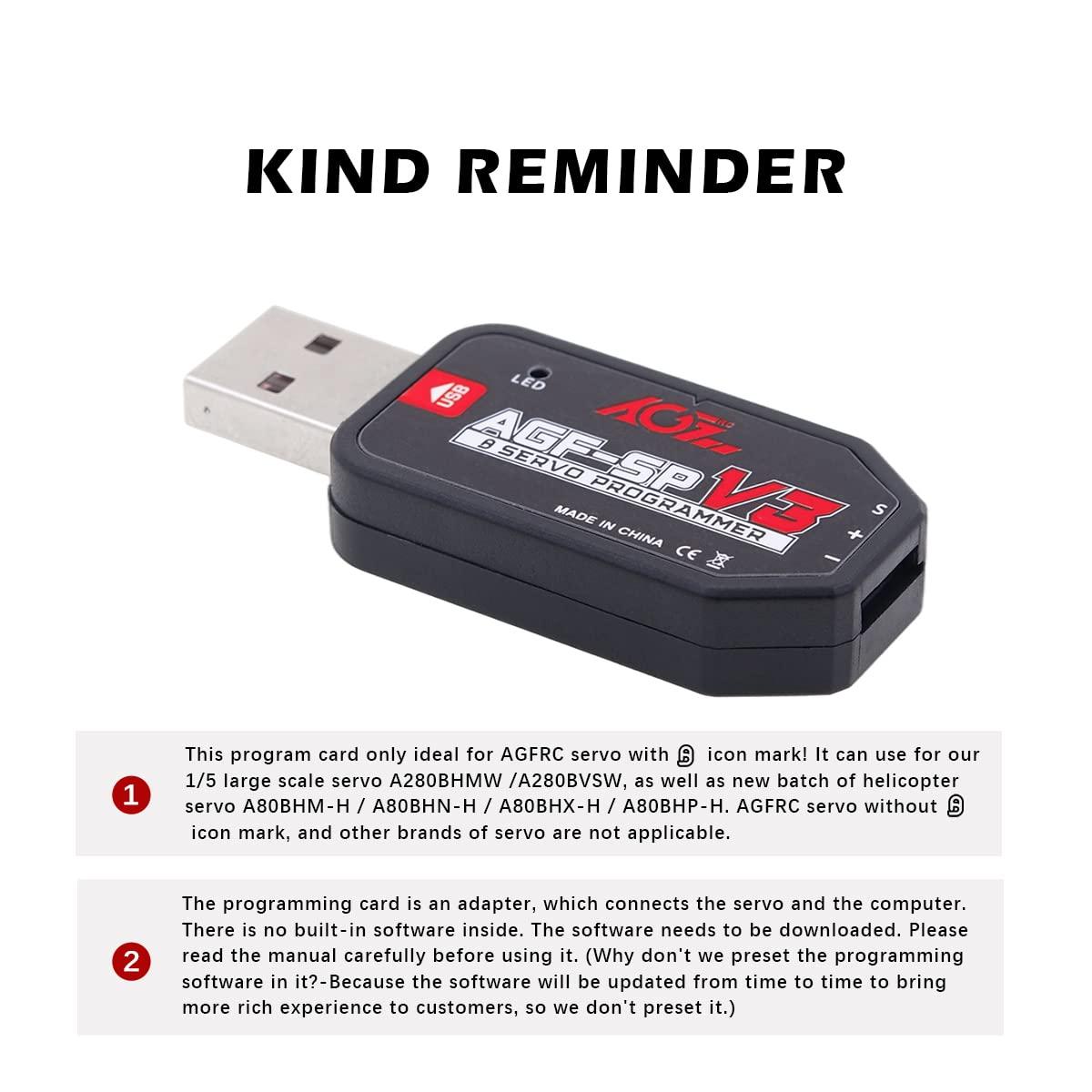

Note: Please read the manual before using the servo programmer. It needs to download the programming software. The download URL is on the cover of the manual.
