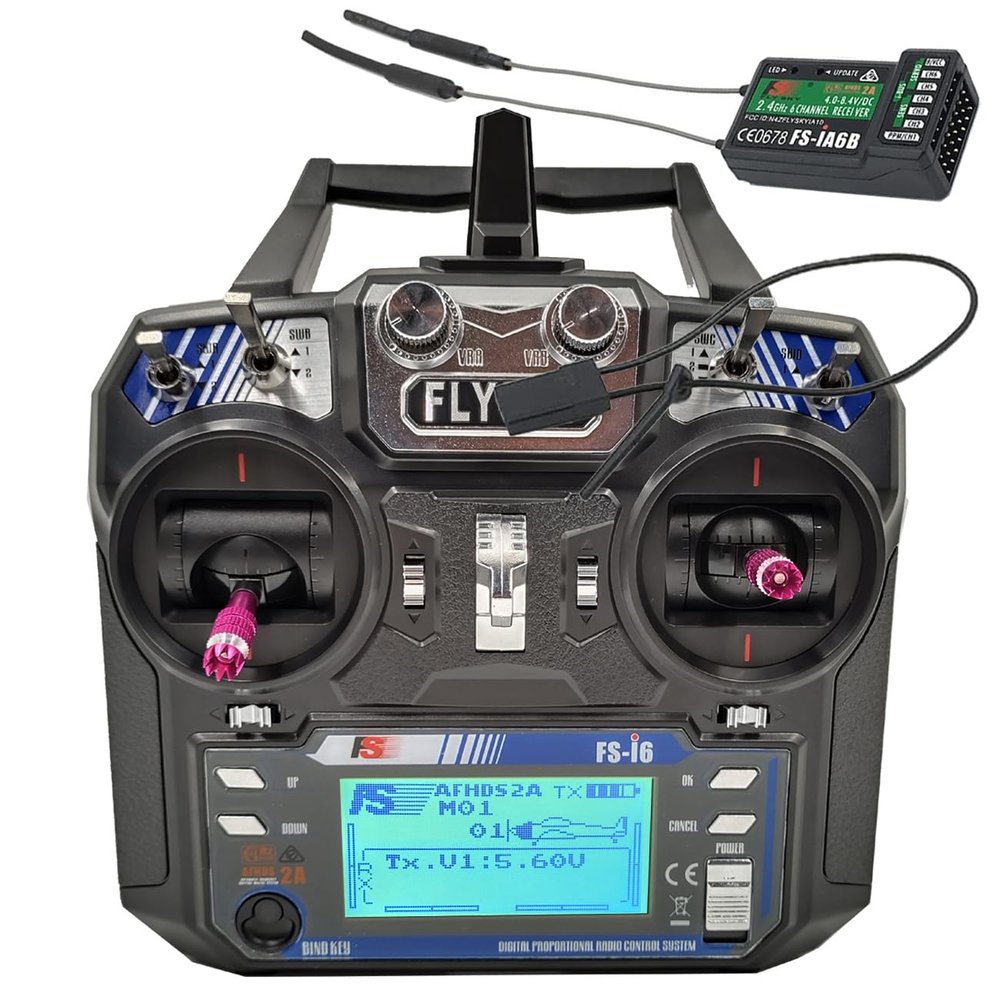

Alaohu FS-i6 6CH RC Transmitter and Receiver FS-iA6B 2.4GHz Fly AFHDS2A Sky Radio Control System Remote Controller for RC FPV Multirotor Fixed Wing Hobby

Description

• The FS 2.4GHz AFHDS 2A has stable signal, long remote control distance and multiple functions, which is popular with users. It is compatible with AFHDS 2A series receivers.
• Output PWM/PPM/i-Bus, which can be selected through TX Menu - System - RX Setup Settings
• Applicable to RC multi rotor FPV Drone Fixed wing Helicopter DIY Hobby.
• FS-i6 transmitter can store 20 sets of model setting parameters. Fly in the vast Sky
• RC transmitter and receiver with excellent cost performance

The FS-i6 Transmitter 2.4G AFHDS 2A has stable signal, long remote control distance and multiple functions, which is popular with users. It is compatible with AFHDS 2A series receivers.

The transmitter and receiver were pre-bound before delivery. If you are using a different transmitter or receiver, follow the steps below to connect to the receiver's B/VCC port.
1, Connect the included binding cable to the receiver's B/VCC port.
2, Plug the DC 4V-6.5V power supply into other ports, the positive and negative poles cannot be wrongly connected.
3, Keep pressing the "BIND KEY", and then turn on the transmitter to enter the binding mode.
4, The transmitter will display the RX voltage, that means the binding is successful.
5, Remove binding wire, Check the operation of the servos. If something doesn't work as expected, start this process from the beginning.

Fly in the vast Sky

FS-i6 Specifications:
*Pushing the left throttle stick up and down does not automatically return to center
Channels: 6 CH
Model Type: Multirotor/Fixed Wing/Heli
[Parameters can be set to support quadcopters, although there is no quadcopter icon in the TX menu.]
RF Range: 2.40-2.48GHz
Mark width: 500KHz
RF Power: Less than 20dBm
2.4GHz system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC connector: PS2; Output: PPM
Charging Port: No
Transmitter weight: 392g 13.83 oz
Transmitter size: 174x89x190mm 6.85*3.5*7.48 inch
Packing size: 212*106*235mm 8.35*4.17*9.25 inch
Package Weight: 676g 1.49 pounds
Power: 6V, 4 x AA battery (not included)
Display mode: STN transflective positive type, 128 x 64 dot matrix VA73 x 39mm, white backlight.
Certification: CE, FCC
Model Memories: 20
Control range: 500mIt depends on the usage environment, weather and other factors

FS-iA6B Specifications:
Channels: 6CH
RF range: 2.408 - 2.475 GHz
Band:135
RF Power: 20dBm
RX Sensitivity: -105dBm
2.4G system: AFHDS 2A
Code type: GFSK
ANT length: 26mm * 2 (dual antenna)
Input power: 4.0-6.5V DC
Dimension: 43x26x15mm 1.69*1.02*0.59 inch
Weight: 16g 0.56 oz
i-bus interface: Yes Model Type: Muotor/Fixed Wing/
Compatible Transmitters: Compat with FS-i6, FS-I6X, FS-IFS-i4
Package Contents
FS-i6 Transmitter * 1
FS-iA6B receiver * 1
Binding Cable * 1
ManualEN & CN * 1
Delivery without batteries

Support PWM/PPM/i.bus,
How to turn on PPM:
Press and hold the "OK" button on the right side of the screen for 2 seconds to enter the remote control menu-System-RX Setup-PPM Ostput setting to turn it on or off.
Press and hold the "CANCEL" key on the right side of the screen for 2 seconds to save.
Then the position of FS-IA6B receiver CH1 outputs PPM.
