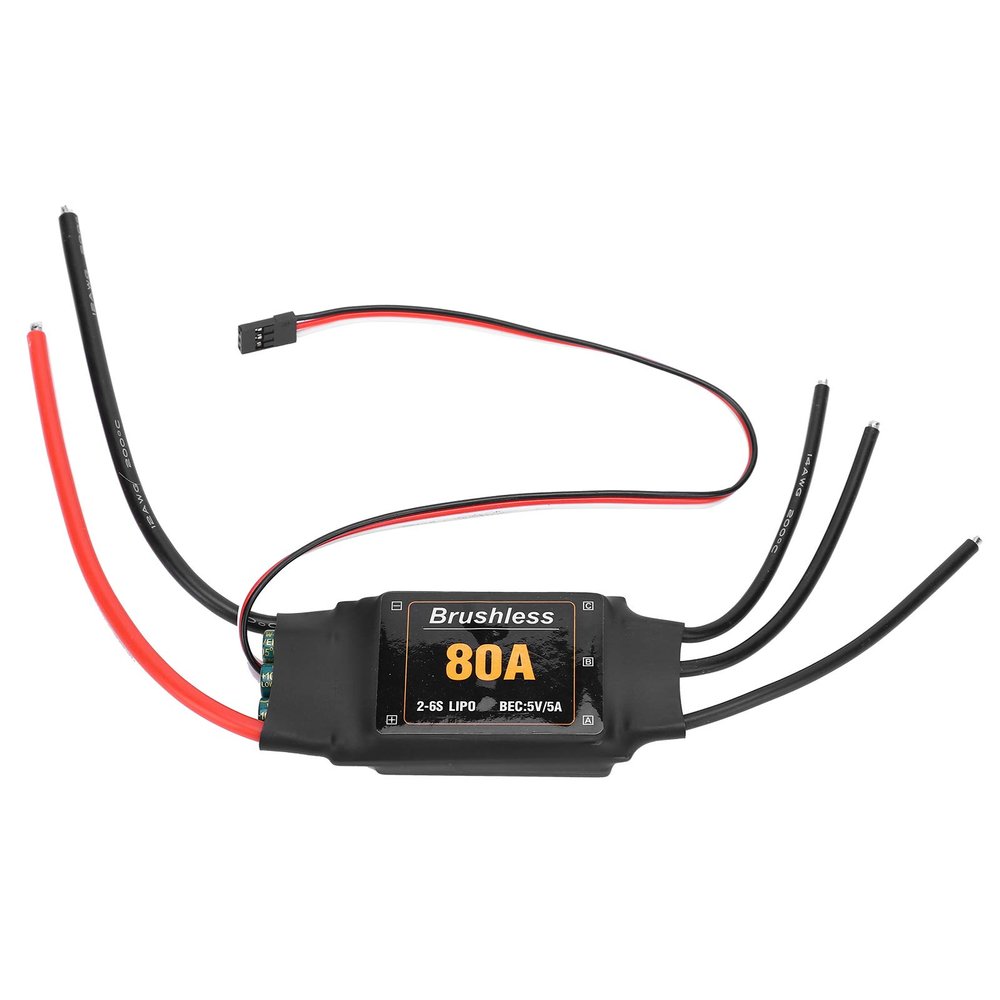

Alomejor 80A Brushless ESC High Reliability Electronic Speed Controller Throttle Stroke Setting for RC Airplane Helicopter ((80A))

Description

• [User-friendly Design] User-friendly design allows for easy setup and use. provides precise speed control and performance for rc enthusiasts. enhance your aircraft's performance with this esc.
• [Multiple Functions] Equipped with various functions including input voltage abnormal protection, battery low voltage protection, overheat protection, and throttle signal loss for added safety.
• [ Material] Made of premium material, ensuring top-notch quality and high reliability of the esc. features strong for enhanced performance.
• [Versatile Compatibility] Supports normal, soft, and super soft start options, ideal for fixed-wing aircraft and helicopters. adjustable throttle stroke and compatible with different remote controllers.
• [Smooth Speed Control] Delivers a smooth and delicate speed control feel with exceptional linearity. allows for a maximum speed of up to 210,000 rpm for 2-pole motors, 70,000 rpm for 6-pole motors, and 35,000 rpm for 12-pole motors.

Spec:
Item Type: ESC
Material: Electronic Component
Hardware Parameters
Continuous / Current: 80A/100A
Number of Batteries: 2-6S LiPo (not with batteries, but capacitors)
BEC Output: Switches Mode: 5V, 5A
Wire and Plug
Power Cord: Red-12AWG-150mm / 5.9in*1, black-12AWG-150mm / 5.9in*1
Output Cable: Black-14AWG-100mm / 3.9in*3
Power Plug: No Plug
Output Plug: No Plug
Programming Features:
Remote control programming: After power on, the throttle is at the maximum, and 2 beeps, 3 beeps, and 4 beeps are repeated in sequence. Hearing 2 beeps for the minimum throttle is to learn the throttle stroke, when hearing 3 beeps for the minimum on/off synchronous rectification, and 4 beeps for the minimum on/off brake
ESC Function Description:
1. Startup protection: After pushing the throttle to start, if the motor fails to start normally within two seconds, the ESC will shut down the motor, and the throttle must be placed at the lowest point again before restarting. (appear
The reasons for this situation may include: poor between the ESC and the motor or disconnected individual output wires, the propeller is blocked by other objects, the deceleration gear is stuck, etc.)
2. Temperature protection: When the operating temperature of the ESC exceeds 110 degrees Celsius, the ESC will reduce the output power for self-protection, but will not turn off the output power, at most it will only drop to full power
40% to ensure that the motor is still powered and avoid crashes. After the temperature drops, the ESC will gradually recover its maximum power.
3. Throttle signal loss protection: When detecting that the throttle remote control signal is continuously lost for 1 second, the ESC starts to reduce the output power. If the signal cannot be recovered, it will drop to 0 output (lower output).
The power process is 2 seconds). If the throttle remote control
