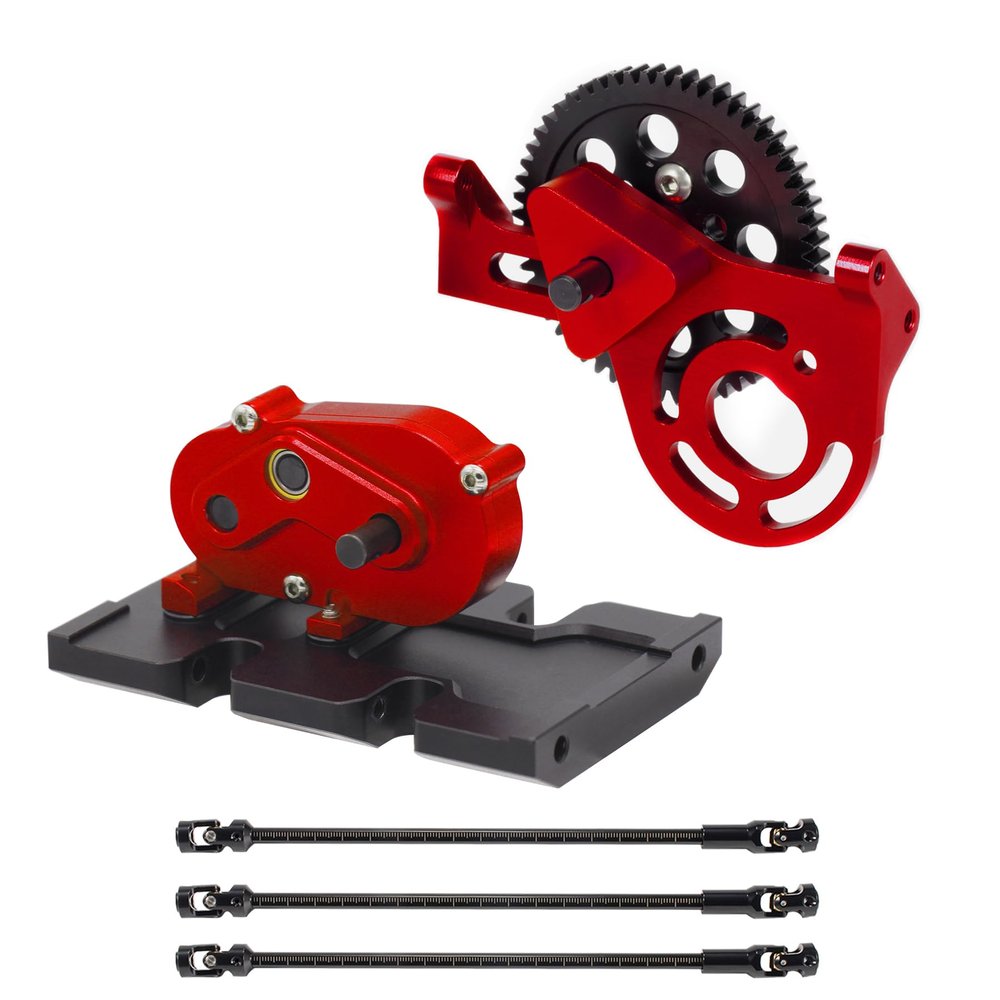

AMK 1/10 Scale Transmission Kit OD Transfer Case Gearbox with 30% Overdrive Gear Box 3Pcs Driveshafts for RC Crawler Axial SCX10 II Element Enduro DIY LCG Chassis (Red)

Description

• 1/10 RC Crawler Transmission Kit1/10 scale gearbox kit is compatible with 1/10 RC crawler LCG chassis and DIY chassis. Please match the appropriate chassis to the size shown in the pictures
• Material of Transmission 1/101/10 transmission kit includes 1Pcs metal gearbox, 1Pcs metal transfer case with POM main gear, 1Pcs frosted aluminum plate, and 3Pcs steel cuttable driveshafts, totally weighing 398g/14oz
• 1/10 Differential Gearbox1.94:1 front transmission output and 2.65:1 rear transmission output, 1/10 LCG transmission will provide 1/10 RC crawlers with about 30% overdrive effect
• Reliable PerformanceRobust and CNC-machined heavy duty gears with precise size and close meshing for smooth running, not easy to be broken. It is suggested to be greased before use
• Extremely Free Style ChassisTransmission position allows front or rear mounting, cuttable driveshafts support cutting in any position. The chassis can be constructed with any position of the transmission as needed

Specifications
Item: RC Car Transmission
Material: Aluminum Alloy, Steel, Delrin
Color: Black, Purple, Red
Weight of Transmission: 115g / 4.06oz
Weight of Plate: 70g / 2.47oz
Weight of Driveshaft: 213g / 7.5oz (3Pcs)
Total Weight: 398g / 14oz
Size: As Shown

Gear Ratio
Front Output Ratio=1.94:1 (Excluding Spur Gear)
Rear Output Ratio=2.65:1 (Excluding Spur Gear)
Shaft Diameter: 5mm

Featrues
Machined aluminum housing, black/red/purple anodized
With 56T Delrin spur gear and aluminum spur locker
Steel shaft and sealed rubber bearings
Heavy duty machined steel gear set (17T*1, 33T*1, 45T*1)
30% overdrive(can be mounted on driver or passenger side of skid by way of flipping the gears and shafts inside the case)
