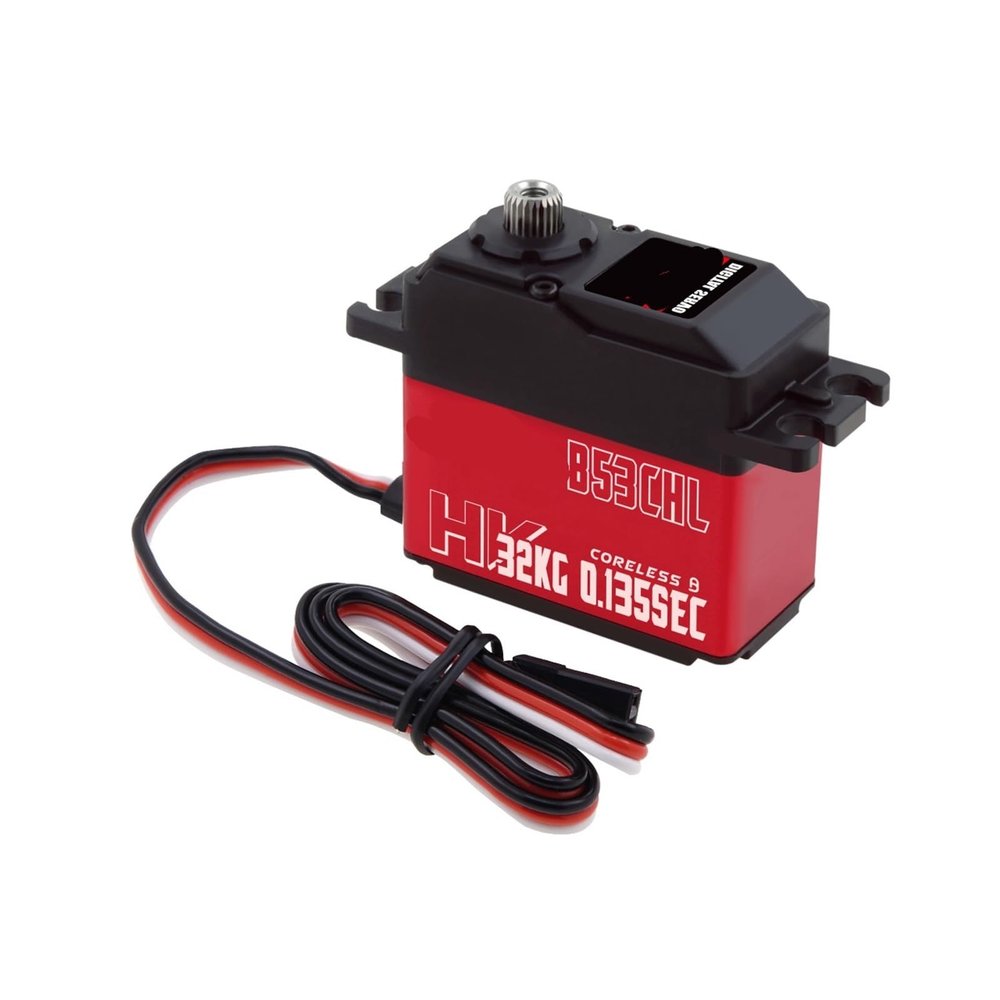

B53BHL V2 B53CHL V2 31KG 32KG Magnetic Waterproof Coreless Torque Fast Programmable Brushless Standard Remote Control Servo(B53CHL V2 32kg)

Description

• Servo Horns

Servo Horns
Specification
B53BHL V2
Operating voltage: 4.8-8.4 V
Operation speed: 0.125 sec/60@6.0V
Operation speed: 0.105 sec/60@7.4V
Operation speed: 0.090 sec/60@8.4V
Stall Torque: 23 kg-cm (320 oz-in) @ 6.0V
Stall Torque: 28 kg-cm (389 oz-in) @ 7.4V
Stall Torque: 31 kg-cm (430 oz-in) @ 8.4V
Equipment: Steel
Motor: BLS
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.47 in)
- Weight: 69.5 g
Connection wire: JR 360 mm 22AWG
B53CHL V2
Working voltage: 4.8-8.4V
Operation speed: 0.180 sec/60@4.8V
Operation speed: 0.160 sec/60@6.0V
Operation speed: 0.145 sec/60@7.4V
Operation speed: 0.135 sec/60@8.4V
Stall Torque: 22 kg-cm (306 oz-in) @ 4.8V
Stall Torque: 26 kg-cm (361.07oz-in) @ 6.0V
Stall Torque: 29 kg-cm (402.73 oz-in) @ 7.4V
Stall Torque: 32 kg-cm (444.40 oz-in) @ 8.4V
Equipment: Steel
Motor: Coreless motor
Dimensions: 40*20*37.2 mm (1.57 x 0.78 x 1.46 in)
- Weight: 69.5 g
Connection wire: JR 360mm / 22AWG
B53CHLW
Working voltage: 6.0-8.4V
Operation speed: 0.160 sec/60@6.0V
Operation speed: 0.145 sec/60@7.4V
Operation speed: 0.135 sec/60@8.4V
Stall Torque: 26 kg-cm (361 oz-in) @ 6.0V
Stall Torque: 29 kg-cm (403 oz-in) @ 7.4V
Stall Torque: 32 kg-cm (445 oz-in) @ 8.4V
Equipment: Steel
Motor: Coreless motor
Dimensions: 40*20*37.2 mm (1.57 x 0.78 x 1.46 in)
Weight: 53 g
Connection wire: JR 300mm / 22AWG
Product Name: B53BHLW
Working voltage: 4.8-8.4V
Operation speed: 0.150 sec/60@4.8V
Operation speed: 0.125 sec/60@6.0V
Operation speed: 0.105 sec/60@7.4V
Operation speed: 0.090 sec/60@8.4V
Stall Torque: 21 kg-cm (292 oz-in) @ 4.8V
Stall Torque: 23 kg-cm (320 oz-in) @ 6.0V
Stall Torque: 28 kg-cm (389 oz-in) @ 7.4V
Stall Torque: 31 kg-cm (430 oz-in) @ 8.4V
Equipment: Steel
Motor: Brushless
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.47 in)
- Weight: 69.5 g
Connection wire: JR 300mm / 22AWG
