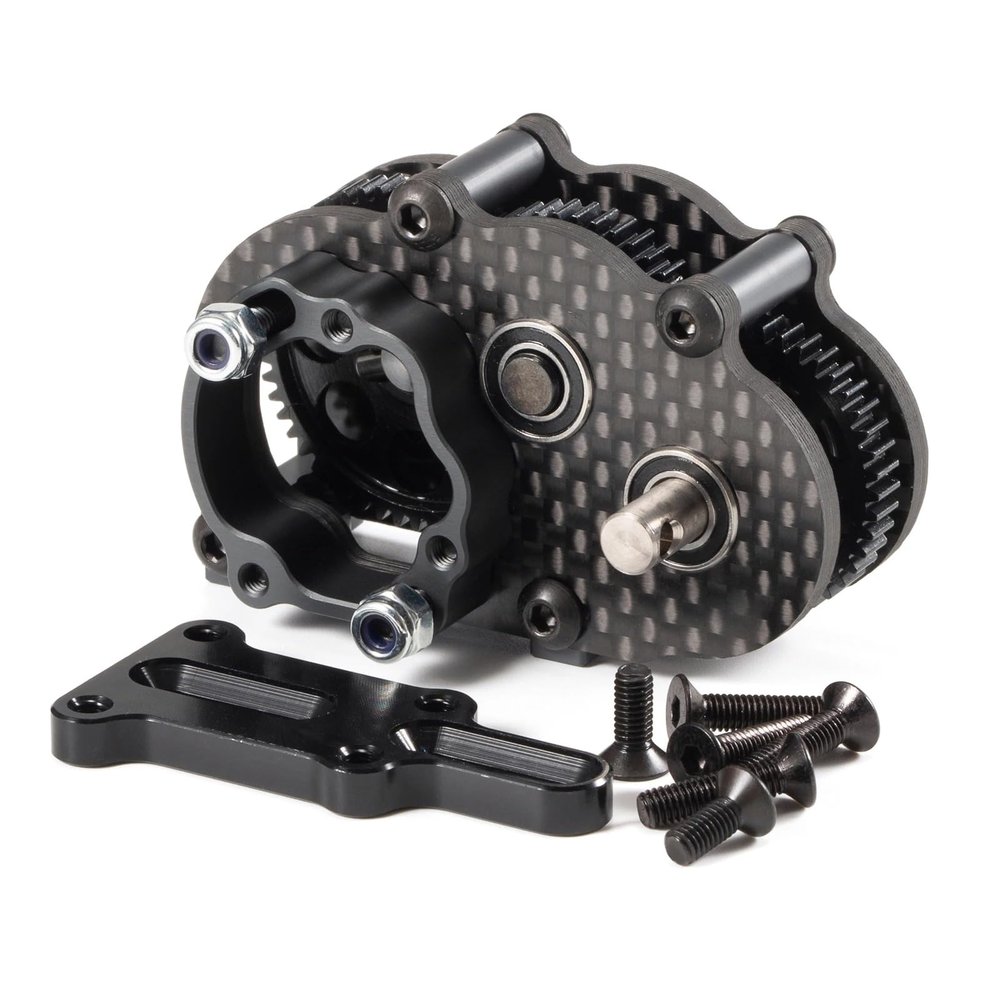

Carbon Fiber OD-3 Transmission Overdrive Gearbox 18.6% Front OD for 1/10 RC Crawler LCG Chassis Comp Rigs (Right Motor Version)

Description

• Ultra-Lightweight Carbon Fiber Construction: Features a high-strength carbon fiber case and CNC aluminum motor mount for exceptional durability and minimal weight (57g / 2.01oz). Significantly lowers your rig's center of gravity (LCG) for superior stability and performance on extreme crawler courses
• Precision Overdrive Gearing & Ratios: Delivers a built-in 18.6% overdrive (both outputs spin same direction) for enhanced turning capability. Achieve up to 28% or 38% overdrive by combining with axle underdrive gear sets, providing ultimate tuning flexibility for competitive advantage
• Premium Internal Components: Equipped with heat-treated alloy steel gears and Grade 5 Titanium output shafts for maximum strength, wear resistance, and smooth power transfer under high-torque loads. Fits 48P pinions from 9T to 17T
• Easy Forward Motor Mount Installation: Designed for right-side motor forward mounting. Includes an aluminum adapter plate for compatibility with Axial 3-gear transmission mounting patterns. Features simple two M3 hole mounting (23mm center to center) for a secure and hassle-free setup
• Complete Compact Transmission Kit: Includes the overdrive transmission, slidable shim, and necessary hardware. Compact dimensions (30L x 56.5W x 37.5H) ensure compatibility with tight LCG chassis builds for cheater rigs and comp crawlers

Features:
Extremely compact and lightweight 57g / 2.01oz.
Dimensions (mm): 30L 56.5W 37.5H (Length excludes output shafts)
Designed for motor forward mounting (Right Motor Version).
Mounting is accomplished by two M3 tapped holes, 23mm center to center (not angled).
Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.
High strength carbon fiber case.
CNC aluminum motor mount and transmission brace.
Heat treated alloy steel gears.
Grade 5 Titanium output shafts.
Fits 48 Pitch pinions from 9T to 17T(Not Included)

Transmission Ratio:
3.67:1 Front Output
3.67:1 Left Rear Output
4.42:1 Right Rear Output

18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).

28% overdrive when using:
Rear underdrive gear set (33T/8T) + Front stock gear set (30T/8T).

38% overdrive when using:
Rear underdrive gear set (33T/8T) + Front overdrive gear set (27T/8T).

(Remember to add lubricating grease to the gears before use, and ensure that all screws are tightened)
