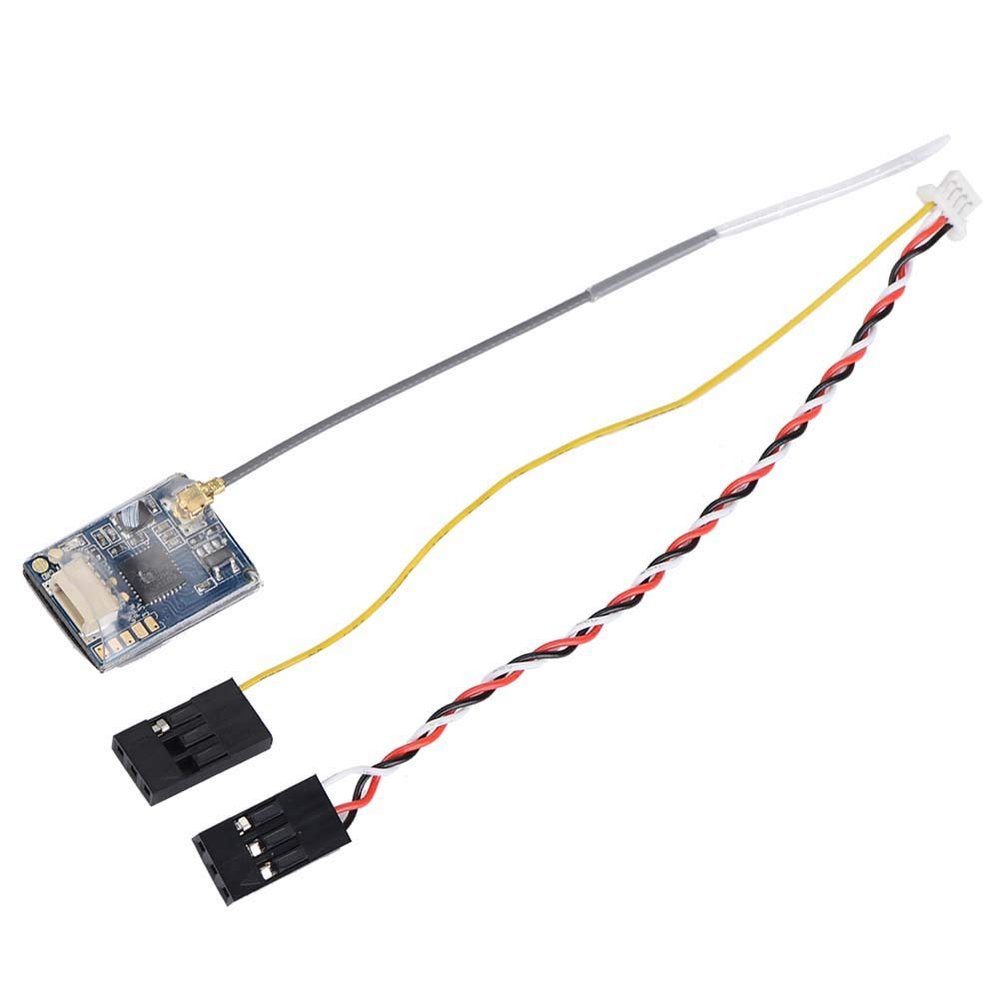

Compact 8CH Mini RC Receiver for Multi Aircraft with PPM i Bus SBUS Output AFHDS 2A Protocol, for FS i4, i6S,AFHDS 2A,LED Display Method

Description

• [Compact Design] The fs-a8s is a compact one-way receiver, for multi-rotor aircraft, ensuring a streamlined setup.
• [Wide Compatibility] Compatible with various fs series transmitters, including fs-i4, fs-i6, fs-i6s, and more, making it easy to integrate into your existing setup.
• [Advanced Technology] Utilizing the afhds 2a protocol, this receiver offers ppm output and i-bus support for up to 18 channels, ideal for versatile control options.
• Performance] With a range of up to 300m, the fs-a8s ensures stable and interference- signal transmission, ensuring a seamless flying experience.
• [Easy Mode Switching] Transition between i-bus and s.bus modes is effortless, providing convenience during .

Spec:

Features:
The FS-A8S is a compact one-way receiver.
It is designed for multi-rotor aircraft.
It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels.
The receiver is suitable for FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitter.
Changing mode (i-BUS / S.BUS) is simplier and easier.
Specification:
Material: PCB + Rubber
Color: Black
Brand Name:
Item Name: FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model Type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
DSC Port: PPM/i-BUS/S.BUS
Transfer Method: FHSS
Data Output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna Length: 26mm (Not including brass contacts)
Input Power Supply: 4.0-8.4V
Display Method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each Channel Data: On The Transmitter
Channel Delay:
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
Size: Approx. 20 * 15 * 7mm / 0.8 * 0.6 * 0.3inch
Weight: 9g
Type: RC Model Part & Acces
Package List:
1 * FS-A8S 2.4G 8CH Mini Receiver
1 * Cable
1 * Manual
