Compatible with X9 Plus Power System Drone Motor 36190 Propeller 15kg 14s Brushless Motor Drone Quadcopter Agricultural Drone Universal(A Set CCW)

Description

• Scope of application: compatible with X9 Plus power system, drone motor model 36190 propeller.
• Product type: carbon nylon folding propeller accessories for agricultural drone quadcopters.
• Power specifications: support 15 kg thrust, compatible with 14S brushless motor.
• Material description: made of carbon and nylon composite materials, with lightweight and durable characteristics.
• Design features: support clockwise and counterclockwise rotation, folding design for easy carrying and replacement.
• Applicable scenarios: suitable for agricultural protection drones to improve flight stability and operation efficiency.

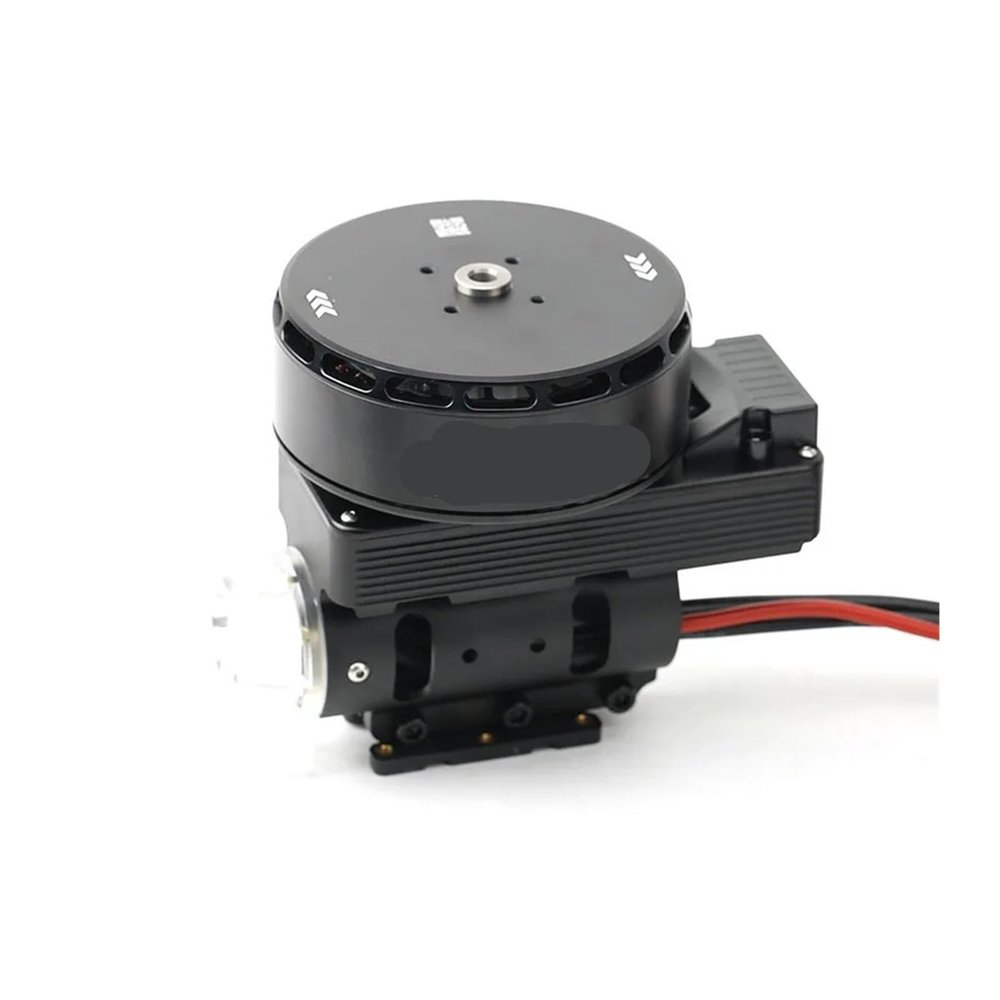

X9 Plus-12-14S
Technical parameters
Maximum pulling force: 26.5kg/axis (53.6V, sea level)
Recommended takeoff weight: 11-13kg/axis (sea level)
Recommended : 14S (LiPo)
Ambient temperature: (-20~50)
Power system weight: 1774g
Protection level: IP*7
Motor
KV value: 100KV (14S)
Stator size: 96*20mm
Applicable carbon tube outer diameter: 40mm (diameter)
ESC
Supported : 6-14S (LiPo)
PWM input level: 3.3V/5V
Compatible frequency: 50-500Hz
Working pulse width: 1050-1950us (curing)
Maximum allowable voltage: 60.9V (14S)
Maximum allowable peak current (10 seconds)
120A (good heat dissipation conditions are required)
Propeller
36120 (36 inches)/36190 (36 inches)
