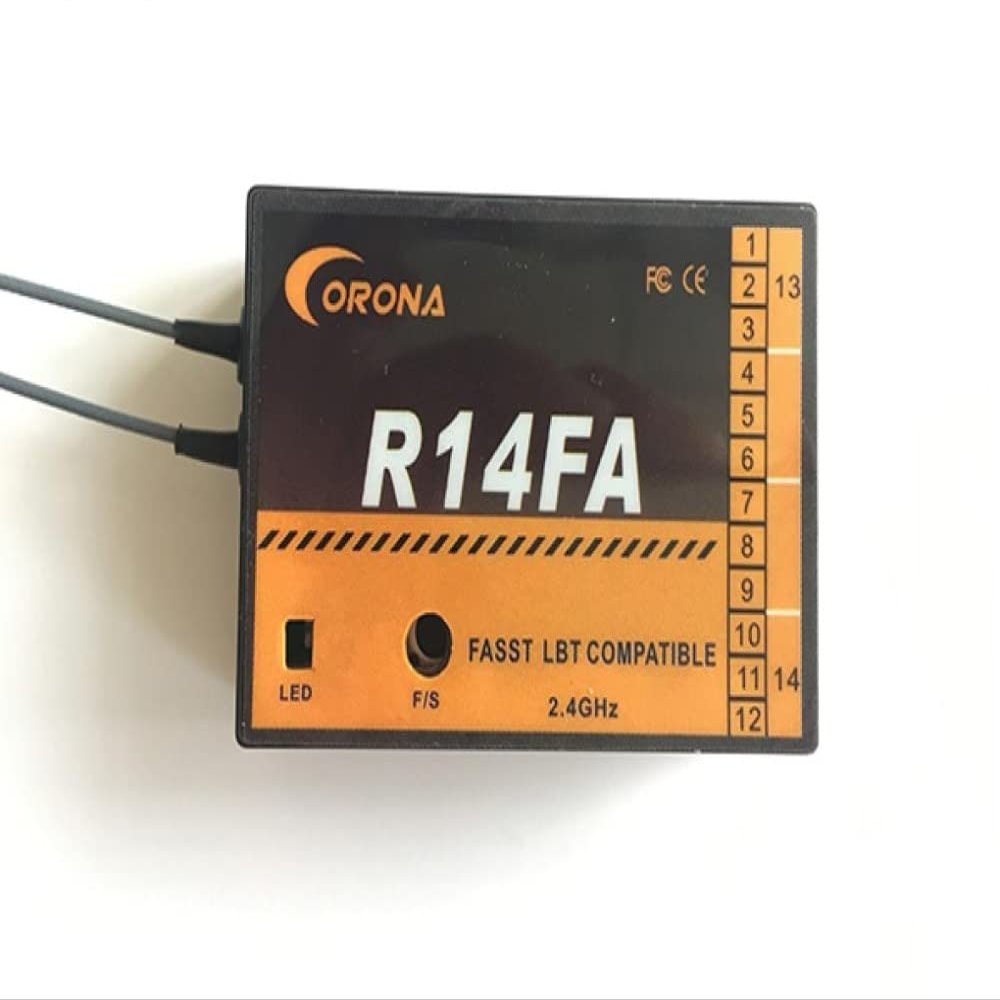

Corona R14FA 2.4G Compatible Futaba FASST 14SG 16SZ 18SZ Receiver

Description

• This method is to set failsafe on the FASST transmitter and has priority (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.
• 2.RX-failsafe
• Quantity: 1 pcs
• Size: As below shown
• Technical parameters: Value 2

Corona R14FA 2.4G Compatible Futaba FASST 14SG 16SZ 18SZ Receiver
Compatibility:
FASST 2.4G Air Systems(7CH Mode/Multi Mode):6EX,7C,TM-7,TM-8,T8FG,T10C,
TM-10,T10CG,14SG,T12Z,T12FG,TM-14,T14MZ,etc.
FASST 2.4G Surface Systems(C1 Mode):3PK,4PK,etc
Parameters:
Operating Current:
70mA @ FASST 7ch mode normal and 110 mA max,
80mA @ FASST multi-channel mode normal and 110 mA max
Operating Voltage: 4.0 ~10V
Latency:
7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode,
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
Sensitivity: about -96dBi
Bind procedure:
Turn on the FASST transmitter
Connect the battery to the receiver while pressing receiver's F/S button.
The Dual-color LED's continuous will cycle through the following:
Red LED light (searching radio signal)
Green LED light (acquired the radio signal)
Red LED off (bind ok)
Green LED flashes 10 times (ID store in memory)
Green LED lights solid (normally operation)
Fail-safe setting:
There are two ways to set the Failsafe setting on the CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver.
1.TX-failsafe Features: This method is to set failsafe on the FASST transmitter and has priority (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.
2.RX-failsafe Features: Turn on FASST transmitter and turn on the CORONA 2.4GHz Spread Spectrum Receiver, put all the sticks and switches to where give the control inputs you want if the receiver looses signal and Press the F/S button down for about 5 - 6 seconds while the Green LED light solid (Rx in normal operation), then release the button. You will see the Red LED will flash for about 4 - 5 seconds. (Note: The Red LED will FLASH high speed to indicate the RX-failsafe
