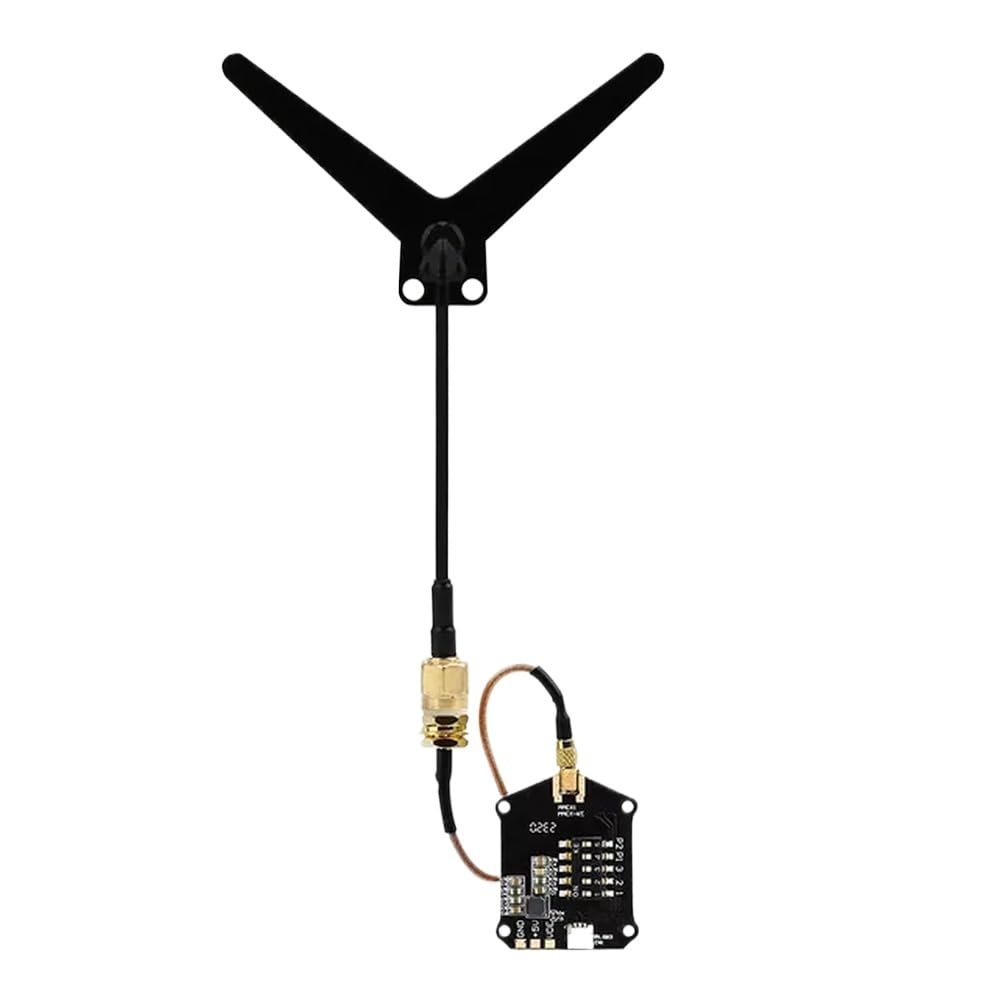

CUIPPWRJ 1.2G 800W 1.6W VTX 9CH Switchable NTSC PAL Transmitter Module Compatible with Long Range Airplane Drone(800W VTX)

Description

• Model: Features a 1.2G frequency Compatible with versatile long-range transmission.
• Power: Offers adjustable power levels of 800W and 1.6W Compatible with varied applications.
• Channel: Equipped with 9 channels Compatible with flexible management.
• Format: Supports NTSC and PAL formats Compatible with compatibility with different systems.
• Application: Ideal Compatible with flying with drones and remote control airplanes.

1.2G 800mW VTX
Performance Parameter
1.2GHz 800mW wireless video transmission module
Video system: PAL/NTSC
Audio input impedance: 1K / Video input impedance: 75
Input voltage: DC3.7-5V (recommended 5V)
Working temperature: -20C to +60C
Image transmission size: 38mm x 30mm x 8.3mm (without )
Video transmission mounting hole position: 25.5mm x 25.5mm x M2
Module weight: 7.3g
Delivery list:
1x 1.2G 800mW video transmission module
1x 1.2-1.3 SMA Dipole
1x mmcx to SMA adapter
1.2G 1.6W VTX
Product Parameters
Input voltage: 7-36V
Working frequency: 1.2G-1.3G
Available channels: 9-CH
Maximum output power: 1600mW
Maximum size: 37mm x 30mm x 8mm
Mounting hole: 25.5mm x 25.5mm
Weight: 7.3g
Number of channels: 9CH
Frequency: 1080/1120/1160/1200/1240/1258/1280/1320/1360 ()
Output power: 10 /200 /1600mW
S/N (Fo3MHz): >70dBc
Port: 50 Ohms
Input format: NTSC or PAL
Operating Temperature: -10C to +60C
Profile dimension: 28mm (L) x 21mm (W) x 3.1mm (H)
Function Description:
1. IRC tramp "PIT/10/200/1600mW"
2. Cycle through channels 1-9 by pressing and holding the channel selection button Compatible with 1 second.
3. Switch output power to 10/200/1600mW by pressing and holding the power selection button Compatible with 1 second.
4. Enter/exit PITMODE by pressing and holding the power selection button Compatible with more than 2 seconds.
Shipping list:
1x 1.2G 1.6W image transmission module
1x image transmission
1x Angle MMCX-SMA female adapter
1x 1.2G Y-shaped
