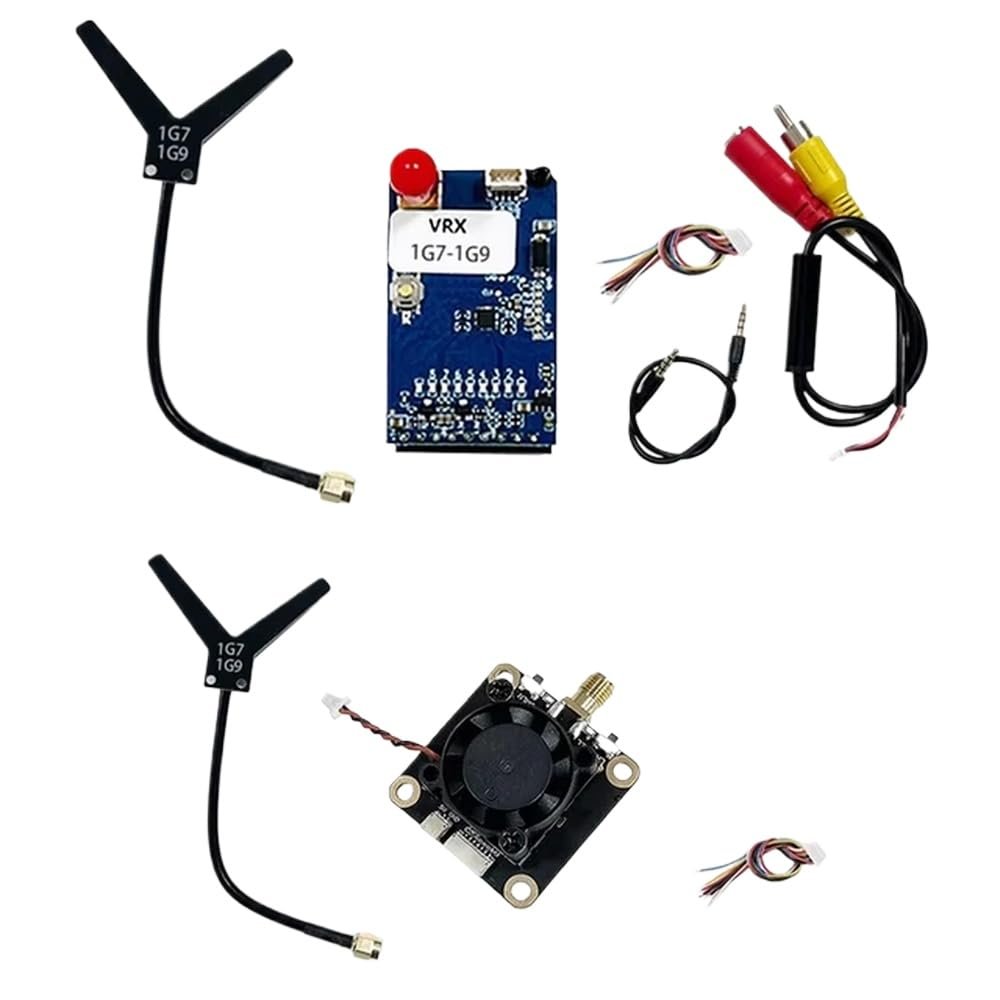

CUIPPWRJ 1.7G 1.9G 1.6W VTX 8CH Analog Video Transmitter Receiver Module Compatible with Goggles PAL/NTSC

Description

• Compact design Compatible with easy integration into various setups and drones.
• Multi-channel support with 8CH Compatible with versatile transmission options.
• Compatible with both PAL and NTSC formats Compatible with broader usability.
• Lightweight construction ensures minimal impact on drone flight performance.
• Ideal Compatible with use with popular goggles Compatible with enhanced immersive experiences.

1.7G 1.9G 1.6W VTX 8CH Analog Wireless Video Transmitter Receiver Module PAL/NTSC
VTX Features:
- 8 Channels
- Control protocol IRC Tramp, supports OSD parameter adjustment
- Power options: PIT 25mW, 200mW, 1600mW
- efficiency DC/DC power supply supports 7-36V
- Supports 5V voltage output
- Mounting hole dimensions: 305 x 305MM/M3 holes
Product Parameters:
Transmitter ( Side)
- Input Voltage: 7-36V DC (2-6S)
- Output Voltage: 5V/0.5A
- Weight: 156g (without )
- Dimensions (L x W x H): 37mm x 46mm x 175mm (including SMA and fan)
- Video System: PAL/NTSC
- Number of Channels: 8
- Channel Selection: Short press to switch frequency
- Transmission Frequency: 8CH (see frequency table Compatible with details)
- Transmitting Power: 33dBm1dBm (MAX)
- Power Adjustment: Power adjustment button, short press switch
- Power Levels: 25mW, 200mW, 1600mW
- Interface: SMA
- Modulation Type: FM
Features:
- 8 Channels
- Directly connects with compatible goggles
- sensitivity reception: -97 dBm
- efficiency DC/DC power supply supports 7-36V
- Supports 5V voltage output
- Channel switching via button
Product Parameters:
- Input Voltage: 7-36V DC (2-6S)
- Output Voltage: 5V/0.5A
- Video Format: PAL/NTSC
- Number of Channels: 8
- Channel Selection: Short press to switch frequency
- Receiving Frequency: 1680-1960MHz
- Sensitivity: -97 dBm (MAX)
- Interface: SMA
- Modulation Type: FM
Package Contents:
- 1 x VTX
- 1 x
Color may vary due to different batches.
