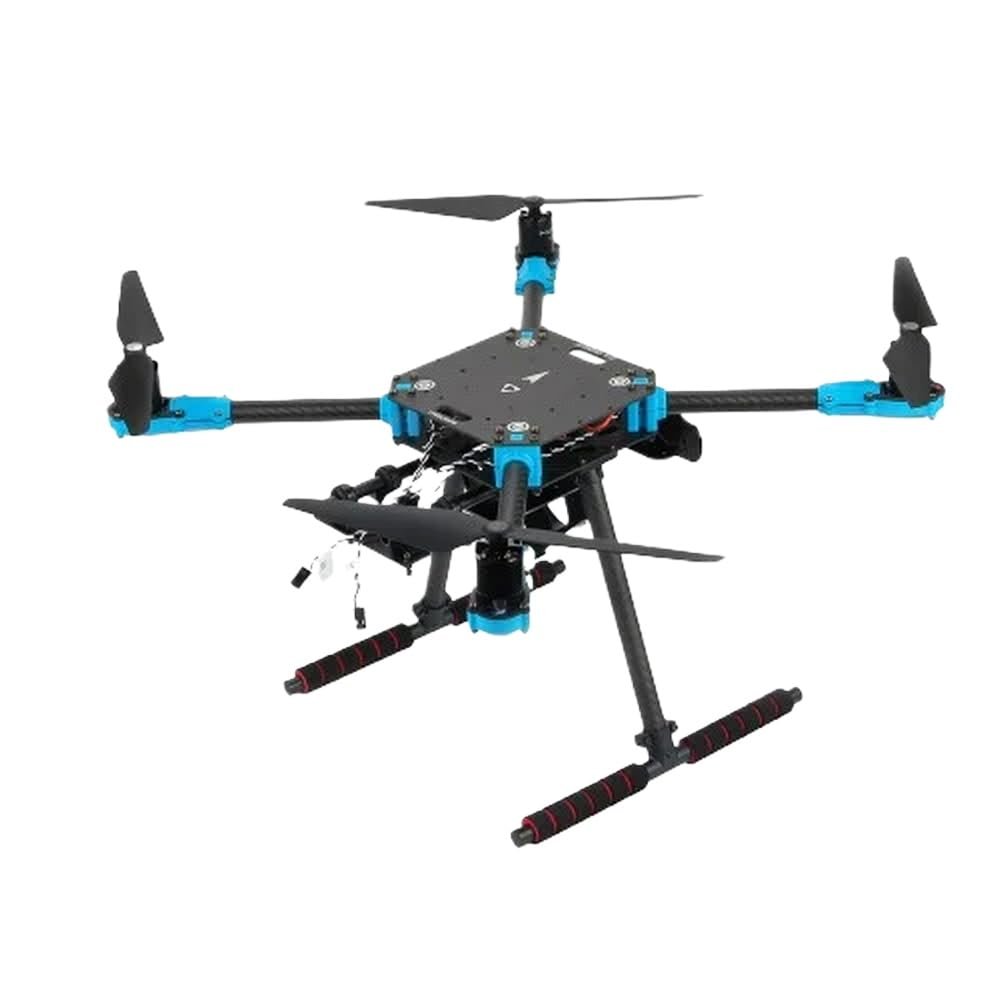

CUIPPWRJ X500 V2 Frame Compatible with 500mm Wheelbase Carbon Fiber Frame 2216 KV920 Motor 20A ESC 1045 XT30 XT60 PDB Combo(X500 V2 ARF Kit)

Description

• Model: X500 V2 Frame designed Compatible with a 500mm wheelbase, ideal Compatible with versatile drone projects.
• Motor: Equipped with 2216 KV920 motor, ensuring powerful thrust and responsive handling in the air.
• ESC: Includes a 20A ESC, providing reliable power management and smooth acceleration Compatible with control.
• : Comes with 1045 , designed Compatible with excellent lift and enhanced efficiency.
• Connectivity: Features XT30 and XT60 connectors Compatible with easy connection and versatile power options.

HolyBro X500 V2
Contents
X500 V2 ARF (SKU30125):
X500 V2 Frame
With Preinstalled Items:
Motors Holybro 2216 KV920 Motor (4 pcs)
ESCs BLHeli S ESC 20A (4 pcs)
1045 Propellers (6 pcs)
Power Distribution Board XT60 plug Compatible with & XT30 plug Compatible with ESCs & peripherals
X500 V2 Frame (SKU30120):
Body Full Carbon Fiber & Bottom plate (144 x 144mm, 2mm thick)
Arm strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
Landing gear 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Platform board With mounting holes Compatible with GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm rod x 250 mm long rail mounting system
mount with two Straps
Hand tools Compatible with installation
Mechanical Specification:
Wheelbase: 500mm
Motor mount pattern: 16x16mm
Frame Body: 144x144mm, 2mm thick
Landing gear height: 215mm
Space between and bottom plates: 28mm
Weight: 610g
Recommendation Combination
(Not Included):
Flight Controller - Pixhawk 5x, Pixhawk 4, Pixhawk 4 , Durandal, Pix32 v5
Power Module - PM02D, PM02 V3
GPS - Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
- 4S 2000-5000mAh Lipo
