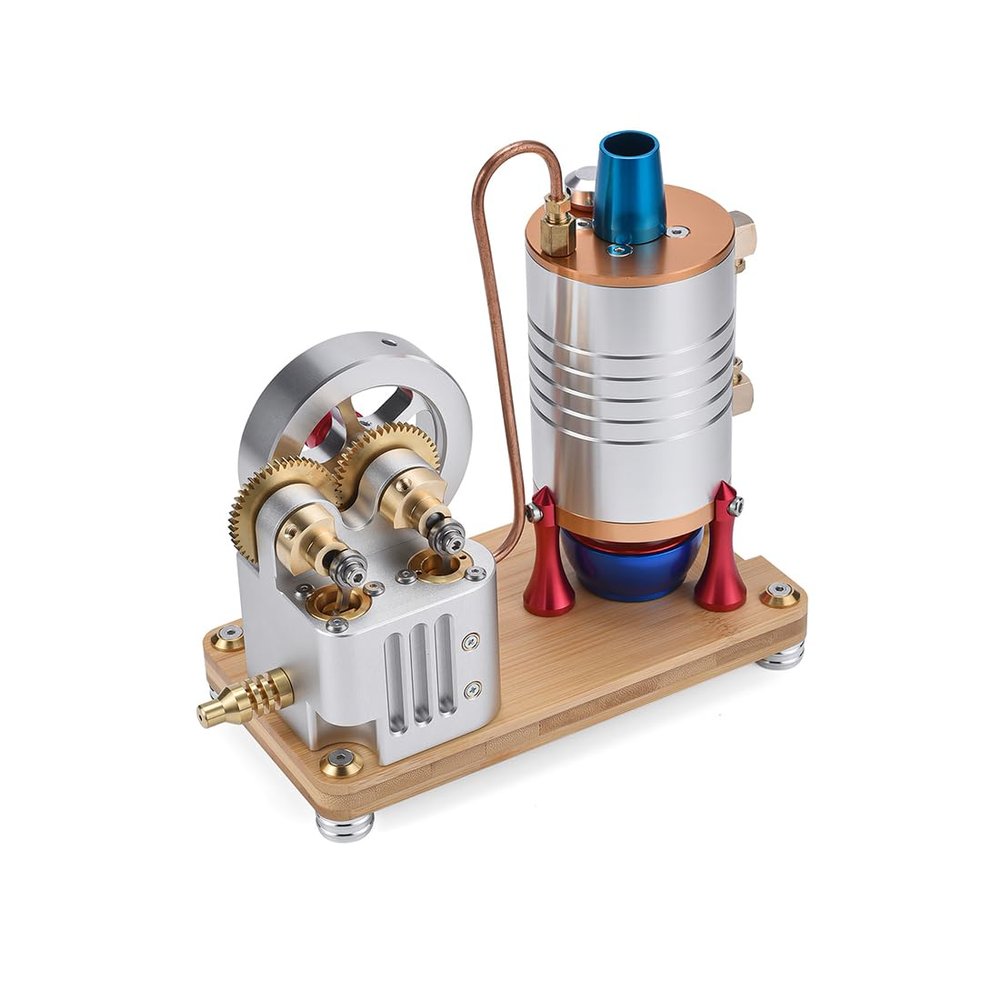

DAOYU All-Metal Vertical Dual-Cylinder Oneway Piston Steam Engine Model Semi-Circular Dynamically Balanced Crankshaft Educational Collectible Mechanical Model (RTR Version)

Description

• High efficiencyThe K007 vertical piston steam engine is equipped with a CNC-machined aluminum vertical boiler, whose conical combustion chamber design can maximize heat absorption and improve steam generation efficiency.
• High precisionThe overall CNC molding design reduces the errors caused by multi-component assembly. The main body formed in one time is not only structurally strong, but also has a high level of overall precision control.
• SafetyThe innovatively designed safety valve can automatically release pressure when the pressure exceeds the set value to ensure safe operation.
• ReliabilityThe water level observation system prevents the boiler from drying up, thereby increasing the service life and reliability of the engine.
• StabilityThe brass crankshaft adopts a semi-circular balanced design, combined with precision brass gears, to ensure smooth and efficient power transmission. At the same time, the stainless steel connecting rod with F684 precision bearings and four F696 high-precision bearings for gears and crankshafts ensure that the engine runs quietly, stably and extends its service life.

All-Metal Vertical Dual-Cylinder Oneway Piston Steam Engine Model Semi-circular Dynamically Balanced Crankshaft Educational & Collectible Mechanical Model (RTR Version)

Specifications:

.Material: Stainless Steel + Brass + Aluminum Alloy + Bamboo
.Model: All-metal Vertical Twin-cylinder One-way Piston Steam Engine & Boiler Model
.Item Number: K007
.Engine Form: RTR Version
.Boiler Capacity: 167ml
.Boiler Outer Diameter: 68mm
.Piston Diameter: 14mm
.Piston Stroke: 12mm
.Flywheel Diameter: 78mm
.Boiler Endurance: 25min
.Product Weight: 1700g
.Product Dimensions: 22 x 10 x 19.7cm
.Package Dimensions: 26 x 20 x 15cm
.Package Weight: 2100g
.Paking: Box
.Ages: 16+

Package Including
.Steam Engine Set *1
.Boiler *1
.Alcohol Lamp *1
.Instructions *1
