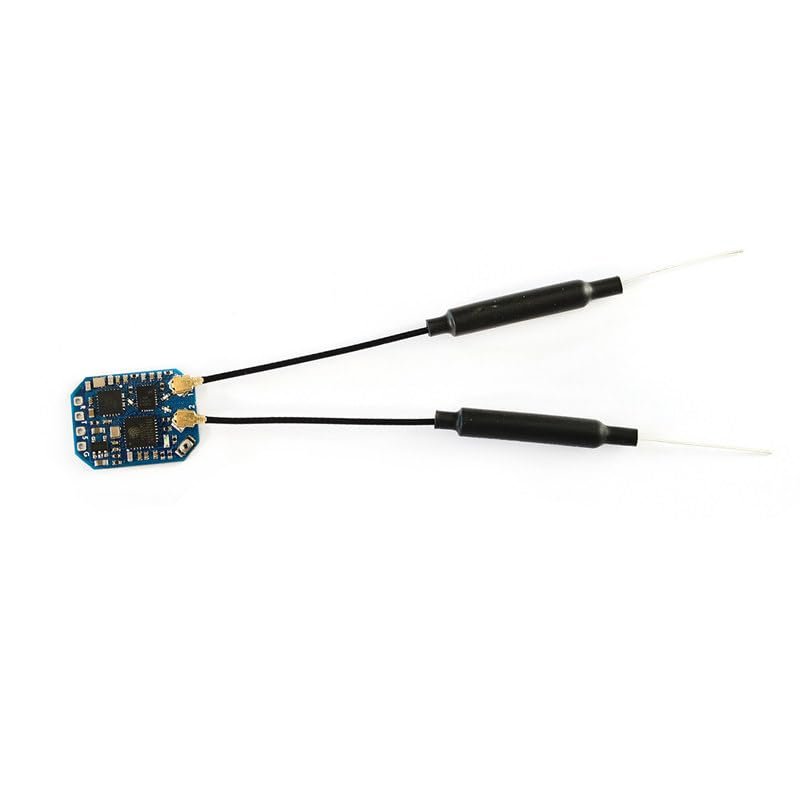

DBLCAST Parts for MATEK ELRS-R24-D R24D ELRS-R24-S R24S ELRS 2.4G Receiver CRSF for RC FPV Racing Freestyle Micro Mini Long Range Drones(ELRS-R24-D)

Description

• With precision workmanship, durable in use.
• Professional accessories for easy operation
• Good compatibility and fits well
• Complete functions and stable performance
• Guaranteed quality, the first choice for professionals and enthusiasts
• Direct replacement of damaged parts.

ELRS-R24-D Specifications
ESP8285, SX1280IMLTRT
PA/LNA: SE2431L
connector: IPEX MHF 1
RF Frequency: 2.4GHz ISM
Telemetry power: 22.5dbm
Diversity (antenna-switching), default ANT2
Receiver protocol: CRSF
Input voltage: 4~9V DC @ 5V pad
Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
PCB size: 21mm x 15mm
Weight: 3g w/ 2x antennas
Packing: 1x ELRS-R24-D, 2x IPEX MHF1 Antennas
Firmwares
ExpressLRS MATEK_2400_RX
ELRS-R24-D: enable "USE_DIVERSITY" (checked) when flashing in ExpressLRS configurator
ELRS-R24-S Specifications
ESP8285, SX1280IMLTRT
PA/LNA: AT2401C
molex 479480001 SMT
RF Frequency: 2.4GHz ISM
Telemetry power: 20dbm
Receiver protocol: CRSF
Input voltage: 4~9V DC @ 5V pad
Power dissipation: 40~45mA(before binding), 60~65mA(binding), 90~95mA(wifi mode)
PCB size: 21mm x 15mm
Weight: 1.2g
Packing: 1x ELRS-R24-S
Firmwares
ExpressLRS MATEK_2400_RX
ELRS-R24-S: disable "USE_DIVERSITY" (unchecked) when flashing in ExpressLRS configurator
