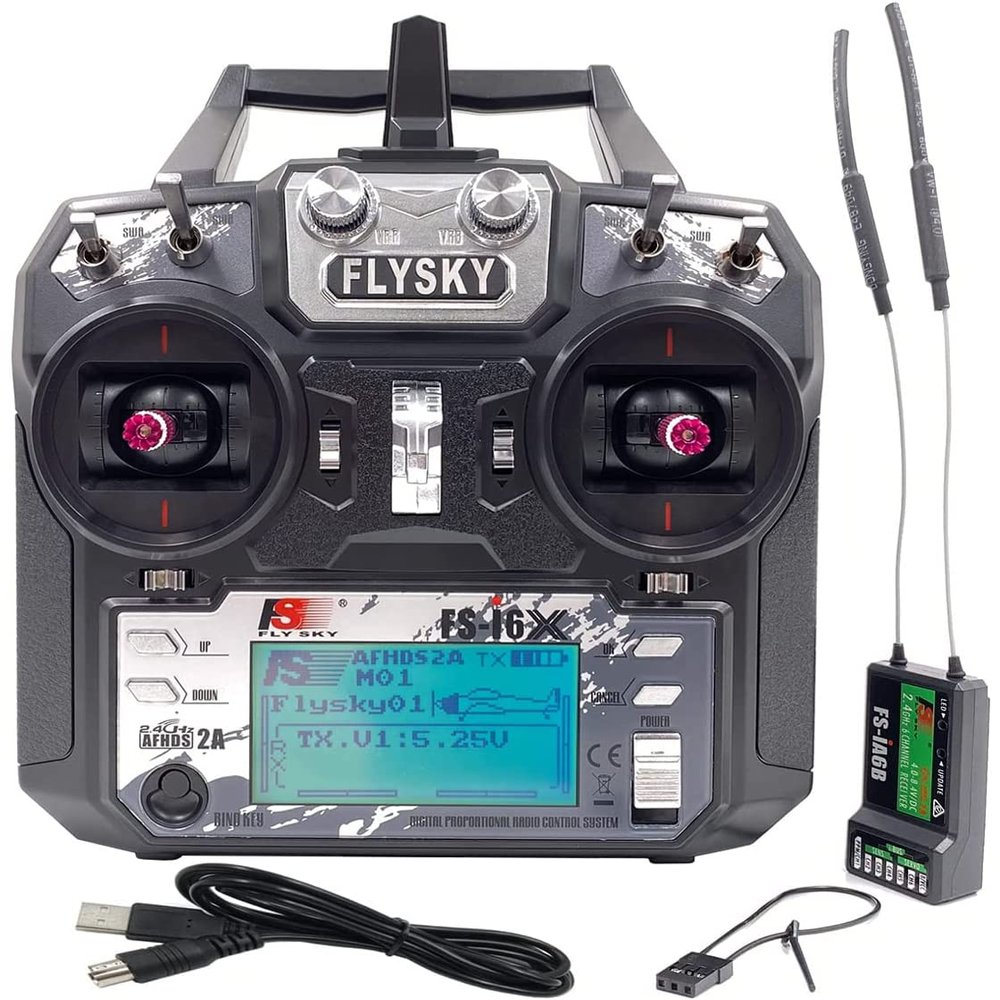

DTXMX FS-i6X 6CH RC Transmitter and Receiver FS-iA6B 2.4GHz Radio Controller for RC Quadcopter FPV Racing Drone, Compatible Flysky AFHDS2A RX

Description

• Multi-channel Hopping Frequency --- This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters. Compatible FLYSKY AFHDS 2A Receiver
• Unique ID Recgnition System --- Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
• Bidirectional communication --- capable of sending and receiving data, the transmitter can display the voltage value data of the receiver FS-iA6B. (The voltage value of the power battery requires the purchase of FS-CVT01 Voltage Collection Module for installation)
• Omni-directional Gain Antenna --- The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
• Low Power Consumption --- The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

The FS-i6X and FS-iA6B was bind well, you don't need to bind again when you receive it.
If it is not bound to other receiver operations, it is not necessary to insert the binding plug.

If you have IA10B receiver, you can use 10 channel.
I6X open 10 channel method
Long press the OK button for 2 seconds to enter the menu setting
Select System setup to enter,
Press down to the last item Aux SWitches auxiliary switch setting to enter,
SwA B C D is set to select On to turn on Ch6, changed to Ch10
Long press the CANCH key to automatically save and exit.

Description:
Item: FS-i6X RC Transmitter
*Pushing up and down the left throttle stick will not automatically return to center
Channel: 6-10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A/AFDHS
Modulation Type: GFSK
Low Voltage Warning: <4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC,4*AA battery (not included)
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Model: model 2(left hand throttle)
Compatible FLYSKY AFHDS 2A Receiver

FS-IA6B Specifications:
Item Name: FS-IA6B
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
Channel resolution: 1024 steps
Bind port: yes
Power port: yes(VCC)
Power: 4V -6.5V DC
Weight: 14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15mm
Certificate: CE,FCC

Package Included:
1X FS-i6X Transmitter
1X FS-iA6B Receiver
1X Bind plug
1X Upgrade Cable
No included the battery
