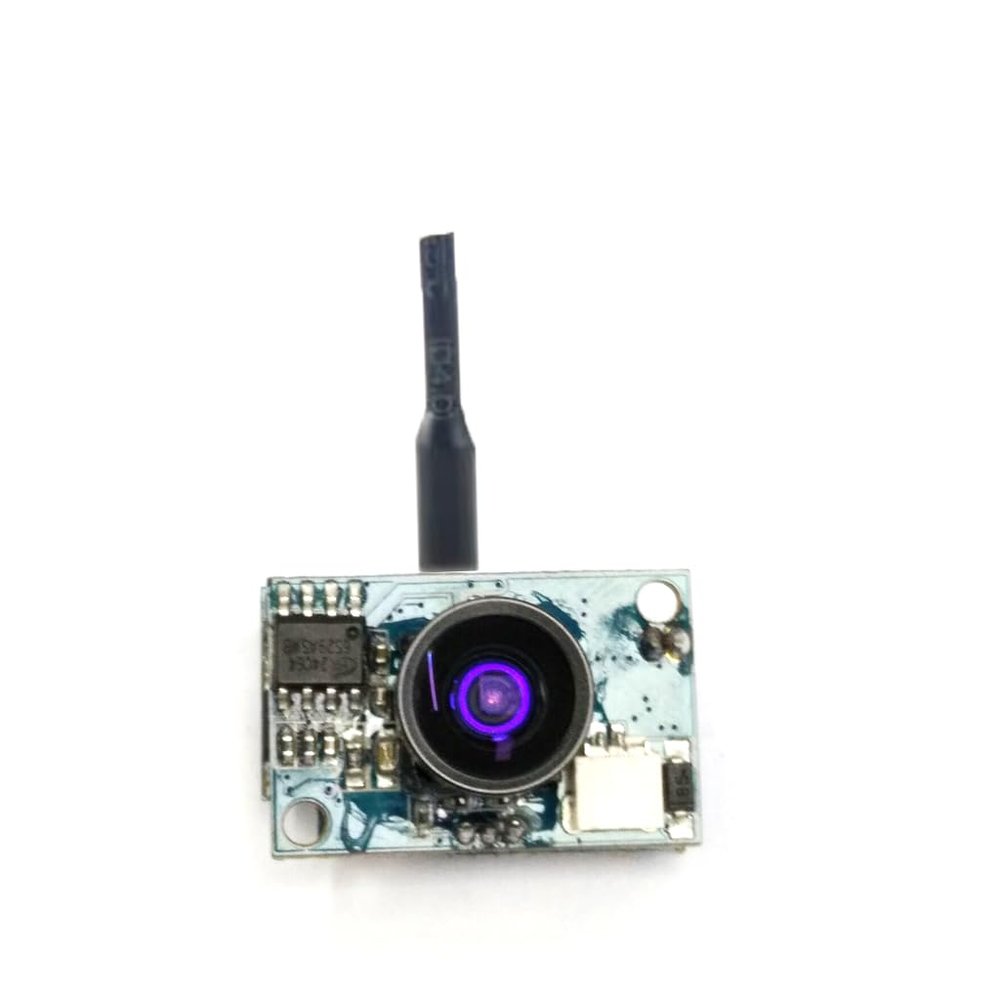

FEICHAO 58G 48CH 1200TVL Camera Transmission HD Camera for Quadcopter Drone

Description

• Frequency: 5.8G; Channel: 48CH (6 channel*8 Frequency point); Bands: A-F.Channe1:1-8.
• Transmission power: 25mw-200mw The adjustable.
• Working voltage: 3.3-5.5V; Working current: 350mA-550mA/5v.
• Clarity: 1200TVL; Signal System: PAL/NTSC Switch adjustable.
• Size: 15*23*9.5mm.

FEICHAO 58G 48CH 1200TVL Camera Transmission HD Camera for Quadcopter Drone

Parameters:
Frequency: 5.8G
Channel: 48CH (6 channel*8 Frequency point)
Bands: A-F.Channe1:1-8
Transmission power: 25mw-200mw The adjustable
Working voltage: 3.3-5.5V
Working current: 350mA-550mA/5v
Clarity: 1200TVL
The lens: 150 -170
Signal System: PAL/NTSC Switch adjustable
Size: 15*23*9.5mm
Weight: 4.8g
lmaging device: 1/4 CMOs
Effective pixels: 1280H*1024V
Minimum illumination: 0.001LUX/F1.2
Working temperature: -10-50

Exegesis:
1. Channel Control:
(1) One button (the button is the channel increment function,) displays: 1-digit digital display LED. CH and bands are converted to each other to display the time 2s.
(2) Operation method: power-on ID B2, short press the button to adjust the channel; After pressing and holding the button for 2s, you can adjust the bands;
(3) The channel has a memory function.
2. RF Power Level: Pull-out Switch 2 ON 25mw, Pull-out Switch 2 OFF 200mw.
3. Image flip up and down function: 1 ON PAL switch, 1 OFF NTSC switch.
4. Keep pressing the button for 5S to flip the image up and down. (if you have special needs, you can customize this function)
