FGR4S V2 AFHDS 3 Receiver Single for Bidirectional PWM PPM IBUS Output for NB4 PL18 Transmitter RC Car Boat(2PCS)

Description

• It uses an internal single for with two-way transmission capabilities and is designed to be compact and easy to install.
• 2.4GHz 4 channel receiver is compatible with Noble FS-NB4 PL18 Transmitter, good for Rc Car and Rc Boat.
• FGr4S adopts AFHDS 3, u0027s third-generation automatic frequency hopping digital system. Easy to bind and very fast link-up, quick and extremely stable in performance.
• Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.
• The receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system controller.

Product description

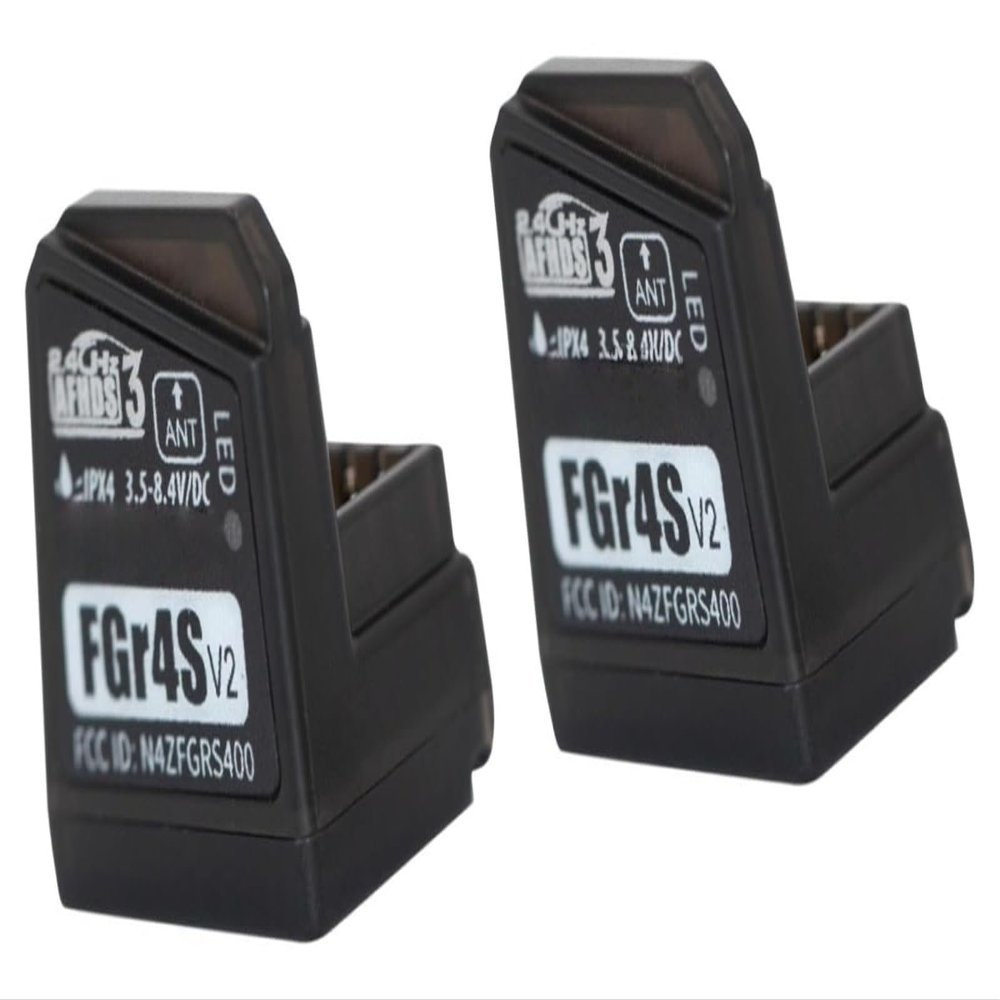

FGR4S V2 4 Channels Receiver
The 4-channel receiver uses the automatic frequency hopping digital system AFHDS 3, which is easy to bind and connects very quickly, with high speed and extremely stable performance.
Compatibility and Versatility
The 2.4GHz 4-channel receiver is compatible with the Noble FS-NB4 PL18 transmitter, making it suitable for use with RC cars and RC boats for a seamless, reliable connection.
Multiple Data Output Options
The receiver supports PPM/i-bus/PWM data output, making it suitable for use with AFHDS3 system controllers, providing flexibility and compatibility for various setups.
Compact and Lightweight
The ultra-small size and ultra-lightweight design of the receiver help save space and reduce the overall weight-bearing of the RC vehicle or boat.

Binding:
To ensure good signal strength, make sure the receiver for is as far away from any metal parts when installing the receiver.
1. Insert the binding into the receiver's BIND port.
2. the power into any other port, and the receiver's LED will start to flash quickly indicating that it has entered bind mode.
3. Put the transmitter into bind mode; (See the transmitter's instruction manual for more information.)
4. Binding is successful when the receiver's LED starts to flash slowly. Remove the power and bind cables from the receiver *if the transmitter is bidirectional the reciever status indicator will not fash slowly.
5. Reconnect the power to the receiver.
6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.

Specification:
frequency: 2.4GHz
protocol: AFHDS 3
Mode type: RC Car / Boat
Range:> 200m (ground)
for type: Built-in single for
Power: 3.5-8.4V
RSSI: Supported
Data port: PWM / PPM / i.bus
Dimensions: 26 * 22 * 17.3 mm
