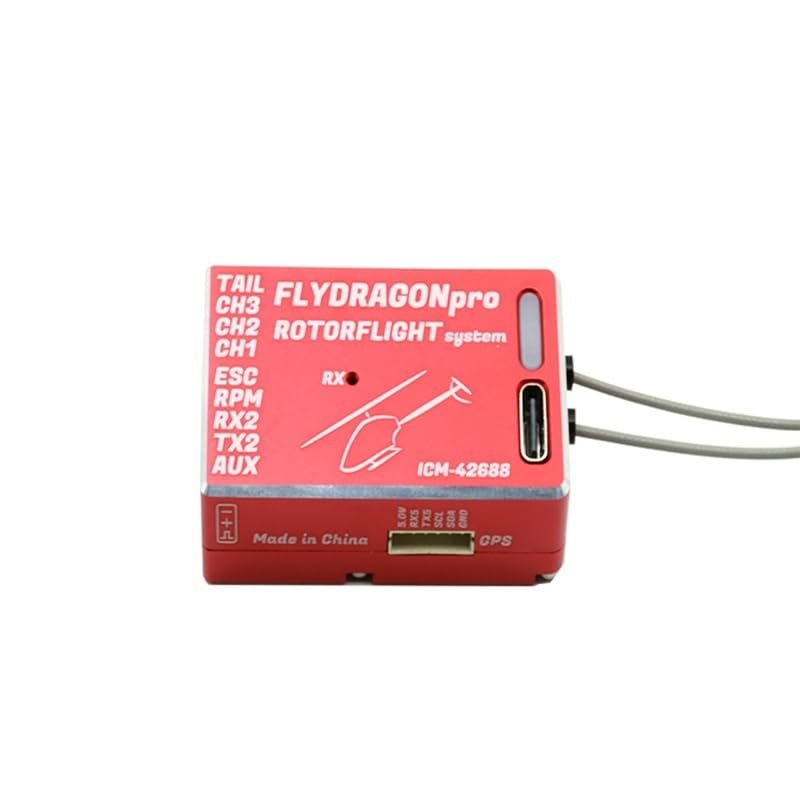

FlyDragonPRO-RotorFlight Flybarless System with Built-in ELRS Receiver for RC Helicopter 250-700 Size - Remote Control Helicopter Electronics/SteamRC Flybarless System (Red (FD005-1))

Description

• The FlyDragonPRO-RotorFlight is the ultimate flybarless system, designed for 250700 class helicopters and packed with cutting-edge technology in a compact 27.5g unit.
• Powered by an ultra-fast STM32F722RET6 216MHz MCU and an ICM-42688-P IMU, it ensures precision flight control that meets even the most demanding pilot's needs.
• It features a built-in ExpressLRS 2.4GHz receiver, giving you ultra-low latency and long-range connectivity without needing any external RX.
• With integrated 128MB BlackBox memory and full voltage telemetry from battery to BEC, it gives pros the insight they need for fine-tuning.
• The unit supports various ESC protocols from PWM to DSHOT600 and even PROSHOT, ensuring full compatibility with modern setups.
• A built-in barometer, active buzzer, WS2812B LED support, and Type-C USB port make setup intuitive and feedback crystal-clear.
• Whether you're flying for sport or pushing limits in competition, the FlyDragonPRO delivers power, control, and flexibility in one sleek system.

*** Specifications:
- MCU: STM32F722RET6 [216MHz]
- IMU: ICM-42688-P
- BARO: SPLO6-001
- BLACKBOX: W25N01GVZEIG [128MB]
- ADC: BAT [0-62V] BEC [0-30V] BUS [0-8V]
- RX: ExpressLRS [2.4GHz]
- LED: WS2812B
- BUZZER: 5V ACTIVE
- DC: 5-18V [IN] 5V@2A [OUT] 3.3V@0.5A [OUT]
- Dimentions: 45x27x14.5mm
- Weight: 27.5g
- USBType-C
- Serial ports: UART2, UART3, UART5
- External receivers: CRSF, S.BUS, F.PORT, F.BUS, GHOST, SUMD, SUMH, IBUS, XBUS, XBUS/RJ01, EXBUS, PPM, MSP, DSM (with its own BEC step-down 3.3V power module)
- ESC protocols: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT

*** Package Includes:
- FlyDragon PRO RotorFlight Unit * 1pc
- Connectors for UART ports * 1 set
- Gyro Double Side Mount Tape * 2pcs

*** Disclaimer:
Rotorflight is open-sourced software, no warranty or implied as to the quality and reliability of this firmware, it is supported by the users themselves as a community. Rotorflight is under GPLv3 license. If handled incorrectly, RC models can cause serious injury or even death, and you are solely responsible for your model if you decide to use Rotorflight firmware. Any injury or damage caused by the use of Rotorflight firmware is not the responsibility of the authors of Rotorflight, the designers of RF gyroscopes, or the distributors, so please use with caution.
