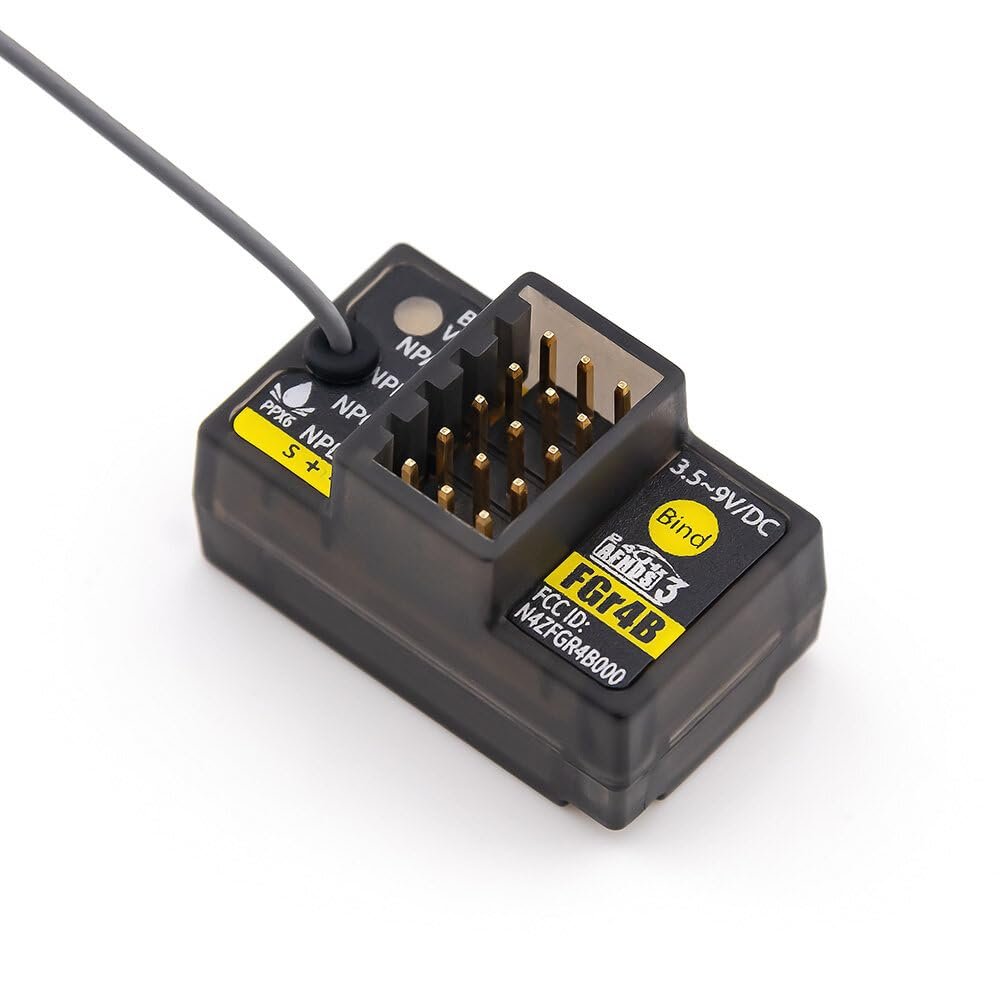

Flysky FGr4B 2.4G 4CH 3 AFHDS 3 Micro Mini Receiver PWM PPM i-Bus S.Bus i-bus2 Output for PL18 NB4 Lite RC Car Boat

Description

• The FGr4B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).
• It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals. It supports all AFHDS3 transmitter .
• Compatibility: The FGr4B receiver is compatible with all AFHDS 3 transmitters (Note:It is currently applicable to PL18 1.0.55, NB4 2.0.93 and NB4 lite 1.0.10and later versions. The high-frequency library used by the firmware is version 3.0.)
• Easy to bind and very fast link-up, quick and extremely stable in performance.
• Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.

Description:

Brand: FlySky

Model: FGr4B

PWM Channels: 4

RF: 2.4GHz ISM

2.4G Protocol: AFHDS 3

Antenna: Single Antenna

Input Power: 3.5~9V

Data Output: PWM/PPM/i-bus/S.BUS/i-bus2

Temperature Range: -10+60

Humidity Limit: 20%~95%

Online Update: Yes

Dimensions: 17*29*16.6mm

Weight: 6.4g

Colour: Black

Position: Front

Model Type: Car/Boat ect

Certification: CEFCC ID: N4ZFGR4B000

Adaptive transmitter: all transmitters supporting AFHDS3 (PL18, NB4, NB4 Lite etc.)

Binding:

- Press and hold the receiver BIND button [5] while powering on the receiver ,release the BIND button after receiver is powered on or powering on the receiver first, press and hold the BIND button 3 seconds , the LED [7] on the receiver will flash rapidly;

- Put the transmitter into bind mode;

- The binding process is complete when the LED on the receiver stops flashing and is on continuously.

If a transmitter that has had its radio frequency (RF Standard) set to AFHDS3 1 way (please refer to your transmitter user manual) enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing and is on continuously, the binding process is complete.

- Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise.

Package Included:

1 x FGr4B Receiver
