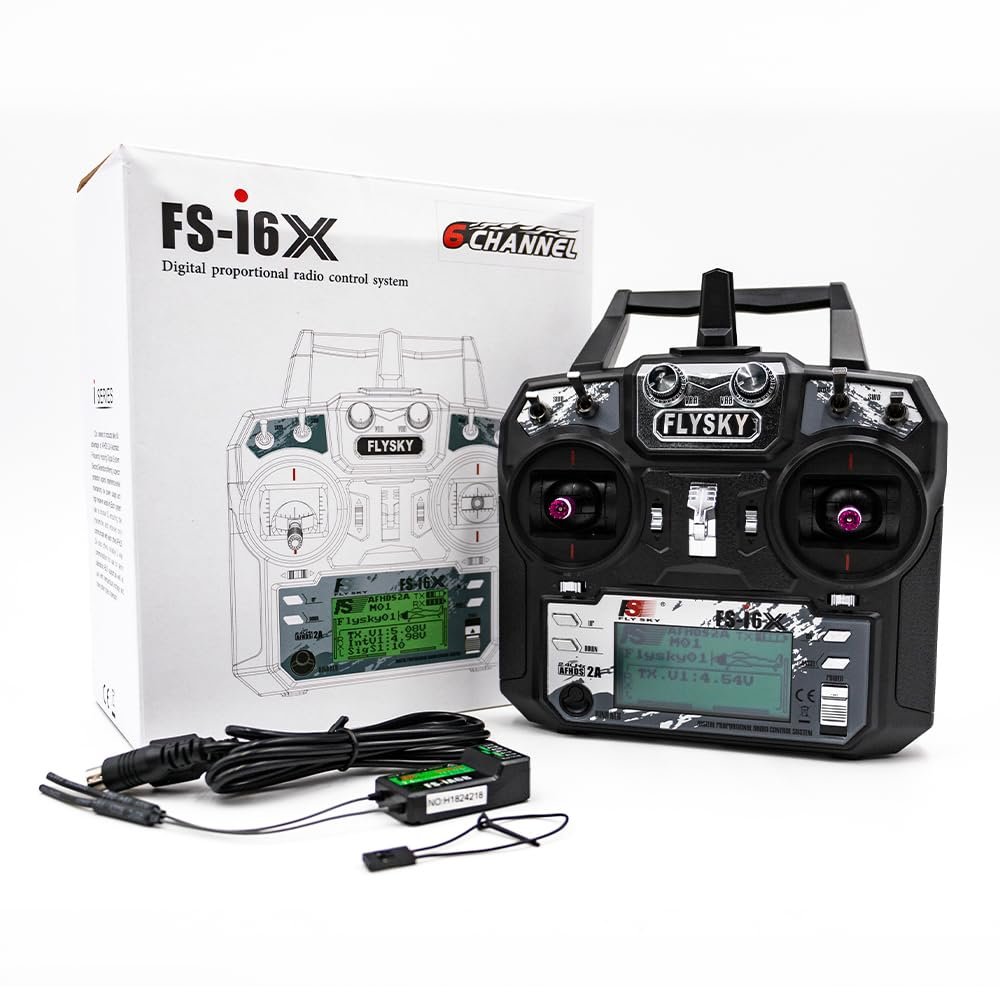

Flysky FS-i6X 10CH 2.4GHz RC Transmitter Controller with iA6B 6CH Receiver for Fixed-Wing, Glider, Helicopter, and RC Boat

Description

• Bi-Directional Telemetry: Supports two-way communication with receivers, enabling i-BUS sensor integration (temperature/altitude monitoring) and servo calibration.
• Smart Frequency Hopping: Operates across 135 channels (2.408- 2.475GHz) with 16/32 selectable frequencies (region-specific) and 140 hopping patterns to prevent interference.
• High-Gain Full-Band Antenna: Delivers superior transmission efficiency and reception sensitivity for stable, long-range control.
• Secure ID Pairing: Unique transmitter/receiver identification ensures encrypted connections and prevents unauthorized access.
• Ultra-Low Power Consumption: Advanced power management extends battery life to 10x longer than conventional FM systems.

The FS-i6X transmitter and FS-i6 receiver form a 6-channel 2.4GHz AFHDS 2A (Second Generation Enhanced Automatic Frequency Hopping Digital System) system that is compatible with both fixed-wing and helicopter aircraft.

FS-i6X RC Transmitter:
Channels: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter/Boat
Remote control distance: 500~1500m (in the air)
RF Range: 2.408-2.475GHz
RF Power: <20 dBm
RF Channel: 135
Bandwidth: 500 KHz
2.4GHzSystem: AFHDS 2A/ AFDHS
Modulation Type: GFSK
Sfick Resolution: 4096
Low Voltage Warning: <4.2V
DSC Port: PS/2 Port
Chargeable: No
Antenna Length: 26mm(Dual Antenna)
Battery: 1.5AA*4
Power: 6V DC 1.5AA*4
Display: STN Transflective Display, LCD128x64 Lattice, VA 73x39 mm, LCD with white backlight
Online Update: Yes
Color: Black
Size: 174x89x190mm
Weight: 392g

FS-iA6B Receiver:
Channels: 6 Channels
Model Type: Airplane / Glider / Helicopter
Frequency Range: 2.4--2.48GHZ
Bandwidth Number: 140
Transmitting Power: not more than 20 dBm
RF Receiver Sensitivity: -105 dBm
2.4G Mode: the second generation of an enhanced version of the Automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input power: 4.0- 8.4V DC
i-Bus interface: Yes
Data Acquisition interface: Yes
Dimension: 47 * 26.2 * 15mm
Weight: 14.9g

How to Enable 10 Channels on FS-i6X Transmitter
1. Access Menu
Long press (2 seconds) the OK button to enter main menu
2. System Configuration
Select "System Setup"
Scroll down to "Aux Switches" settings
3. Activate Channels
Set SwA, SwB, SwC, and SwD to "On"
Change Ch6 setting to Ch10
4. Save Settings
Long press CANCEL button to automatically save and exit
Note: This configuration expands your transmitter's capability from 6 to 10 channels for enhanced control options.

Package List:
1* FS-I6X Transmitter
1* FS-IA6B Receiver
1 * Bind Plug
1* Quick Start Guide
