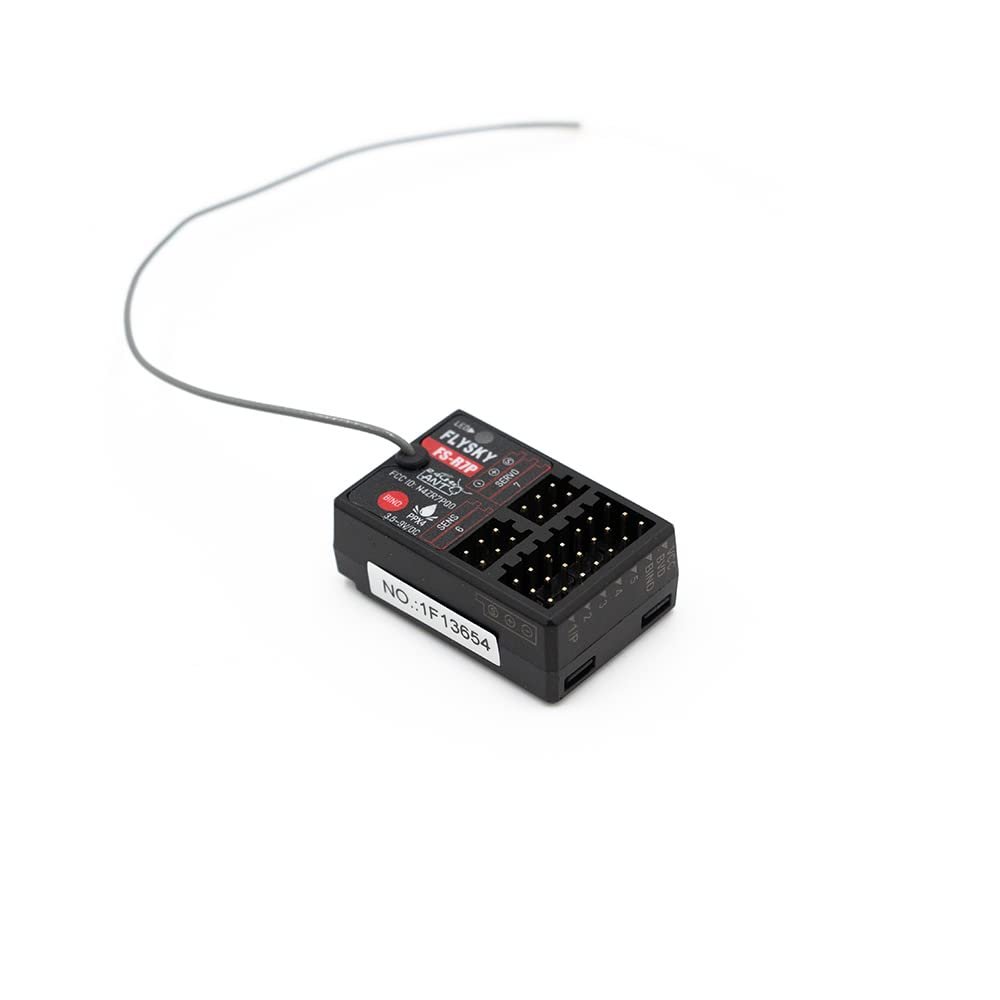

Flysky FS-R7P 7CH 2.4Ghz ANT Protocol PWM Output RSSI Mini Receiver for FS-G7P Transmitter RC Car Boat

Description

• FS-R7P based on ANT protocol is a receiver which provides seven channels.
• It has an external single antenna, can output PWM orPPM/i-BUS/S.BUS signal.
• It has a compact design. It can be adapted to a variety of model cars or boats
• Easy to bind and very fast link-up, quick and extremely stable in performance.
• Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.

Specifications:
Product Name: FS-R7P
Adaptive transmitter: FS-G7P( Adapts transmitters with ANT protocol)
Adaptive Models: Cars or boats
Numbers of Channels: 7
RF: 2.4GHz ISM
Maximum Power: <20dBm (e.i.r.p.) EU
Antenna: Single antenna
Distance: 300m (ground)
2.4G Protocol: ANT
Resolution: 1024
Data Output: PWM/PPM/i-BUS/S.BUS
Input Power: 3.5 ~ 9V/DC
Online Update: Yes
Temperature Range: -10C ~ +60C
Humidity Limit: 20% ~ 95%
WaterProof: PPX4
Dimensions: 35.0mm*23.3mm*13.3mm
Weight: 8.0g
Certification: CE, FCC ID: 2A2UNR7P00
Interface Introduction:
CH1~CH7: To output PWM signal (Additional, CH1 can output PPM signal). Can be connected to the servos, or other compatiable components.
BVD/VCC: During the battery voltage detecting process, a BVD harness is connected here. During normal operation, the power is applied to this interface.
BIND interface: During the binding process, a bind cable is connected to this interface.
SENS interface: For connecting i-BUS sensors.
SERVO interface: To output i-BUS or S.BUS signal, and support channel expansion in i-BUS type
Package :
1*FS-R7P Receiver
