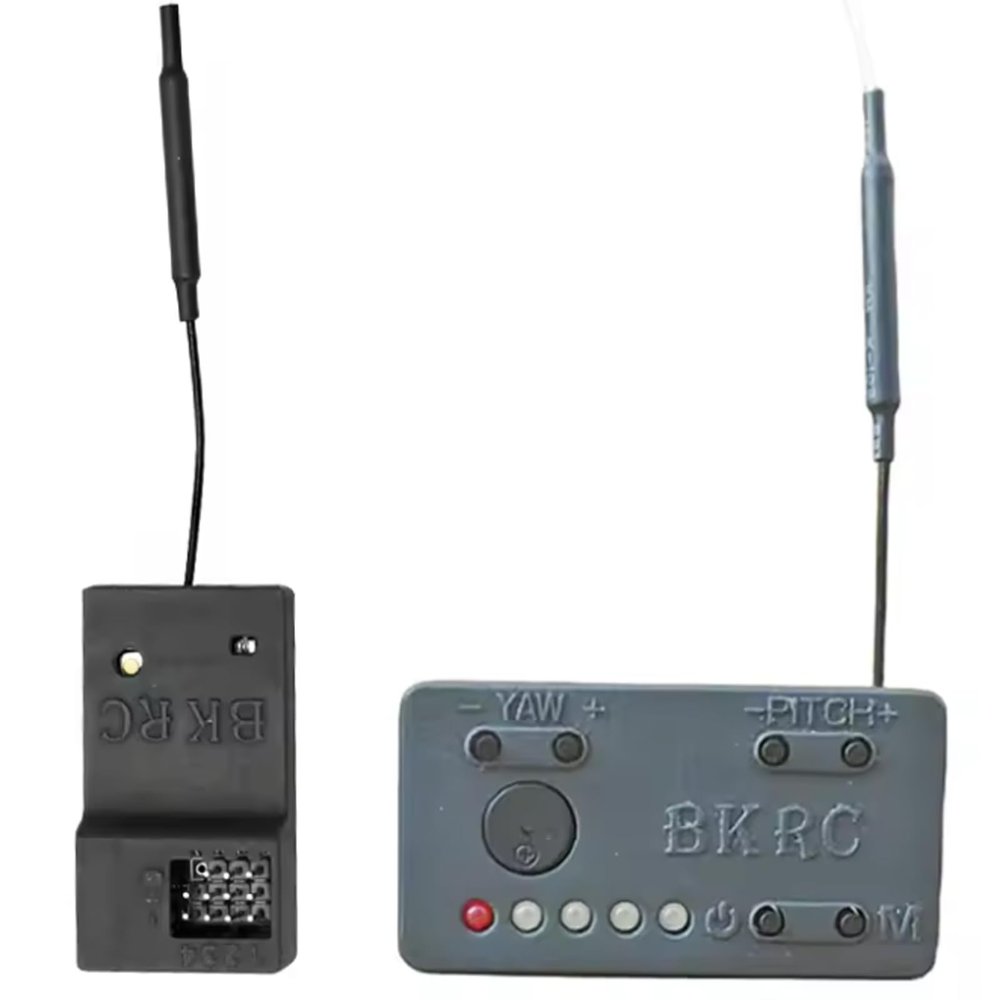

FPV Wireless Head Tracker Module Transmitter Receiver High-Precision Sensor for RC Car Aircraft First Perspective Control(V1.2 kit with Shell)

Description

• Wireless head tracking, Data transmission range extension, 2.4G independent RF coummunication
• No need to connect remote control
• One-click reset, runaway reset
• Omni-directional gain antanna: The high efficiency Omni-directional high gain antenna cuts down on interface, while using less power and maintaining a strong reliable connection.
• Unique ID recongnition system: Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Specification:
- Item name: head tracker module
- Transmitter air control distance: 1000m
- Transmitter ground control distance: 250m
- Transmitter built-in power: 400mAh
- Transmitter size: 55.8mm x 30.1mm x 16.3mm (25.7g)
- V1.2 receiver: 35 x 20.5mm (PCB board), about 3.8g (including antenna)
- Receiver operating voltage: DC 5-12V
- Operating frequency: 2.4GHz
- Equip with power line and USB charging cable
- Used for FPV drone RC airplane

Usage:
1.Power on/off Transmitter:
Long press the "on/off button" for 3 seconds to start and shut down.
Note: After turning on, the red light flashes. It is necessary to place the transmitter stationary on the desktop and the red light remains on for normal operation.

Frequency alignment:
- Step 1. Press and hold [PITCH+], then turn on the power and enter the frequency matching mode. A red light flashing quickly indicates that the transmitter is in the frequency matching mode.

- Step 2. Press and hold the button on the receiver, then power on the receiver, wait for the LED light to flash quickly, and the receiver will enter frequency matching mode; If the receiver LED turns on continuously, it indicates successful frequency alignment.

Attention:
Sensor calibration is only necessary when there is drift in the pan tilt. The calibrated data will be automatically saved, and there is no need for calibration when restarting.

4. Reset median:
Click the [M] button, the PTZ YAW axis back to center.

5.Travel setting:
-In normal working mode, press the [+] and [-] buttons of the corresponding channel to adjust the maximum movement range of the corresponding channel.

6. Positive negative setting:
- Press the "YAW+" and "YAW-" at the same time, the buzzer "Di,Di",switch "YAW" channel to positive and negative.
- Press the "PITCH+" and "PITCH-" at the same time, the buzzer "Di,Di",switch "PITCH" channel to positive and negative.

7. Fine adjust:
Long press the "M" button for 5 seconds, and it emits beep sound, red light double flashing, and then press "+" or "-" of YAW and PITCH botton to do fine adjusting of the servo.
Long press the "M" button for 5 seconds to quit the setting mode.

Package include:
1set x head tracker module
