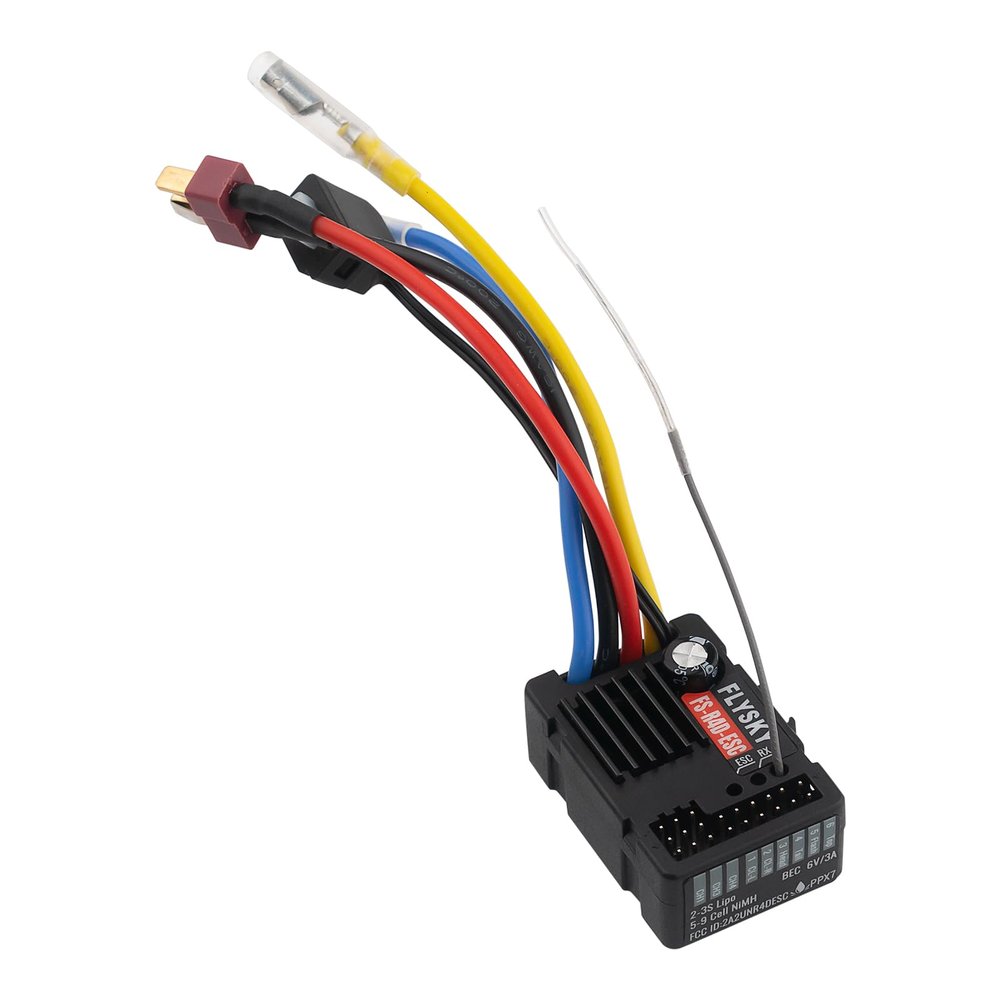

GoolRC Flysky FS-R4D-ESC Receiver, 2 in 1 2.4GHz 4CH Receiver with Speed and LED Control, ANT Protocol PWM Output Compatible with FS-G7P Radio Transmitter for 1/10 RC Crawler On-Road Off-Road Truck

Description

• Flysky FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with electronic speed control (ESC) and LED light set control. Compact design, with an external single antenna.
• Output of PWM signals and car light control signals, two-way transmission.
• Automatic binding, ESC parameters configurable at the transmitter side.
• Battery voltage protection, over-voltage protection, overheating protection and locked rotor protection.
• Adaptation to a variety of vehicle models, such as 1/10 crawler, on-road car, off-road short course truck, and truck.

Features:
Flysky FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with electronic speed control (ESC) and LED light set control. Compact design, with an external single antenna.
Output of PWM signals and car light control signals, two-way transmission.
Automatic binding, ESC parameters configurable at the transmitter side.
Battery voltage protection, over-voltage protection, overheating protection and locked rotor protection.
Adaptation to a variety of vehicle models, such as 1/10 crawler, on-road car, off-road short course truck, and truck.

Specifications:
Product Model: FS-R4D-ESC
Compatible Transmitters: FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)
Model Type: 1/10 crawler, on-road car, off-road short course truck, and truck
Number of Channels: 4
Number of Light Interfaces: 6
RF: 2.4GHz ISM
2.4G Protocol: ANT
Antenna: Single External Antenna
Input Power: LiPo (2-3S)/ NiMH(5-9Cell)
BEC Output: 6V/3A
Continuous/Peak Current: 40A/200A
Motor Type: Brushed Motor
Applicable Motors: 550, 540, 390, 370 or 280 Brushed Motor
Data output: PWM
Resolution: 4096
Temperature Range: -10? to +60?
Humidity Limit: 20%-95%
Distance: >150m (Ground Distance without interference)
Waterproof: PPX7
Online Update: None
Dimensions: 44*30*16.7mm
Weight: 43g (Without pin header)

Package Information:
Package Size: 6*4*2cm
Package Weight: 45g

Package List:
1 * Flysky FS-R4D-ESC Receiver Set
