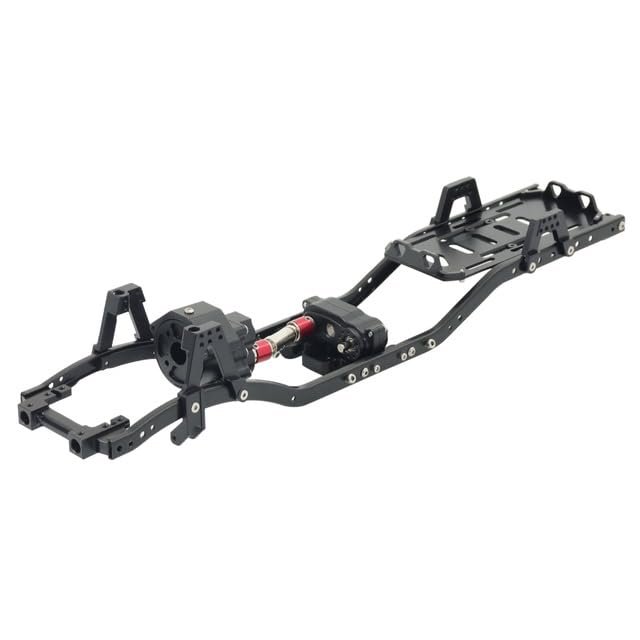

Greendhat SCX10 Metal Chassis Frame kit 313mm Wheelbase with Prefixal Planetary Gearbox Portal Axle for 1/10 RC Crawler Off Road Truck ( Color : Frame Chassis )

Description

• Made of high-quality materials, temperature-resistant and corrosion-resistant, safe and reliable to use, durable and long-lasting
• Double C-channel steel chassis rails
• Aluminum portal axles add substantially more ground clearance
• Front planetary gearbox design
• Dual transmission mode transfer case

Easy installation: The installation method is convenient, the replacement is very simple, and the life of the machine can be extended after replacement
SCX10 Metal Chassis Frame kit 313mm Wheelbase With Prefixal Planetary Gearbox Portal Axle for 1/10 RC Crawler Off Road Truck
Specifications:
CNC Machined
Anodized finish
Double C-channel steel chassis rails
Aluminum portal axles add substantially more ground clearance
Front planetary gearbox design
Dual transmission mode transfer case
Advanced internal spline stainless steel drive shaft
All aluminum alloy links for durability.
The oil shocks are an all-new design with hard anodized,the shocks are also tunable so you can achieve the best dampening rate.
4pcs strong magnets body posts
A Real All Metal Frame Chassis kit
Designed for 1:10 RC Crawler Truck
Perfect fit 1/10 313mm wheelbase Jeep Wrangler hard body
Requires Assembly
Size:
Total Length: 435mm/17.13in
Wheelbase: 306mm-313mm Adjustablew
Front Axle Total Width: 218mm/8.58in
Front Axle Pin to Pin Width: 190mm/7.48in
Rear Axle Total Width: 218mm/8.58in
Rear Axle Pin to Pin Width: 190mm/7.48in
Total Weight: 1.66kg
Gear ratio:
Motor gear: 15T
Planetary Gearbo: 8:1
Transfer Case: 1.2:1
Portal Axle: 3.75:1
Final Drive Ratios=36:1
What's Included(Optional):
1*Frame chassis
1*6pcs Set
1 x All Metal Chassis Kit
Required to Complete (not included):
Body
Motor (Recommend 27T or 35T)
Electronic Speed Controller "ESC" (Recommend QUICRUN 1060 60A)
Transmitter & Receiver 3 Channels or more
Standard Size Servos Recommend 20KG or 25kg
Battery (Consult your "ESC" manual, Recommend 2S Lipo)
Charger (Consult your battery guide)
Note:
Shown installed with 1/10 Rubicon JK 4 door hard body for example (Not Included)
