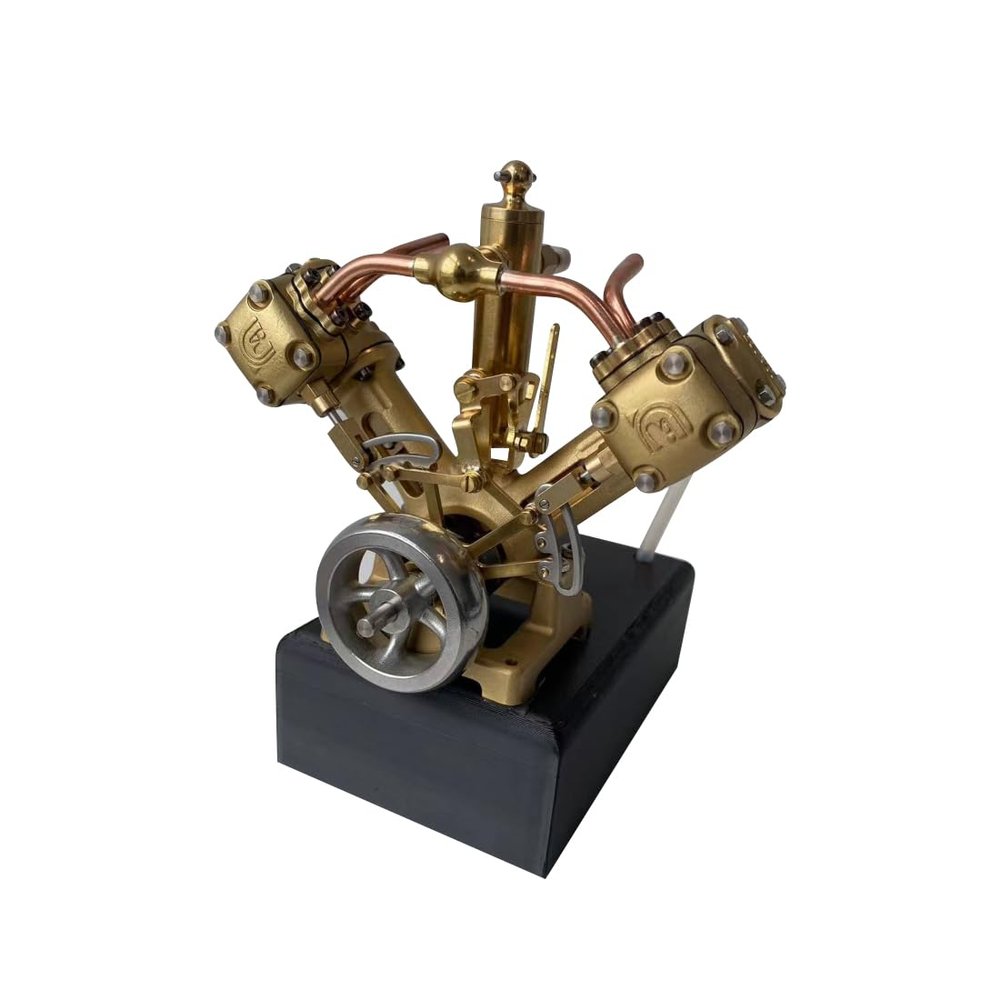

Hanll RW V-2 Steam Engine Model CNC Brass Twin-Cylinder Reversible Steam Power Unit with Stephenson Valve Gear, Compact High-Torque Marine Engine for Hobbyists (6cc, 3000RPM)

Description

• Compact Twin-Cylinder Steam Engine The RW V-2 is a miniature, high-precision steam engine with a compact body and powerful performance. Though small in size, it delivers double-cylinder torque in a single-cylinder length.
• CNC Brass Structure with Stainless Steel Liner Constructed from die-cast brass and fitted with stainless steel cylinder liners, composite piston rings, and ball-bearing crankshaft. All components are processed using CNC machining for smooth operation and durability.
• Reversible with Stephenson Valve Gear Equipped with a full Stephenson valve system, allowing precise forward and reverse rotation. Ideal for RC boats requiring maneuverability and control in tight spaces.
• Perfect for 70130cm Steam-Powered Boats Optimized for use in model boats, this engine delivers 0.03 hp at up to 3000 RPM with high torque output, making it an excellent choice for functional marine applications.
• Collector-Grade Engineering Display Whether youre a hobbyist, educator, or collector, the RW V-2 offers aesthetic beauty and mechanical precision. Packaged securely in a box and ready for installation or display.

SpecificationsProduct Name: RW V-2 Steam Engine
Displacement: 6cc (1.5cc 2 cylinders)
Bore: 12.2 mm
Stroke: 12.7 mm
RPM: Max 3000 RPM
Power Output: 0.03 HP
Working Pressure: 2 kg/cm
Maximum Torque: 1200 g/cm
Product Weight: 600 g
Product Dimensions: 12 8.1 10.6 cm
Packaging: Boxed
Packaging Dimensions: 18 14.5 10 cm
Applicable Boat Size: 70130 cm
Recommended Age: 16 years and above

Package Includes
1 RW V-2 Steam Engine (Fully Assembled)
1 Instruction Manual
