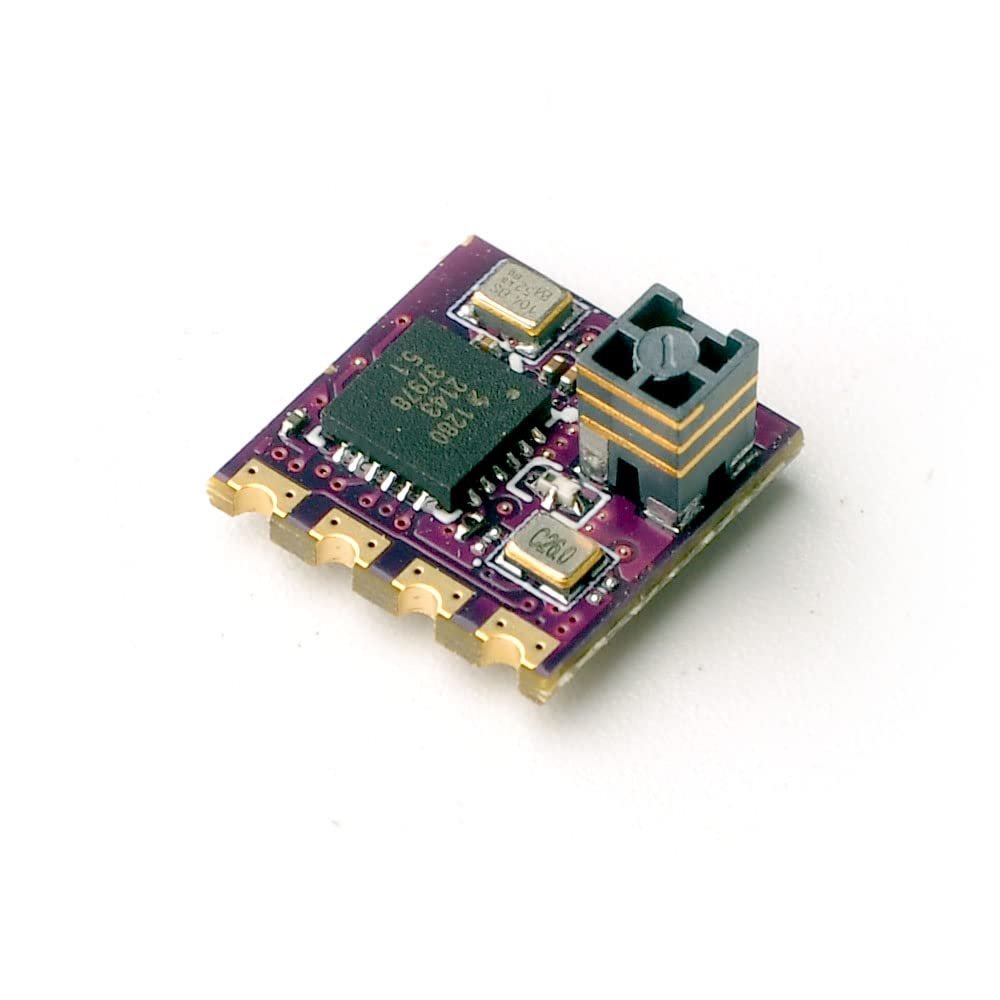

Happymodel 0.44g 2.4GHz ExpressLRS ELRS EP2 TCXO Receiver with Built-in Antenna Long Range Low Latency RX for Micro Carbon Fiber FPV Racing Quadcopter Quad Frame kit RC Drone Frame Rekon 3

Description

• Happymodel 2.4GHz ELRS Nano series receiver is based on ExpressLRS open source architecture and program, features ESP8285 MCU. Therefore, you can upgrade the firmware via WIFI, which is very user-friendly.
• To flash the firmware, Power up the receiver while keeping the transmitter turned off. After a while, you can find the ExpressLRS hotspot. Connect to this hotspot using a PC or mobile phone. The password is expresslrs, then you can visit 10.0.0.1 to upload the firmware
• Low latency and high refresh rate, they are very suitable for FPV racing and long range FPV cruising while being ultra-light and ultra-small, making them very suitable for Tinywhoop.
• With this tiny teeny receiver you can achieve great range even comparable to crossfire or Tracer, ghost. Don't just take my word for it, search Crossfire vs expresslrs on youtube and hear what Joshua Bardwell has to say.
• Weight: 0.44g (with onboard antenna), Package includes: HappyModel 2.4GHz EP2 TCXO RX Express LRS Receiver

EP2 ELRS receiver has been one of the hottest ExpressLRS receivers since it was released. Now the new TCXO version EP series receiver features a "temperature compensated crystal oscillator", accurate frequency and excellent performance in extreme temperature environments making these TCXO much more reliable.

Type: ISM2.4GHz
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.44 gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Default Firmware: HappyModel_EP_2400_RX V3.0.1 version
Built-in TCXO (temperature compensated crystal oscillator)
