HAPPYMODEL 2-4G ELRS EP1 EP2 EP1DUAL TCXO Receiver Tiny ExpressLRS RX for Racing Quadcopters Drone (EP1 Dual TCXO)

Description

• EP1 EP2 ELRS receiver the new TCXO version EP series receiver apply "temperature compensated crystal oscillator", accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.
• EP1 TCXO ISM2-4G Receiver: ESP8285 MCU; SX1280(SX1281)IMLTRT RF Module; Omni directional antenna; Frequency Range: 2400 M to 2500 M; Receive refresh rate: 25~500; Working voltage: 5v; Peak gain: 2.23dB; Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version.
• EP2 TCXO ISM2-4G Receiver: ESP8285 MCU; SX1280(SX1281)IMLTRT RF Module SMD Ceramic antenna; Frequency Range: 2400 M to 2500 M; Receive refresh rate: 25~500; Working voltage: 5v; Peak gain: 3.7dB; Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version.
• EP1 Dual TCXO ISM2-4G Receiver: ESP32 PICO D4, dual SX1280(SX1281); Antenna connector: IPEX MHF 1/U.FL; RF Frequency: 2-4G (2400~2480M); Telemetry power: >19dbm; Receiver protocol: CRSF; Input voltage: +5V DC @ "+" pad; Default Firmware out of factory: Unified_ESP32_2400_RX Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW.
• EP1 EP2 ELRS receiver is the hottest Tiny ExpressLRS receiver, suitable for racing quadcopters drone.

HAPPYMODEL 2-4G ELRS EP1 EP2 EP1DUAL TCXO Receiver Tiny ExpressLRS RX for Racing Quadcopters Drone

EP1 EP2 ELRS receiver is the hottest Tiny ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply "temperature compensated crystal oscillator", accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.

EP1 TCXO Receiver:
Type: ISM2-4G
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
Omni directional antenna
Frequency Range: 2400 M to 2500 M
Receive refresh rate: 25~500
Working voltage: 5v
Weight: 0.41 gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)

EP2 TCXO Receiver:
Type: ISM2-4G
ESP8285 MCU
SX1280(SX1281)IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 M to 2500 M
Receive refresh rate: 25~500
Working voltage: 5v
Weight: 0.44 gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
Built-in a TCXO (temperature compensated crystal oscillator)

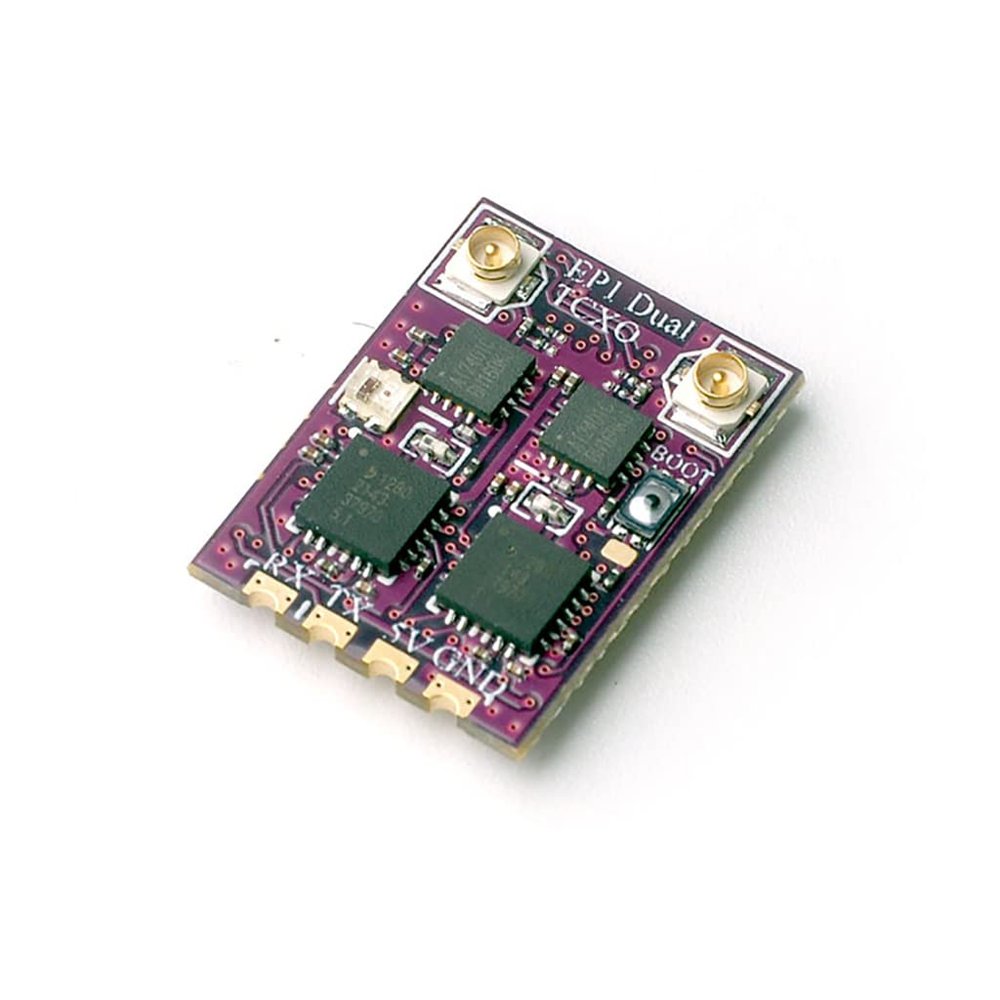

EP1 Dual TCXO Receiver:
Type: ISM2-4G
ESP32 PICO D4, dual SX1280(SX1281)
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 2-4G (2400~2480M)
Telemetry power: >19dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ "+" pad
PCB size: 19mm x 14mm
Weight: 1gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Default Firmware out of factory: Unified_ESP32_2400_RX Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
