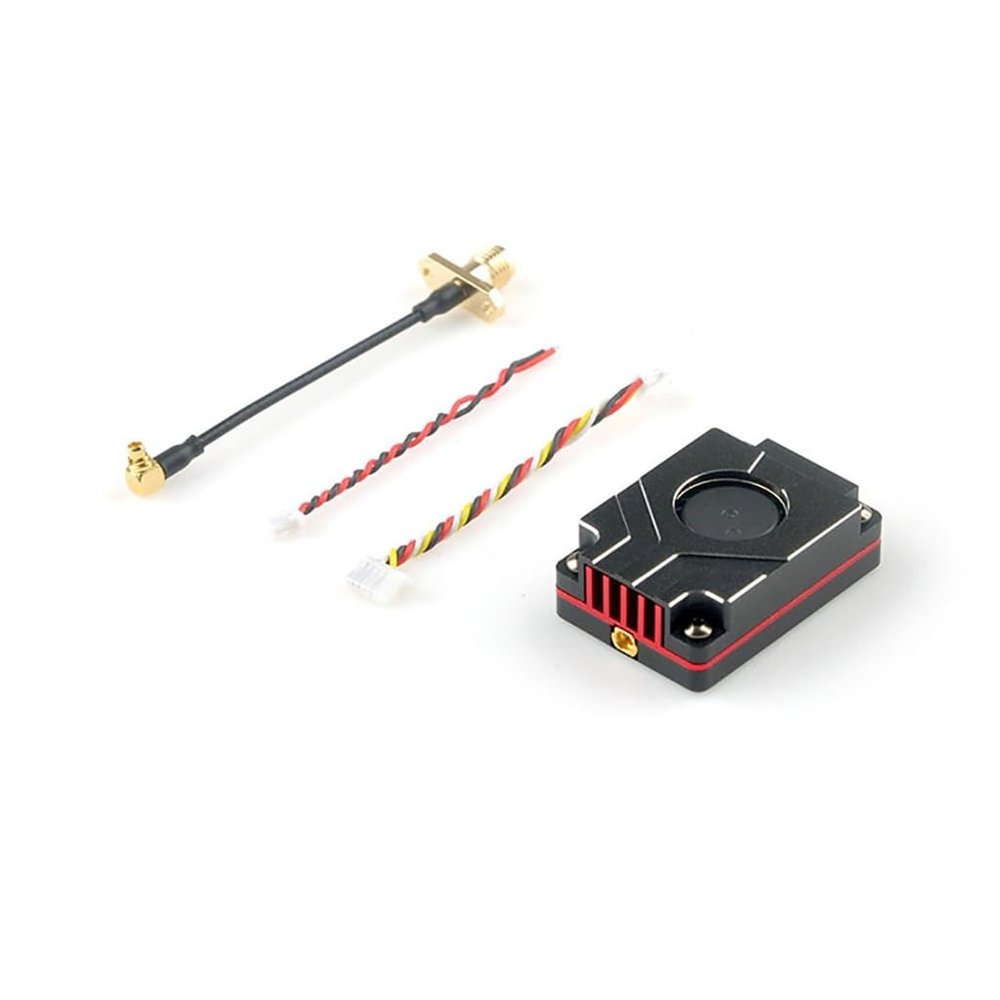

HAPPYMODEL 58G 48ch 1.6w 2.5w VTX 6S DC 7-26V for Long Range Drone Quadcopter (2.5w)

Description

• Type Optional: 58G 2.5W / 58G 1.6W
• DC 7-26V(6S lipo)
• BEC output: DC 5V(Max 500mA)
• 58G 2.5W with Cooler Fan
• Antenna Connector: MMCX 50

HAPPYMODEL 58G 48ch 1.6w 2.5w VTX 6S DC 7-26V for Long Range Drone Quadcopter

Parameters:
5.8GHz 1.6W VTX Specifications
Model Name: 58G 48ch-Hiker 1.6WVTX
Model: Hiker -58G 1.6W
Channel: 48CH (Default is 37CH version)
Power level: PIT-25-400-800-MAX
DC 7-26V(6S lipo)
BEC output: DC 5V (Max 500mA)
Video in: CVBS PAL/NTSC
Audio in: 6.5M MONO
Antenna Connector: MMCX 50
External Control: IRC TRAMP
Size: L39mm*W26.5mm*H9mm
Weight: 14.5gram

58G 2.5W VTX Specifications
Model: Hiker-58G 2.5W
Channel: 48CH (Default is 37CH version)
Power level: PIT-25-500-1000-2500
DC 7-26V(6S lipo)
BEC output: DC 5V(Max 500mA)
Video in: CVBS PAL/NTSC
Audio in: 6.5M MONO
Antenna Connector: MMCX 50
External Control: IRC TRAMP
Size: L39mm*W26.5mm*H13mm
Weight: 20.5gram
With Cooler Fan
