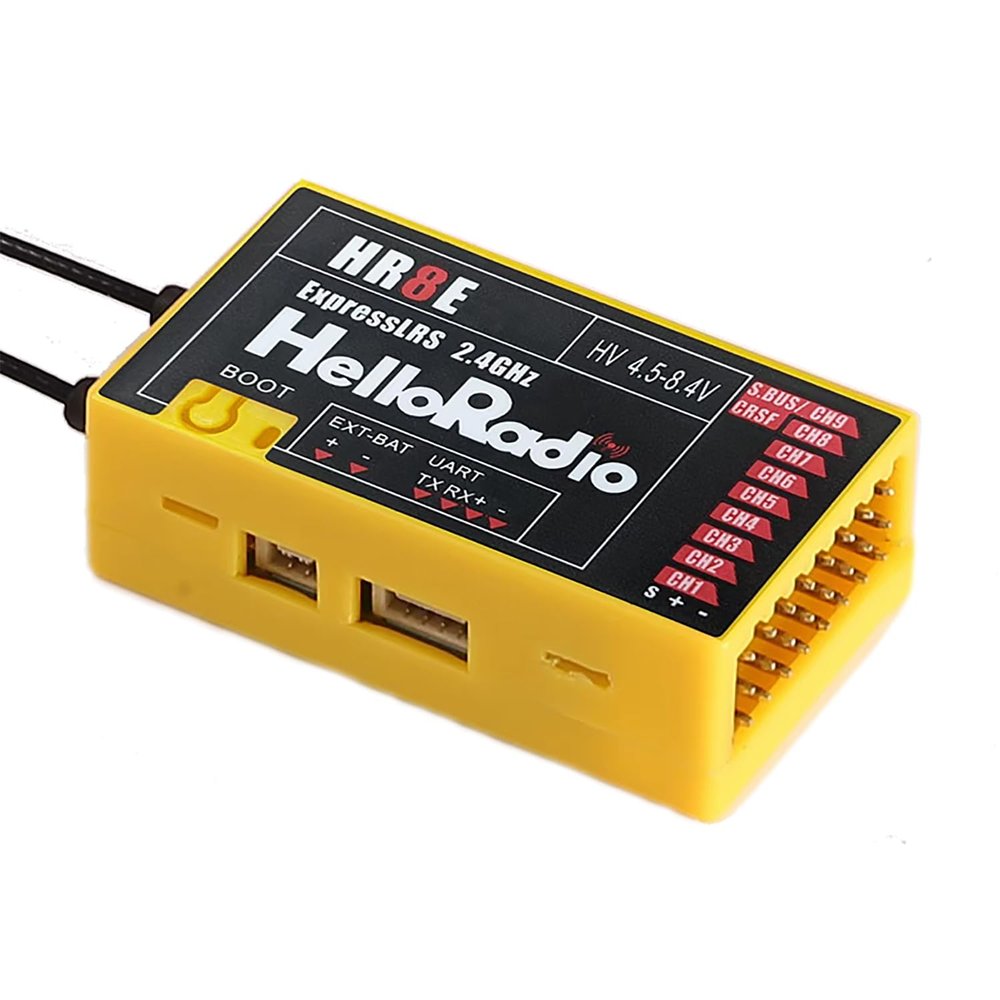

HelloRadio ELRS PWM Receiver 2.4GHz 9CH HR8E ExpressLRS Receiver Module for FPV Fixed Wing RC Airplane Car Boat Vehicles (Yellow)

Description

• HelloRadio HR8E 2.4G ExpressLRS features high performance, good stability, fast response speed and long range, providing an excellent experience for your RC model airplane enthusiasts.
• The HelloRadio HR8E PWM receiver is suitable for fixed-wing and model airplane.
• It supports 9CH PWM and can use 8 servos simultaneously.
• It also has built-in receiver voltage feedback and aircraft battery voltage feedback functions, with automatic switching and detection.
• A 4-wire CRSF interface is provided to facilitate the expansion of sensors in the future. The HR8E ELRS PWM receiver has dual antennas.

The HelloRadio HR8E ELRS 2.4G ExpressLRS PWM receiver is suitable for fixed-wing RC airplane Vehicles. It can use up to 8 servos simultaneously and has built-in receiver voltage return and aircraft battery voltage return functions, capable of automatically detecting and switching. A 4-wire CRSF interface is provided to facilitate the expansion of sensors in the future. The HR8EG has dual antennas.

Items: HR8E 2.4GHZ ELRS PWM Receiver
Power supply: DC 4.5-8.4V
Antenna type: 20cm high sensitivity dual antenna
Wireless Protocol: Pre installed ExpressLRS 3.3.0
Output channel: 9CH PWM
Return power: Max 100mw (adjustable in LUA)
Return battery voltage detection range: DC4.0-35V
Bus interface: CRSF
Weight: 11g
Dimensions: 48*27*15mm

BIND(Traditional way)
1. When the receiver is powered on, the LED light will turn on and then the power will be cut off.
2. Repeat the above steps twice.
3. When the receiver is powered on for the third time, the LED light flashes twice, indicating that it has entered the frequency synchronization mode.
4. Select the BIND operation on the remote control.
