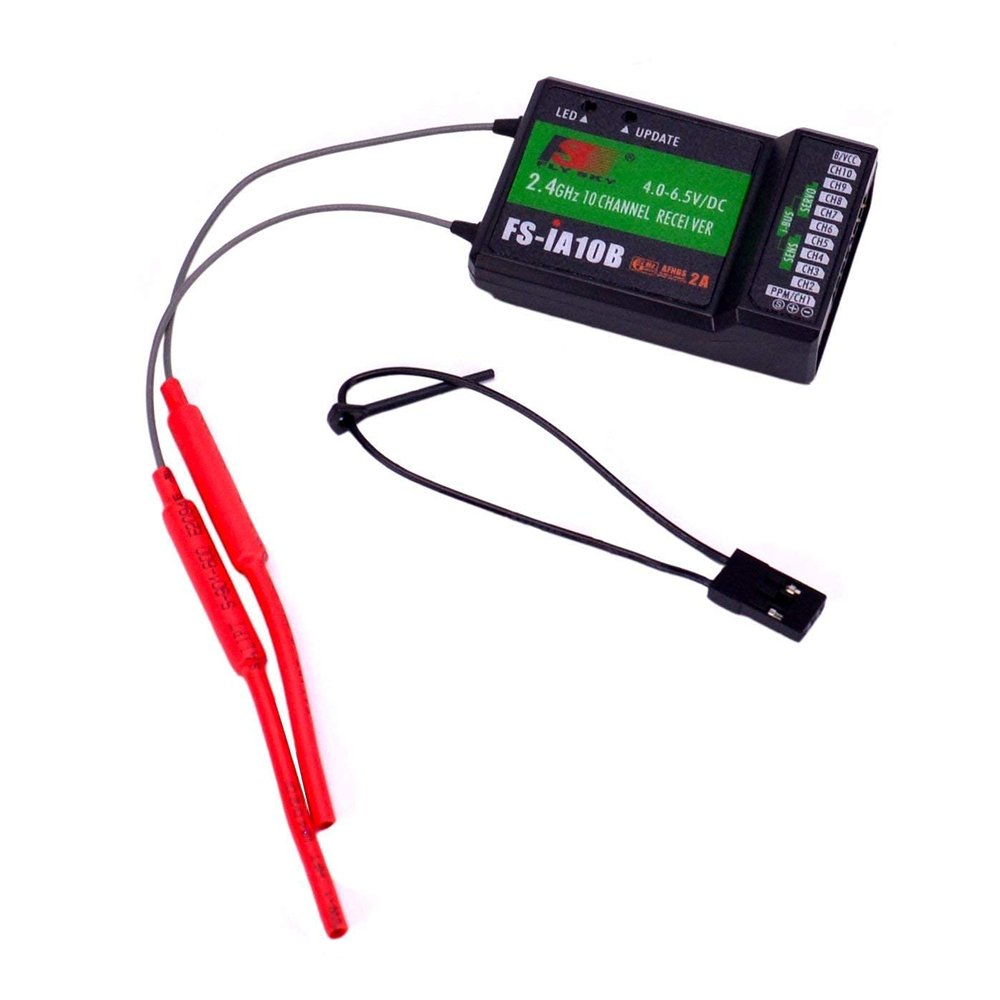

HNW Flysky FS-iA10B Receiver 2.4G10CH PPM Output Compatible for FS I6 I10 I6S I6X Transmitter (FS-iA10B)

Description

• Compatible transmitter: FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G.
• The 2.4g Flysky FS-iA6B is a 6 channel receiver designed for Airplane / Glider / Helicopter.
• It's compact and reliable, very lightweight, easy to hookup.
• With i-Bus and data acquisition interface, input power: 4.0-6.5V DC,frequency range: 2.4055--2.475GHZ, support PPM output.
• It's compact and reliable,very lightweight,easy to install. Applicable to aircraft /glider/helicopter, with I-Bus interface and data acquisition interface.

Note:The receiver cannot be directly connected to the battery, you need to connect the battery through an ESC or a step-down device, and ensure that the voltage is between 4.0-6.5V.

Specification:

Number of Channels: 10

Suitable models: Airplane / glider / helicopter Health

Frequency range :2.4-2 .48 GHz

Number of newspapers: 160

Transmitting power: not more than 20dBm

Receiver sensitivity:-105dBm

2.4G modes: automatic frequency second generation digital system

Encoding: GFSK

Antenna length: 26 mm * 2(dual antenna)

Weight: 19.3g

Input power :4.0-6.5V DC Dimensions: 47*33.1*14.7mm

Color: Black

Certification: CE0678,FCC

i-BUS Interface: Yes

Data acquisition interface: Yes

Package Included:

1x Flysky fs-iA10B 10ch receiver

1x Bind plug

Matching(bind)

A. Install the battery to 2.4G transmitter and shut it down.

B. Insert the matching lines to the channel BIND/CH3 port of the receiver.

C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are flashing and this means the receiver are going to the matching status.

D. Press and hold the button on the transmitter, and then switch on the power supply.

E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)

F. Release the match button on the transmitter, take out the match line.

G. Install the server and then test.

H. If the tests fail, please repeat the action above.

G. If the tests success, then insert the power supply port into VCC, match complete.

(The above ways of match is only suitable for FLYSKY 2.4G products)
