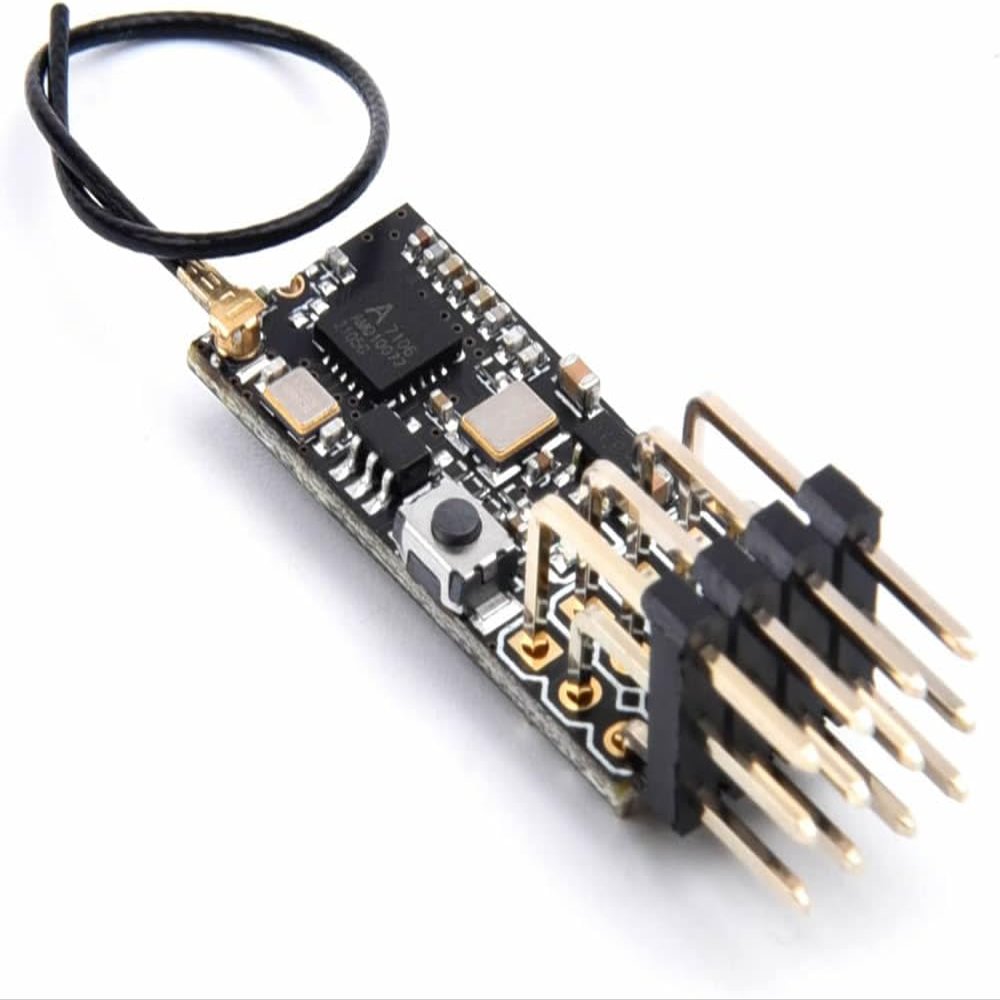

hobbyant FS2A 4CH Receiver AFHDS 2A Mini RC Receiver PWM Output for Flysky i6 i6X i6S Transmitter Remote Controller

Description

• FS2A 4CH AFHDS 2A Mini Receiver.
• Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter
• Frequency range: 2.408-2.475GHZ
• Size: 11 * 25MM,micro receiver.
• The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Bind:
1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:
The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Channels:4CH
Output signal:PWM
Frequency range:2.408-2.475GHZ
Band width:135
Receiver sensitivity:-92DBM
2.4G mode:AFHDS 2A
Failfe:Yes
Supply voltage:3.3-10V
Distance:400+ meters
Working current:20MA
Size:11 * 25MM
Weight: 0.9 grams
Support:FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter
