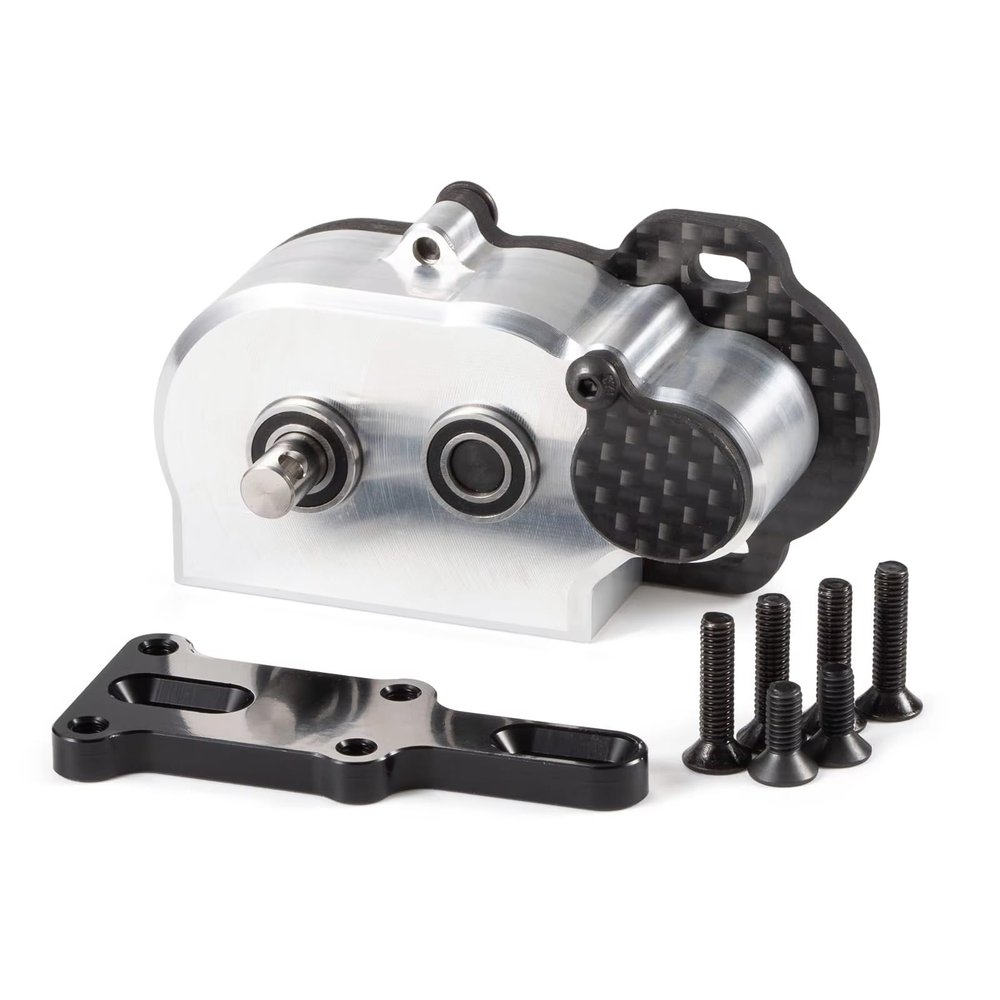

HooCrawler 1/10 RC Straight Axle Transmission 48Pitch Tiny Gearbox with Slidable Shim Ultralight for 1/10 RC Crawler Straight Axle Axial AR44 AR45 Vanquish F9 F10 LCG Chassis (Silver)

Description

• Tiny Transmission for straight axles. CNC machined aluminum case and carbon motor plate.
• Hardened chromoly gears.Grade 5 Titanium 5mm output shaft. Low noise and ultra smooth.Motor bolt holes 25mm on center. Skid plate mounting holes 27.5mm on center (M3 threaded holes).
• Fully enclosed.Weight: 44g, Ultra-Small and Ultra-Light. Comes with an aluminum slipper pad based on the Axial 3 gear type transmission mounting holes.44T Spur Gear (48 pitch).
• HooCrawler Transmission exclusively designed for 1/10 RC crawler straight axles includes Axial AR44 AR45 Vanquish F9 F10 LCG Chassis.
• If you are using a portal axle, we recommend that you purchase another dedicated gearbox in the store. Please distinguish before purchasing. Please feel free to contact us with any questions!

Feature:
Tiny Transmission for straight axles.
CNC machined aluminum case and carbon motor plate.
Hardened chromoly gears.
Grade 5 Titanium 5mm output shaft.
Fully enclosed.
Weight: 44g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG).
Low noise and ultra smooth.
Motor bolt holes 25mm on center. Skid plate mounting holes 33mm on center (M3 threaded holes).
Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.
44T Spur Gear (48 pitch), 4:1 Low gear ratio.
Fits 48 Pitch pinions from 11T to 18T (Not Included)

Gear Ratio:
11T pinion: 16
12T pinion: 14.67
13T pinion: 13.54
14T pinion: 12.57
15T pinion: 11.73
16T pinion: 11
17T pinion: 10.35
18T pinion: 9.78

Included:
1x Tiny Transmission
1x Slidable Shim
1x Hardware Set
