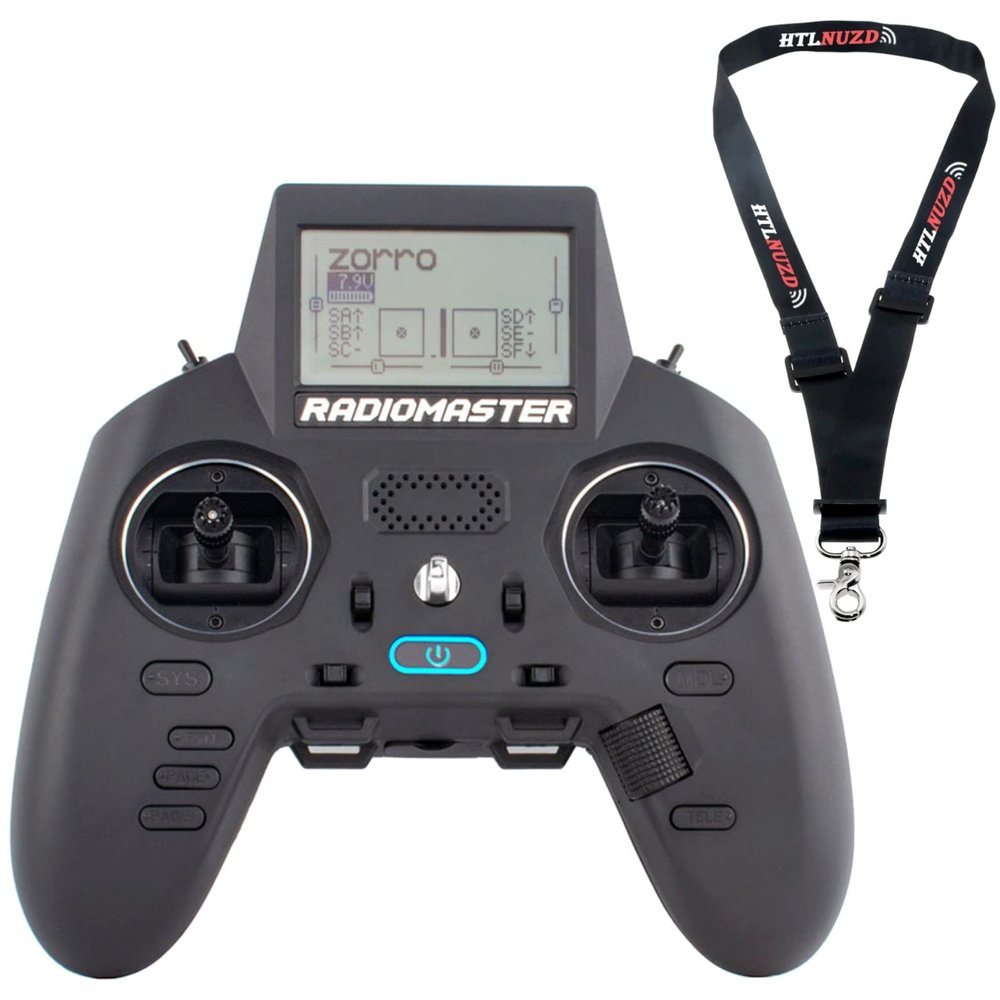

HTLNUZD CC2500 Hall Handle Remote Control 2.4GHz 16CH JP4in1/ ELRS TX High Frequency Configurations Transmitter Mode2 for FPV Drones (Zorro CC2500 Version)

Description

• External Module Bay Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
• Change between Mode 2 and Mode1Without Disassembly; Adjuststable HallGimbals--Turn clockwise to increase travel(Max.54), Counter-clockwise to decrease travel (Min.38).
• Charging18350 battery compartments, Built in USB-C Charging, Supports external 2S battery power supply, Foldable antenna, headphone audio output, DSC port,SD card slot,USB port. DIY attachment points,Aux buttons.
• Ergonomic designlarge bright LCD screen in the perfect viewing position, Improved metal roller offer precise control, handle comfortable and easy to grip,Replaceable/upgradable non-slip Soft rubber/Leather grips.
• System Configurationrear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, external power source input and a host of RF options the RadioMaster is set to change the game once again.

The Latest radio controller features an oversized LCD
display and officially supports OpenTX and EDGETX Firmware.
It can be charged via USB-C and uses an external 2S power supply.
The external module supports both TBS and ELRS.
Specification:
Physical dimensions:170*159*108mm
Weight:650g
Operating frequency:2.400GHz-2.480GHz
Internal RF Options:CC2500 multi-protocol
Supported protocols :Module dependent
RF power:CC2500: 20dBm max.
Antenna gain:Folding 2db
Operational current:160mA@8.4V
Operational voltage:6.6-8.4v DC
Control distance:> 2km @ 20dbm
Operating system:OpenTX / EdgeTX Compatible
Control channels:Maximum 16 (Rx dependent)
Display :128*64 Monochrome LCD
Charging :Built in USB-C Charging
Gimbal:Hall-effect
Module bay :Nano size
(Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method:Via USB or SD card (SD Not included)
Package configuration:
1X CC2500 Version Or CC2500 w/ Batteries
1X Box
2xBattery Cell
1XBrochures
1X ELRS Version
1X Box
1XBrochures
