HTLNUZD F405 V2 F4 V3S Flight Control FC & BLS-50A/65A 4in1 ESC Stack Compatible with FPV Drone Quadcopter, Alternative to Speedybee F405 (65A V2 ESC)

Description

• POWERFUL PERFORMANCE: STM32 F405 MCU, MPU6500 gyro, Dshot support. Perfect for 5-15" FPV drones. Betaflight compatible for smooth control
• VERSATILE COMPATIBILITY: Works with ELRS/CRSF/SBUS/IBUS receivers. 5V3A/9V3A BEC, MicroSD black box & BMP280 baro for diverse setups
• HIGH-EFFICIENCY ESC (50A/65A): 2-6S input, BLHELI-S firmware. 50A (55A peak)/65A (70A peak) for robust power
• EASY INSTALLATION: 36x36mm FC, 41x39x5mm ESC. 30.5x30.5mm mounting holes, 3mm aperture with shock balls
• RELIABLE DESIGN: 13g FC, 15g ESC. Car video filter (5V to VTX/camera). Ideal for traversing aircraft & quadcopters

GTSKYTENRC F405 V2 Flight Control FC
Project Name: F405 V2 Flight Controller;
Size: 36x36mm;
Weight: 13g;
Installation hole: 30.5x30.5mm;
STM32 F405 microcontroller
Dshot support
Drag and drop OSD configured through Betaflight
Gyroscope: MPU6500
Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc
MicroSD card black box
Baro (BMP280)
BEC: 5V3A/9V3A
Car video filter (only 5V to VTX and camera)
Suitable models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
Please note: The F405 flight controller only supports Betaflight software and does not support INAV firmware

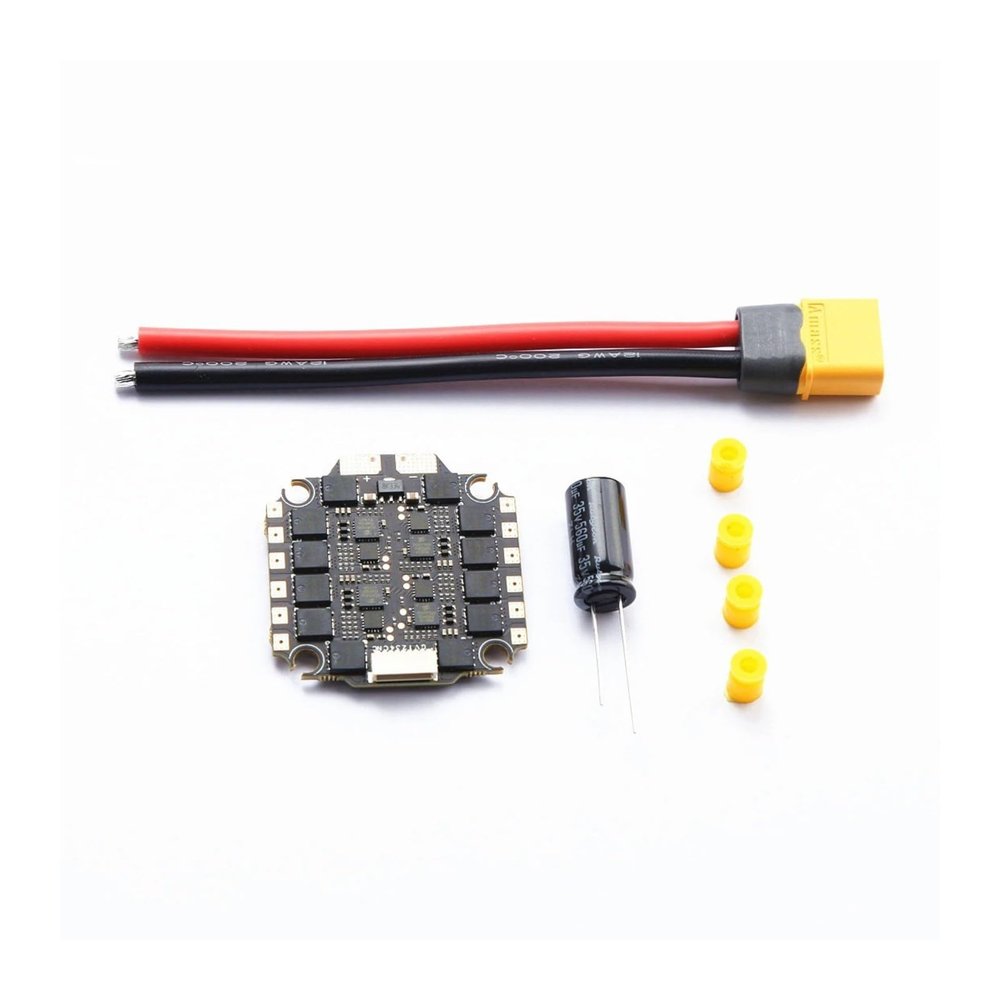

GTSKYTENRC Tracker 50A V2 4in1 ESC HV 2-6S
Size: 41*39*5mm;
Aperture: 30.5*30.5mm (after installing the shock absorber ball, the aperture is 3mm);
Firmware: BLHELI-S;
Weight: 15g;
Input voltage: LIPO 2-6S;
Continuous current: 50A;
Maximum current: 55A (10 seconds);
Processor: EF8BB21;
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW; Current sensor: supports;
GTSKYTENRC Tracker 65A V2 4in1 ESC HV 2-6S
Size: 41*39*5mm
Aperture: 30.5*30.5mm (after installing the shock absorber ball, the aperture is 3mm)
Firmware: BLHELI-S
Weight: 15g
Input voltage: LIPO 2-6S
Continuous current: 65A
Maximum current: 70A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
