HTLNUZD Radiomaster GX12 ExpressLRS Dual-Band Gemini Xross Band Radio Controller with 3D Digital Hall Gimbal 2.4GHz/915MHz for FPV Drones RC Aircraft (GX12 M2-Multi-Stand)

Description

• Dual-Band Powerhouse1W Gemini Xrossband ExpressLRS transmitters for extended range/reliability, Foldable dual-band antennas (2.4GHz/900MHz) for portability
• Precision CNC HallGimbals: 3D digital aluminum gimbals with 1000Hz EdgeTX-synced response, Foldable sticks for compact storage
• Modular Customization:Removable switch panels + programmable 6-position switches with RGB indicators. SMA ports for antenna flexibility
• Smart Connectivity & Display: USB-C for charging/SIM/firmware/flash access (512MB built-in) Highz-contrast OLED screen
• Extreme-Duty Design: Dual 1W cooling system prevents overheating, PCB nano-coating + rugged plastics for all-weather durability

Introducing the GX12 Radio Controller, a groundbreaking fusion of cutting-edge technology
from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (GEM-X),
allowing for simultaneous transmission on both 2.4GHz and 915MHz, ensuring unmatched interference rejection.
Specifications:
Color: Black
Size:183*148*78mm
Weight: 573g
Frequency: 2.400GHz and Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Antenna:Dual folding 2.4GHz/ Sub-G 900MHz Omni directional
RF:(Dual 1,000mW | Dual band XROSSBAND ELRS)
Voltage Range: 6.6 - 8.4V DC
Current: 390mA - 1000mA (Depending on Rf output)
Radio Firmware:EdgeTX (Transmitter) / ELRS (RF module)
Channels:Max 16 channels (Receiver dependent)
Battery:7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Charging:2S Smart Balance Charging
Connectivity: USB-C
Display:128*64 Monochrome OLED display
Gimbal:GX01 1000Hz, 3D Digital CNCHall Effect Gimbal with folding sticks
Gimbal Sticks:3mm
External Module: Nano / Crossfire compatible
Upgrade Method: USB / EdgeTX Companion PC software
Memory:512Mb Integrated Flash
Associated Products:
Radio Multi-stand *1
18650 Battery 3200mAh 3.7V *2
21700 5000mAh Battery *1
DBR4 Dual Band Xross Gemini ExpressLRS Receiver *1
XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver *1

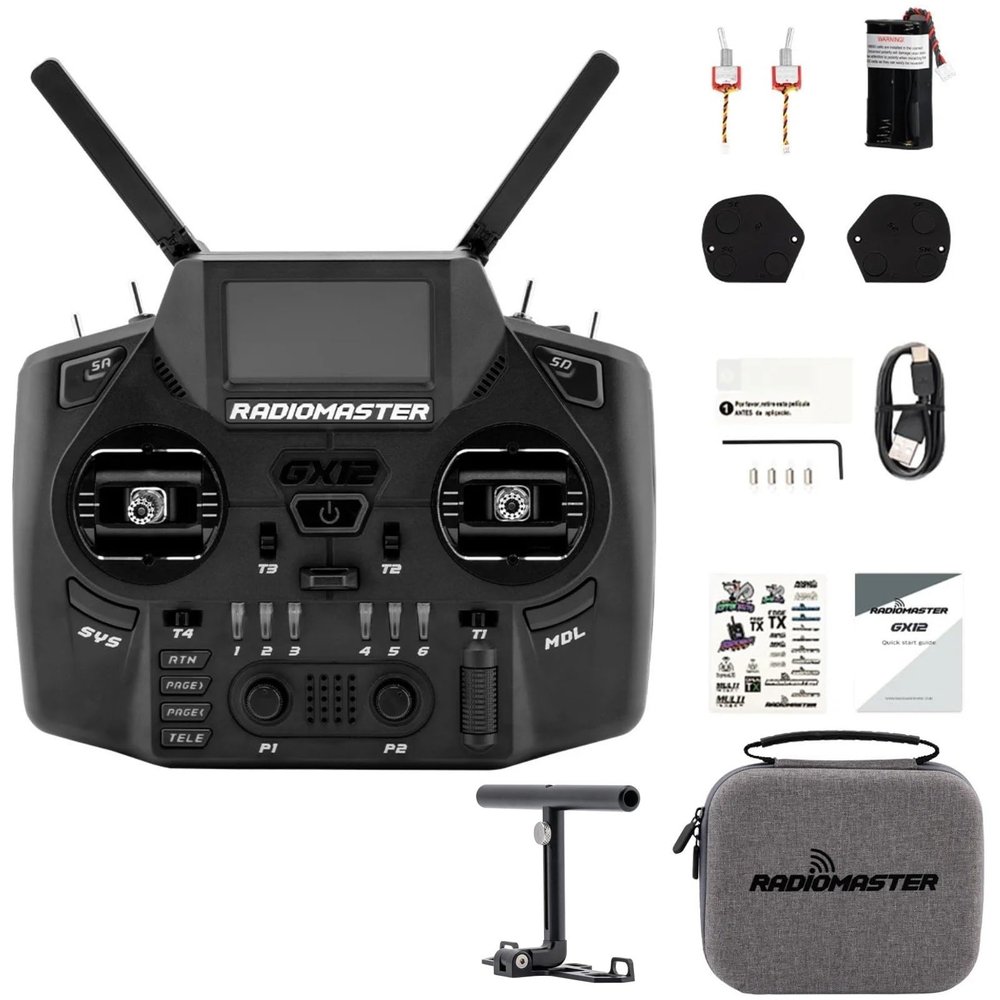

Package Includes
1 * GX12 Controller
1 * Signature Carry Case
1 * 18650 Battery Tray
2 * Replacement Switch Panels
6 * Switch Delete Plugs
1 * Type-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * High Tension Gimbals Springs
1 * 2 Position Switch
1 * Momentary Switch
1 * RadioMaster Sticker Set
1 * GX12 Manual
