HTLNUZD RadioMaster TX15 V5.0 16CH ELRS RC Transmitter - 3.5" IPS Touchscreen, Hall Gimbals, LR1121, Gyro, Mic, OpenTX/EdgeTX for FPV Mode 2 (Green-TX15)

Description

• POWERFUL PERFORMANCE: STM32 H7 chip for smooth EdgeTX, 4GB flash + MicroSD, instant model switching & fast script execution
• LONG-RANGE ELRS: LR1121 transceiver (2.4GHz/900MHz), smart battery, foldable antenna for strong signals & portability
• ADVANCED CONTROLS: Built-in gyro with TiltX/TiltY, swappable switches (momentary/two-position) for versatile use
• BRIGHT DISPLAY & DESIGN: 3.5" IPS touchscreen (600 nits), V5.0 hall gimbals in 6 colors, visible in sunlight
• ENHANCED FEATURES: USB-C charging, SIM connectivity, advanced cooling, easy firmware updates, reliable performance

Specifications
Item: TX15 Radio Controller
Size: 178*168*81mm
Weight: 605g (without battery)
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Gyro: Yes (ICM-42607-C)
MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 - 8.4V DC
Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent) Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650
Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard)
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules

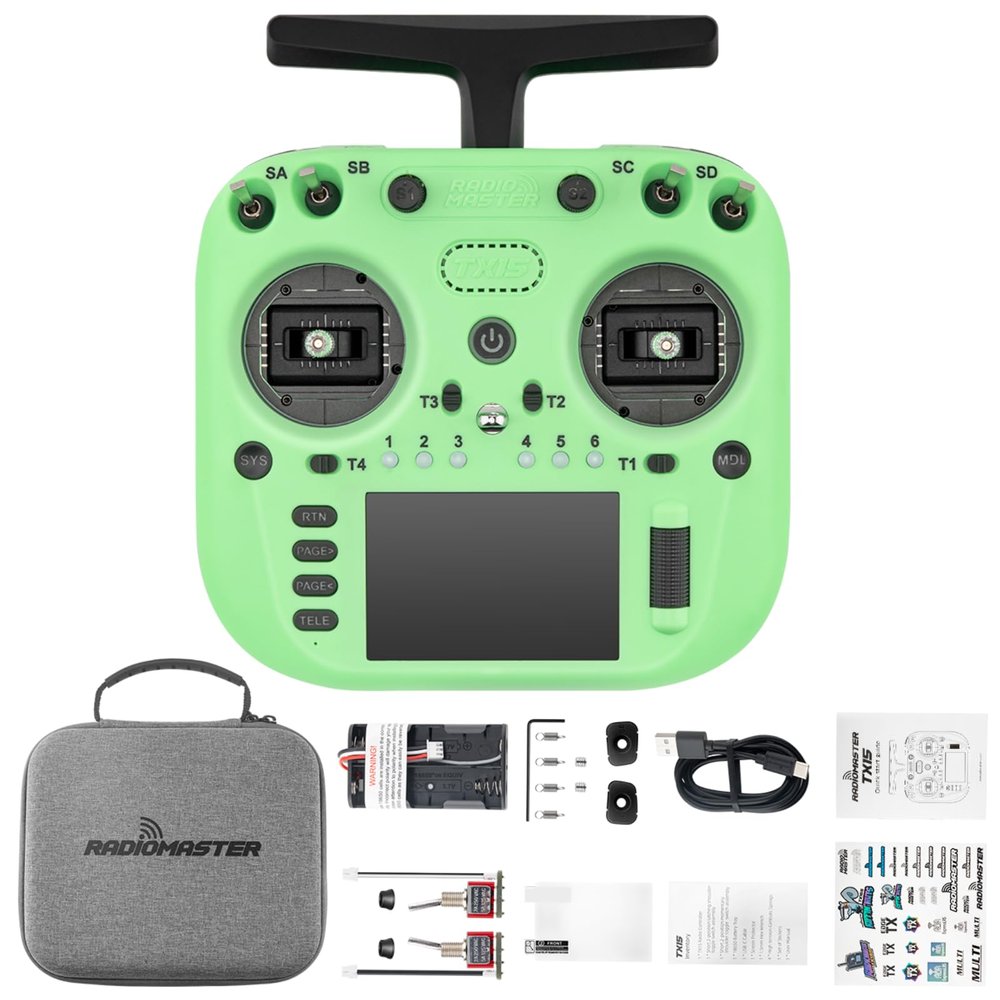

Package Includes
1 * TX15 Radio Controller
1 * Signature Carry Case
1 * Short 2-position Latching Shoulder Toggle Switch Assembly
1 * Short 2-position Momentary Shoulder Toggle Switch Assembly
1 * 18650 Battery Tray
1 * USB-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * High Tension Gimbals Springs
2 * Gimbal Stick Set Screw
1 * Stickers Set
1 * User Manual
1 * Inventory Card
