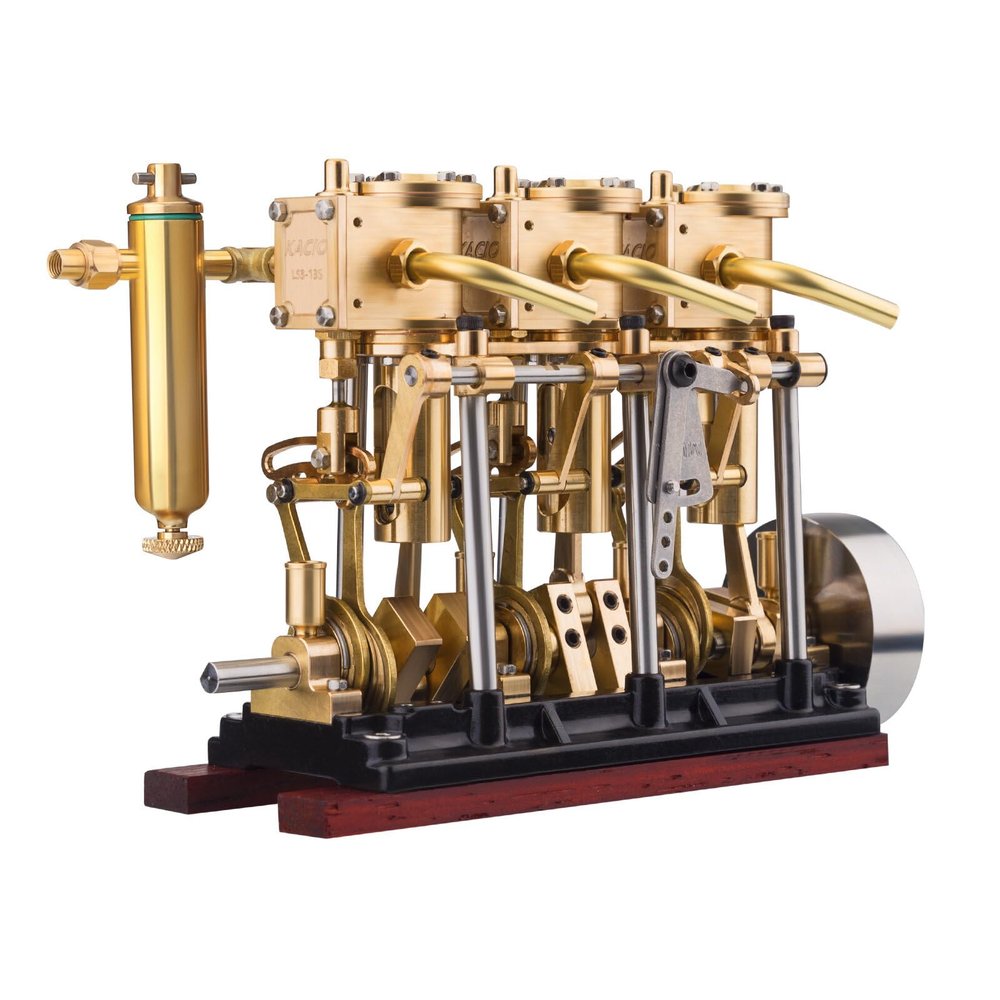

KACIO LS3-13S Vertical Three-Cylinder Reciprocating Steam Engine Model with Oil Cup Support Forward and Reverse Rotation Suitable for 80-120CM Steam Model Ship Boiler Not Included

Description

• Compact & High-Performance DesignThis three-cylinder marine steam engine features a refined, compact layout that delivers excellent performance while remaining cost-effective. Its smaller footprint enhances integration into model ships.
• Precision & Reliable CraftsmanshipPrecision-cast base with electrophoresis surface treatment and CNC-finished parts ensure durable, rust-resistant construction. Unique ladder frame design improves torsional strength and operational stability.
• Optimized Lubrication SystemEquipped with oil cup and piston connecting rod oil ports, every friction surface receives proper lubrication, ensuring smooth operation and long service life.
• Exceptional Collectors GiftThis meticulously crafted external combustion engine is both a functional mechanical model and a work of art. Ideal for birthdays, holidays, or any milestone, offering enthusiasts pride and hands-on enjoyment.
• Dedicated Support & AssistanceOur customer service team is ready to help with any missing components or assembly questions, ensuring a smooth and enjoyable building experience for hobbyists and collectors alike.

Specifications:

.Material: Copper
.Model: LS3-13S
.Size: base 48mm wide, 111mm long, 95mm high + 6mm thick sleepers
.Bore: 14.0mm
.Stroke: 12.0mm
.Spindle diameter: 5.0mm
.Spindle center ground height: 17.0mm
.Operating pressure: 0.05Mpa-0.8mpa
.Recommended air pressure: 0.2Mpa-0.6mpa
.Inlet interface thread: M6-0.5 1/4-40
.Product Dimensions: 11.1 x 4.8 x 10.1cm
.Product Weight: 930g
.Package Dimensions: 21 x 16 x 16cm
.Package Weight: 1200g
.Packing: Box
