Description
- Type: 2pcs MG90S Full Metal Gear Mini Micro Servo, Product Size: 22.8x12.2x28.5mm, Product Weight: 13.6g
- Operating Torque: 2.0KG/cm, Response Speed: 0.11s/60 Degree, Rotation Angle: Max 90 Degree, Working Voltage: 4.8V, Dead Band Width: 5 microseconds
- Wiring: Dark Gray: GND, Red: VCC 4.8-7.2V, Orange: Pulse Input, Interface Type: JR / FUTABA General
- Structure: Consist of Copper metal teeth, coreless motor, double ball bearing. Attached Accessories: Multi-arms, 30cm wire, fixing screws
- Application Range: 450 E-sky, swash plate servo, fixed wing, helicopters KT, fluttering, gliding, small robots, and other models of Mini Car, Mini Ship, Helicopter and Airplane.
Product Parameter:
Product Name: Metal Gear Micro Servos
Servo Type: Digital
Product Model: MG90S

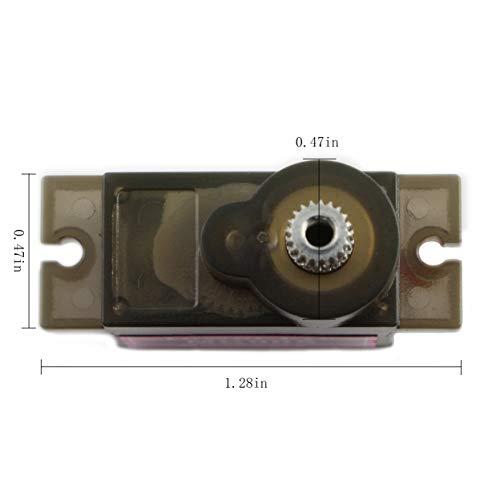

Product Size: 22.8x12.2x28.5mm
Product Weight: 13.6g
Operating Torque: 2.0KG/cm
Response Speed: 0.11s/60 Degree
Rotation Angle: Max 90 Degree
Working Voltage: 4.8V
Dead Band Width: 5 microseconds
Operating Temperature: 0 to 55 Degree Celsius
Interface Type: JR / FUTABA General
Structural Material: Copper metal teeth, coreless motor, double ball bearing
Accessories: Multi-arm, 30cm wire, fixing screws
Application Range: 450 E-sky, swash plate servo, fixed wing, helicopters KT, fluttering, gliding, small robots, and other models of Mini Car, Mini Ship, Helicopter and Airplane.
Wiring:
Dark Gray: GND
Red: VCC 4.8-7.2V
Orange: Pulse Input
Shipping list:
2x MG90S Full Metal Gear Mini Micro Servo
