Description
- Motor diameter: 24 MM Motor height: 30.5 MM (not including front and rear bearing sleeves)
- Output shaft: 2.0 MM Output shaft length: 8MM
- Weight: about 45g
- Sturdy and portable, high efficiency, which is not easy to broke.
- Easy to use and install, reduce trouble.
Tested with a mobile phone charger, it is stable, and the sound is very light! Very good small motor, it is very good to make a small car! The speed is not very high, but for a small car, it is still a very good choice.
Model: 370

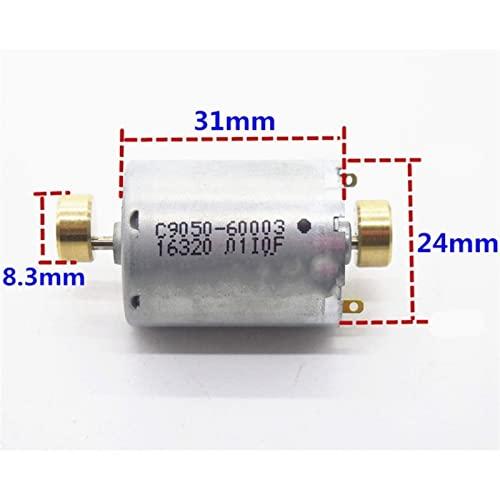

Motor diameter: 24 MM

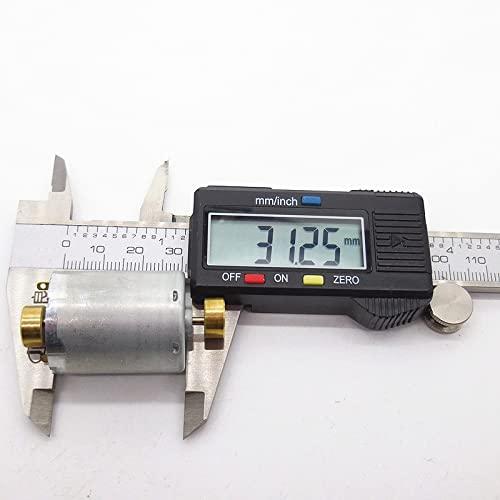

Motor height: 30.5 MM (not including front and rear bearing sleeves)
Output shaft: 2.0 MM
Output shaft length: 8MM
Weight: about 45g
Voltage: 3-12V
Speed: about 12V 8000 rpm
M3 screw hole
When the power supply is 6V, about 4000 revolutions per minute, the no-load current is 0.04A, and the locked-rotor current is 0.64A
When the power supply is 12V, about 8000 revolutions per minute, the no-load current is 0.06A, and the locked-rotor current is 0.91A
