Description
- No-load current: 100mA
- Can be customized: shaft length, speed and voltage can be customized
- Cable length: 142mm, Motor weight: 93g
- Sturdy and portable, high efficiency, which is not easy to broke.
- Easy to use and install, reduce trouble.

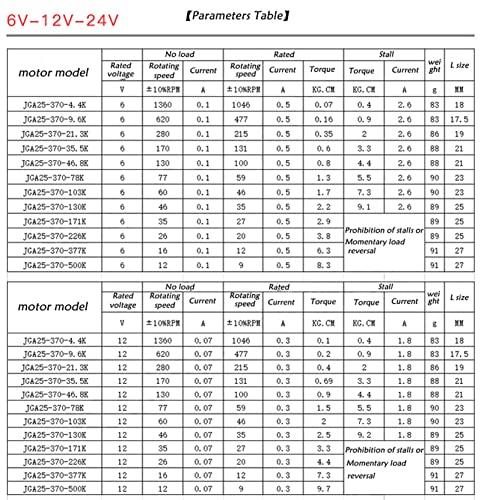

Model: JGA25-370
No-load speed: 6-2000 rpm
Type: encoder geared motor
Motor size: 5024mm (without shaft)
Output shaft diameter: 4MM
Power: 3w
Whether to adjust the speed: adjustable speed
Rated voltage: 6v 12v 24V
Whether forward and reverse: can be forward and reverse
No-load current: 100mA
Can be customized: shaft length, speed and voltage can be customized
Cable length: 142mm
Motor weight: 93g
Wiring
Red: Motor power + (replacement can control the forward and reverse rotation of the motor)
Black: coding power supply-negative (positive and negative poles can not be connected to 3.3-5V wrong)
Yellow: signal feedback (11 signals for one motor revolution)
Green: Signal feedback (11 signals for one motor revolution)
Blue: coding power supply + positive (positive and negative poles can not be connected wrongly 3.3-5V)
White: motor power-(exchange can control the motor forward and reverse)
