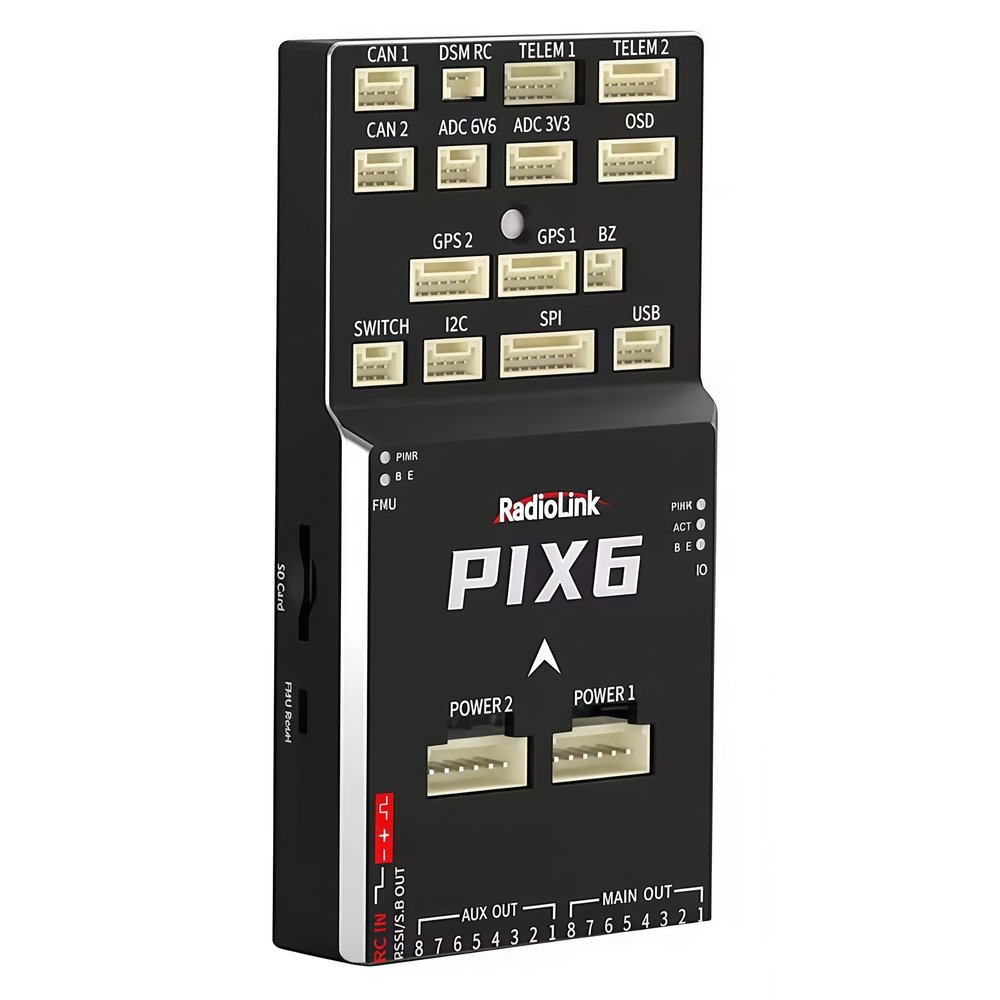

RadioLink PIX6 Open-Source Flight Controller, Dual-Gyro, Dual GPS, OSD Support for Airplane Car Boat, All Models Compatible (Multi-axis version)

Description

• Dual-gyro Built-in: Built-in BMI088 and ICM42688-P dual gyroscopes. When the main gyroscope is abnormal, it wil switch automatically to the secondary gyroscope, providing stronger safety protection for UAVs.
• Automatic Return, GeoFence Worry-free from Long-range Voyage: Support automatic return by switching, automatic return when the signal is lost or voltage is lower than settings. Geofence settings according to the drone management regulations promulgated by the country. It can fly within the prescribed flight airspace and fly law-abidingly.
• 16 Channels Output: Adaptable to the dual-copter, tri-copter, quadcopter, hexacopter, octocopter, Y6 copter, X8 copter, helicopters, airplanes, VTOL fixed-wing, cars, boats, submarines, radar trackers, mowers, agricultural vehicles, etc.
• Unique Automation Software Testing System Quality Assurance: The same Automation Software Testing System as PIXHAWK and Mini Pix helps realize test automation from the sensor to connection ports and interface. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every PIX6.

Specifications:
Dimension: 95.5*51.5*15mm
Weight: 50g(without wires)
USB Voltage: 5V0.3V
Operating Temperature: -30~85
Technical parameters : KV1100
Model Number : Radiolink PIX6
RC Parts & Accs : Flight Controller
Material : Composite Material

Vibration Damping by Software and Mechanical Achieve HigherPositioning Accurate At High-Speed: Based on the unique software vibration damping algorithm of Radiolink's PIXHAWK and Mini Pix, mechanical vibration damping technology is added to effectively filter out high-frequency vibrations, always guarantee the accuracy of sensor ata, and ensure that PIX6 achieves more accurate positioning even in high-speed mode. The helicopter can accurately lock the tail and fly stably even without installing the vibration reduction bracket.

OSD Module Integrated Real-time Gesture Visualization Display: PIX6 can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates" of the aircraft at any time during the first-view (FPV) flight of aircraft such as racing drones and long- distance fixed-wing aircraft. Achieve a more comfortable flying experience. eurtme ooplay oright imomooon soch as hight mode, disance, or s stars, longltode and lattude, vertcarspeed, maghenc deviation, curent tme, battery voltage, current, wind speed, return route, exact route, vibration status, direction, etc. Rich parameters display and thoughtful setup make the safer flight.

Cost-effective Solution Unlimited Application Potential: PIX6 works with Radiolink's latest multi-star multi-frequency centimeter-level accuracy RTK positioning system (including RTK GPS, base station, air system ground system, etc.), and is equipped with Radiolink's automatic driving control system that can realize the automatic driving of agricultural plant protection vehicles with four wheels turning 90 degrees on the spot and moving sideways, execute missions programmed automatically, designed for the agricultural vehicles has achieved the ideal operation effect and solve the industry problem of agricultural vehicles will pressing seedlings when changing lines. Help build a new form of smart agriculture.
