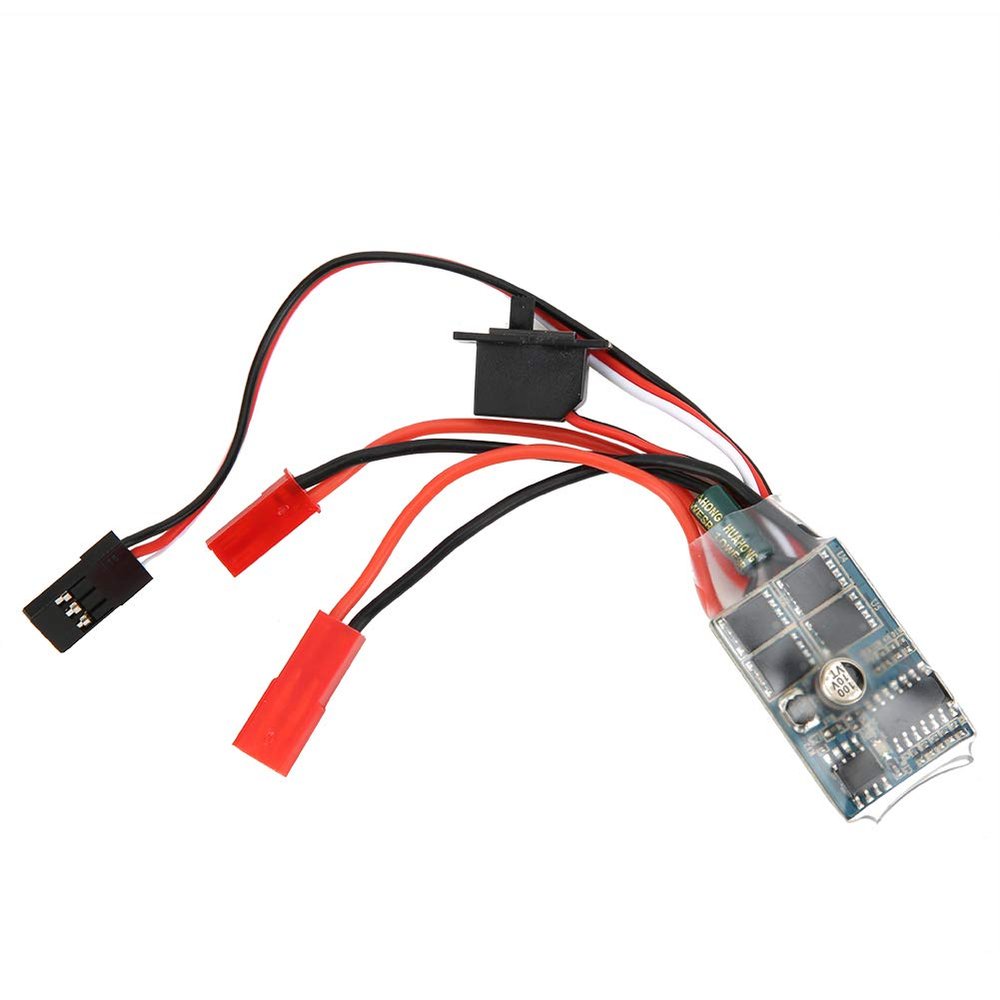

30A 4 8V ESC Two Way RC Brushed Motor Speed Controller for 1/16 1/18 1/24 Car Boat (with Brake), RC Brushed ESC, RC Brushed ESC, 30A 4 8V ESC Two Way RC Brushed Mo30A ESC Brush Speed Controller E

Description

• Bidirectional current control brush ESC , easy to install , long-lasting . Model car 30A 4 8V mini two way brushed ESC governor with br
• Compact size , light weight , small size , easy to carry .
• High for accurate PCB and digital programming circuit board . rake
• Made of high quality materials , safe and long-lasting to use .
• Suitable for 1/16 1/18 1/24 car boat . great RC car accessory .

Specification : Condition : 100 % Brand New
Item Type : RC Accessories
Type : Without Brake , With Brake (Optional)
Material : PCB
Size : Approx . 28 X 19mm / 1 . 1 x 0 . 7in
Forward : 30A
Instantaneous top : 40A
Returns : 20A
Brake : 40A
Function : Forward , Backward , Brake
UBEC Output : Voltage 5 . 7v , Current 1a (Power Receiver , Servo Power)
Voltage Support : 4 ~ 8v Can Be Used Directly On 2s Lithium Battery (7 . 4v) .
Wiring :
Battery (Must Pay Dividends)
Motor (Regardless Of Positive Or Negative)
Black Red And White Third Line > Receiver Ch2 (Usually Black On The Outside And White On The Sticker)
Regulation :
Esc Is Set In The Middle Of The Range , And New Controls Usually Require Fine Tuning The Throttle .
Esc Is Not Lit , It Is An Intermediate Value , And The Throttle Trimming Is Controlled By Th Trim .
Compatible : For 1/16 1/18 1/24 Car And Ships

Package List : 1 x Two Way Brush ESC

Note : 1 . Due to manual measurement , please allow 1 3mm error!2 . The color may be slightly different for different monitor displays . 3 . By default , the JST header has a switch .
