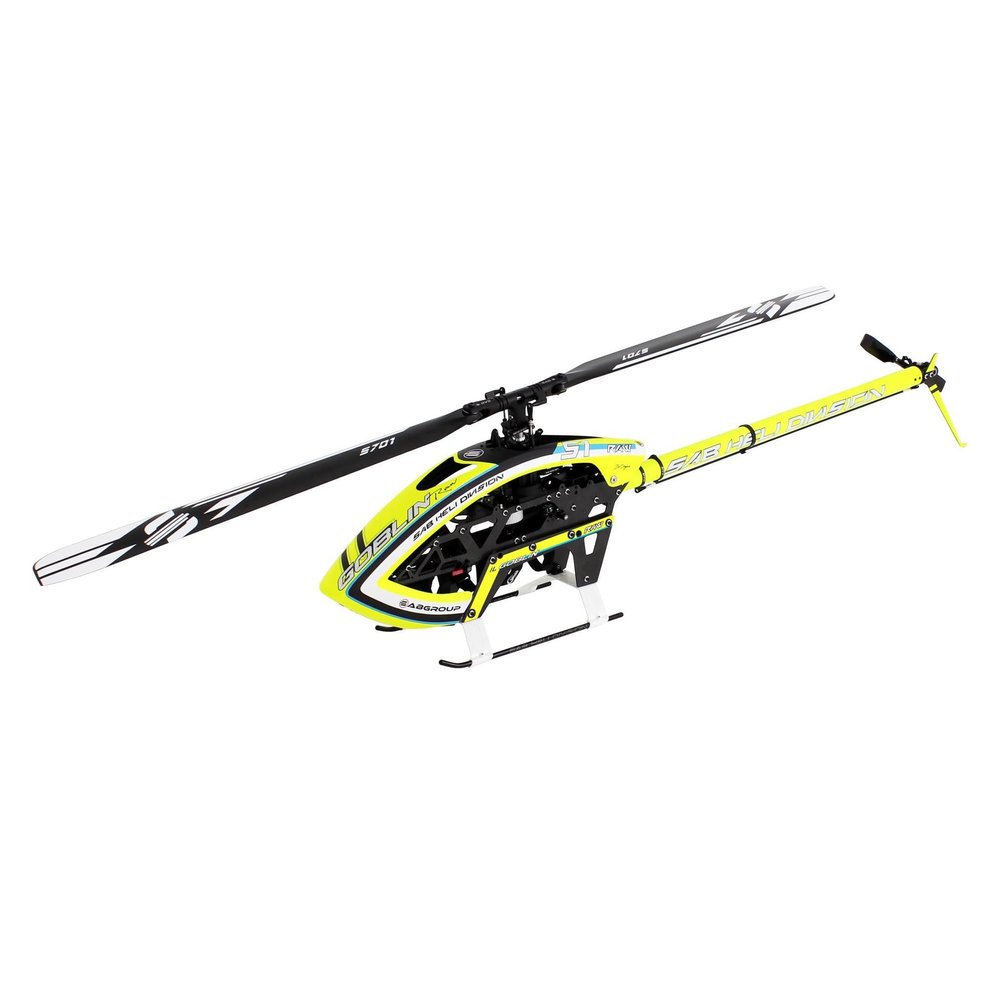

SAB ilGoblin RAW with Aluminum Tail Boom, Without Battery& Electronics - Electric Remote Control Helicopter, RC Helicopter SAB Goblin Unassembled Kits Size 700 for Adults

Description

• 15mm main shaft: The main shaft diameter has been increased to 15 mm for increased rigidity; Grip arms reference: New design that features new blade grip arms with an improved locking system.
• Wider mixing arms bearings zone: New design mixing arms, easy to assemble with out any play; Self center blades washers: Self-Centering Titanium washers that ensure automatic centering for greater precision.
• New main plastic ball linkage: New design plastic ball linkage which is stronger and last longer, make manternance time less; New swashplate geometry: New Swashplate geometry maximize the precision.
• New gear box: The new gearbox is lighter than previous models; New helical gears for increased durability and strength.
• Easy remove servos front and rear: A fast disassembly servo mount that allows for easier and faster maintenance on the servos; 3rd bearing support with stronger OWB: New One-Way system, redesigned for optimal performance; 3rd bearing support includes in the kit
• Tail belt tensioner: Includes a belt tensioning system with an indicator for optimal control; New tail push rod: With new tail push rod design, there is no more the need to CA/Epoxy them at all, just locktie and go fly.
• 8mm tail shaft: 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail; Tail shaft and tail HUB only 1 piece: The shaft and the Hub are made from a single part in order to have maximum precision.
• New battery locking system: New battery locking system make secure battery super easy.

ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.
*** Specifications:
AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
*** KIT Includes:
21T motor pulley (other pulley sizes available).
1 battery tray with straps.
S701 (700 mm main blades)
S105 (105 mm tail blades)
